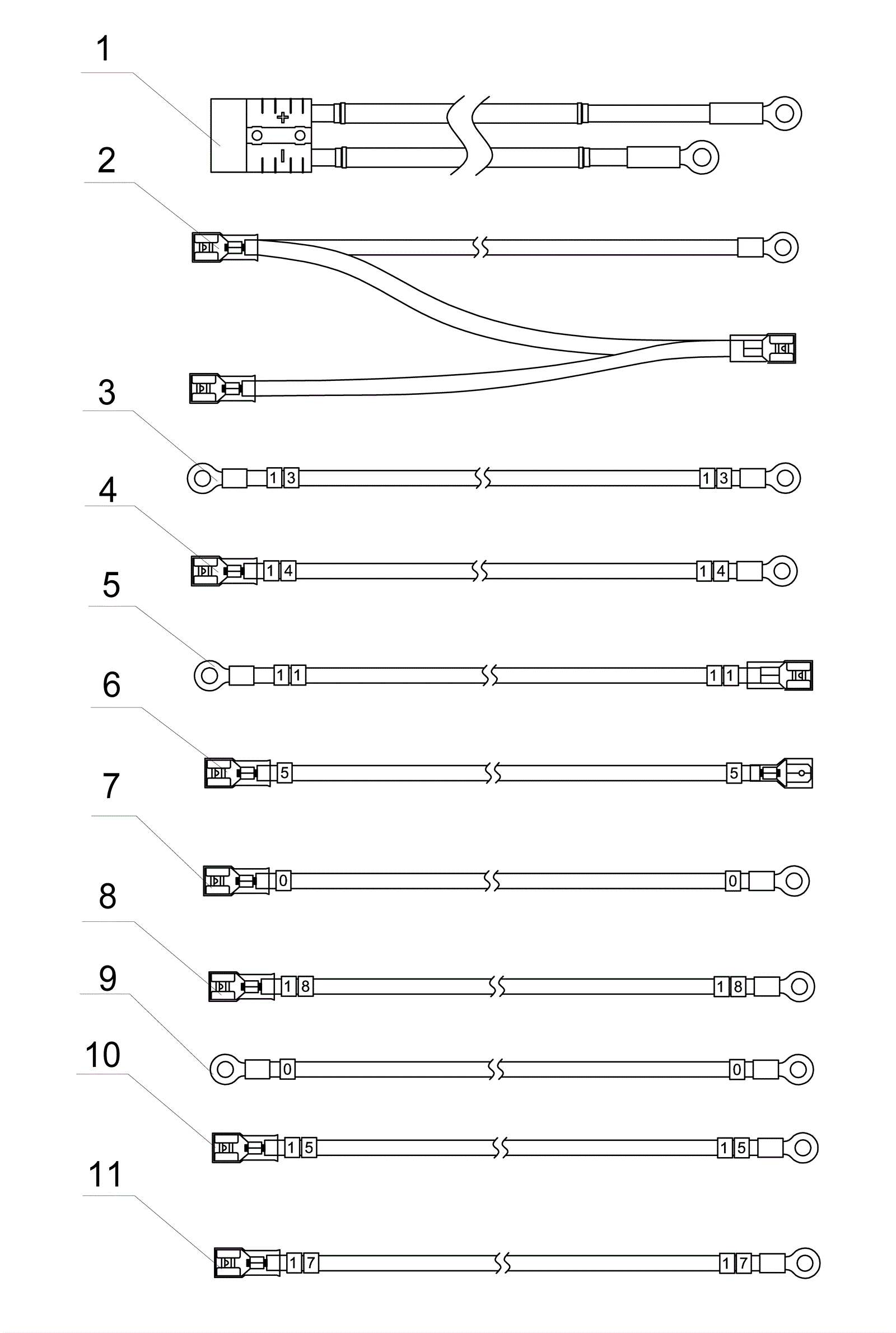

AS710R Wiring Assembly - Part 1

#PartDescriptionPriceReqNotesAvailability
1 240-2383 24V battery wire $119.48 1 usually ships 16-41 days
2 240-2384 Contactor wire $5.89 1 usually ships 16-41 days
3 240-2385 Main brush contact wire $5.00 1 usually ships 16-41 days
4 240-2386 Vacuum motor breaker wire $8.83 1 usually ships 16-41 days
5 240-2387 Brush motor contactor $8.83 1 usually ships 16-41 days
6 240-2388 Emergency stop wire $3.70 1 usually ships 16-41 days
7 240-2389 Negative connect pole wire $3.70 1 usually ships 16-41 days
8 240-2390 Main contactor to main breaker wire $8.83 1 usually ships 16-41 days
9 240-2391 Negative pole connect wire $8.83 1 usually ships 16-41 days
10 240-2392 Vacuum motor wire $3.70 1 usually ships 16-41 days
11 240-2393 Drive motor wire $5.00 1 usually ships 16-41 days
