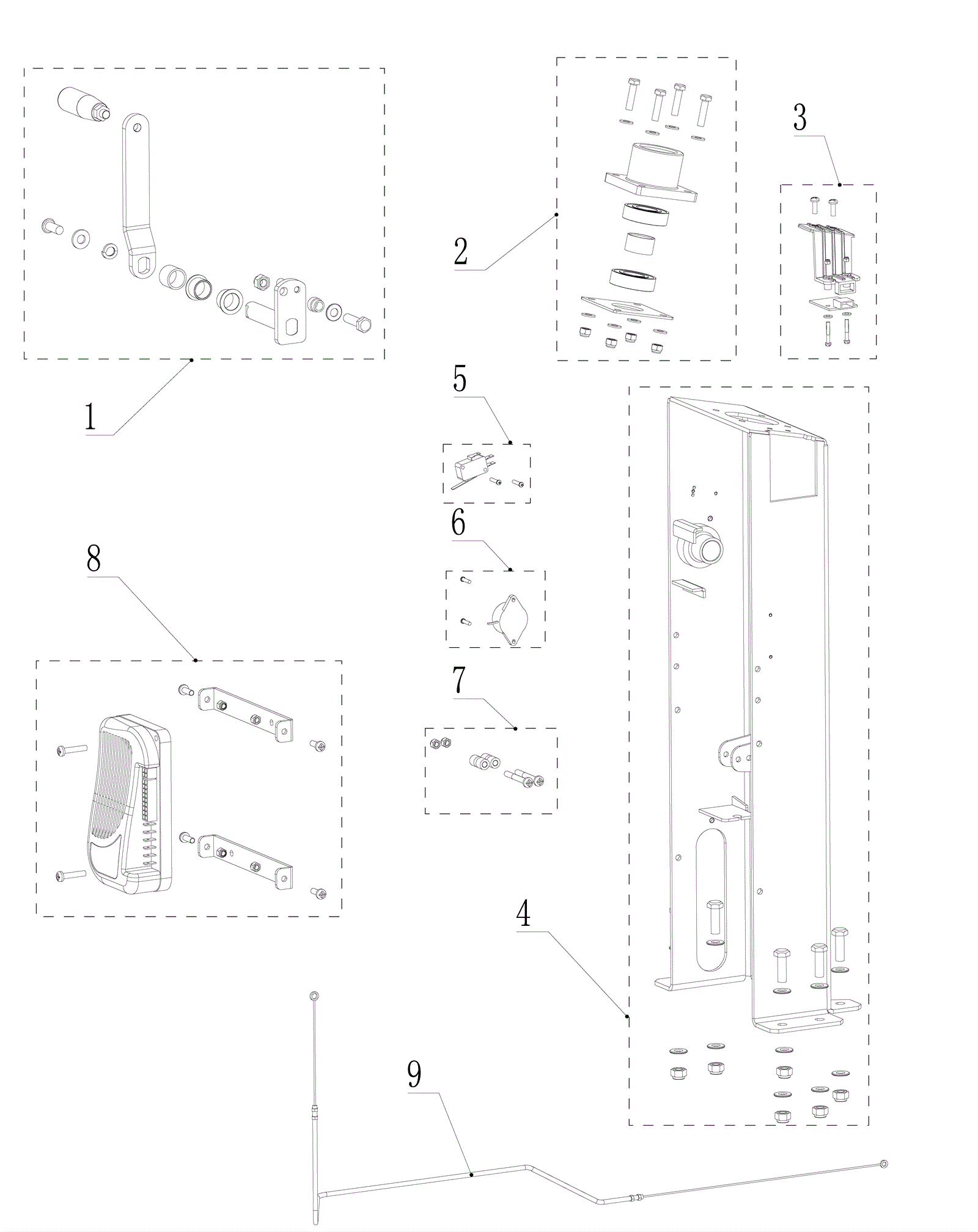

AS710R Front Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-2304 Squeegee lift handle kit $59.68 1 ships same day
2 240-2305 Bearing base kit $39.46 1 usually ships 16-41 days
3 240-2306 USB kit $42.65 1 usually ships 16-41 days
4 240-2307 Front frame kit $174.56 1 usually ships 16-41 days
5 240-2308 Squeegee switch kit $11.66 1 ships same day
6 240-2309 Horn kit $8.83 1 usually ships 16-41 days
7 240-2310 Squeegee lift guide wheel cable kit $8.83 1 usually ships 16-41 days
8 240-2311 Drive motor control kit $1,190.03 1 ships same day
9 240-2312 Squeegee lift cable $11.66 1 ships same day
