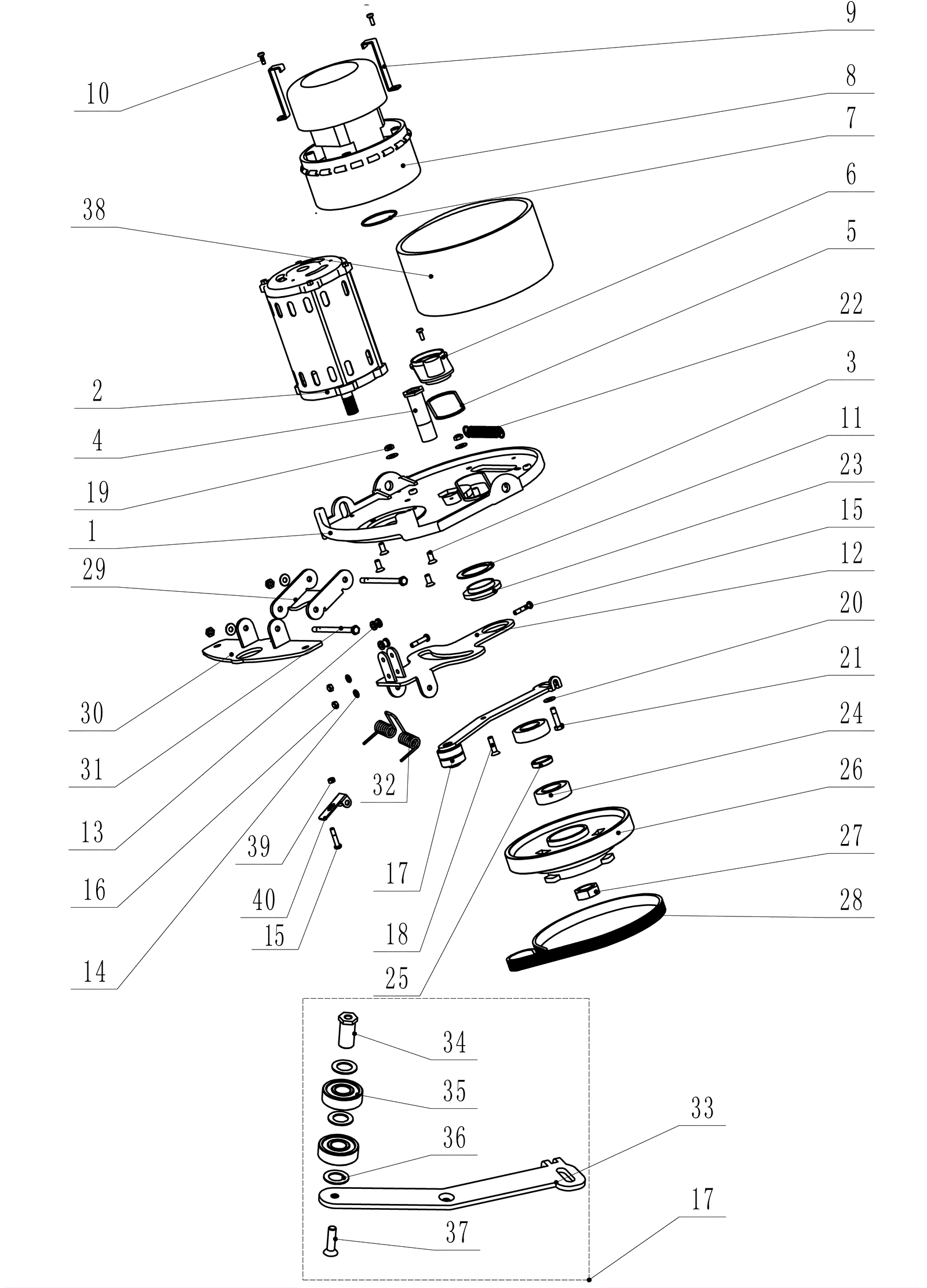

20HW28 Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-2199 Motor mount plate $72.63 1 usually ships 17-28 days
2 240-2200 Brush motor assembly $223.25 1 usually ships 17-28 days
3 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 4 ships same day
4 240-2201 Drive belt bolt $21.42 1 usually ships 17-28 days
5 240-2202 Large o-ring $9.98 1 usually ships 17-28 days
6 240-2203 Vacuum sealing cover $9.98 1 usually ships 17-28 days
7 240-2204 Small o-ring $9.98 1 ships same day
8 240-2131 Vacuum motor assembly $119.37 1 ships same day
9 240-2203 Vacuum sealing cover $9.98 2 usually ships 17-28 days
10 240-0393 Screw M4 x 12mm $6.36 3 ships same day
11 270-8550 Washer $8.26 1 usually ships 17-28 days
12 270-8551 Squeegee rotate plate $23.01 1 usually ships 17-28 days
13 270-8552 Squeegee guide wheel $6.66 2 usually ships 17-28 days
14 240-0643 Washer M5 plain $9.98 2 usually ships 17-28 days
15 999-1425 Screw M5-.8 x 25mm pan head stainless steel $1.01 3 ships same day
16 240-2170 Nut M5 lock $8.53 2 usually ships 18-27 days
17 240-2206 Belt adjustment kit $49.63 1 (includes 33-37) usually ships 17-28 days
18 272-8065 Screw M6 x 25 phillips stainless steel $9.98 1 usually ships 17-28 days
19 999-9131 Nut M6 x 1 nylon lock stainless steel $0.99 4 ships same day
20 240-2150 Washer $9.98 3 usually ships 17-28 days
21 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 1 ships same day
22 270-8553 Spring $6.66 1 usually ships 17-28 days
23 270-8554 Squeegee rotate bushing $21.42 1 usually ships 17-28 days
24 240-2207 Bearing $18.38 2 usually ships 17-28 days
25 270-8555 Bushing $9.98 1 usually ships 17-28 days
26 240-2208 Drive hub $24.60 1 usually ships 17-28 days
27 240-2209 Nut $5.50 1 usually ships 17-28 days
28 240-2210 Drive belt $19.67 1 ships same day
29 240-2211 Squeegee lift plate $13.17 1 usually ships 17-28 days
30 270-8556 Squeegee bracket plate $26.20 1 usually ships 17-28 days
31 240-2212 Squeegee lift rotate bolt $6.66 2 usually ships 17-28 days
32 240-2213 Torsion spring $13.17 1 usually ships 17-28 days
33 270-8557 Belt adjustment plate $11.57 1 usually ships 17-28 days
34 270-8558 Bearing bolt $6.66 1 usually ships 17-28 days
35 270-8559 6201 bearing (OBSOLETE) Call for price 2 (only available as part of the kit, item 017) usually ships 17-28 days
36 270-8560 Washer (OBSOLETE) $4.86 3 (only available as part of the kit, item 017) usually ships 17-28 days
37 270-8561 Screw M6 x 20mm (OBSOLETE) $4.86 1 (only available as part of the kit, item 017) usually ships 17-28 days
38 240-2214 Silencer sponge $9.98 1 usually ships 17-28 days
39 240-2057 Nut M5 $9.98 1 usually ships 17-28 days
40 240-2215 Pressure adjustment plate $13.17 1 usually ships 17-28 days
