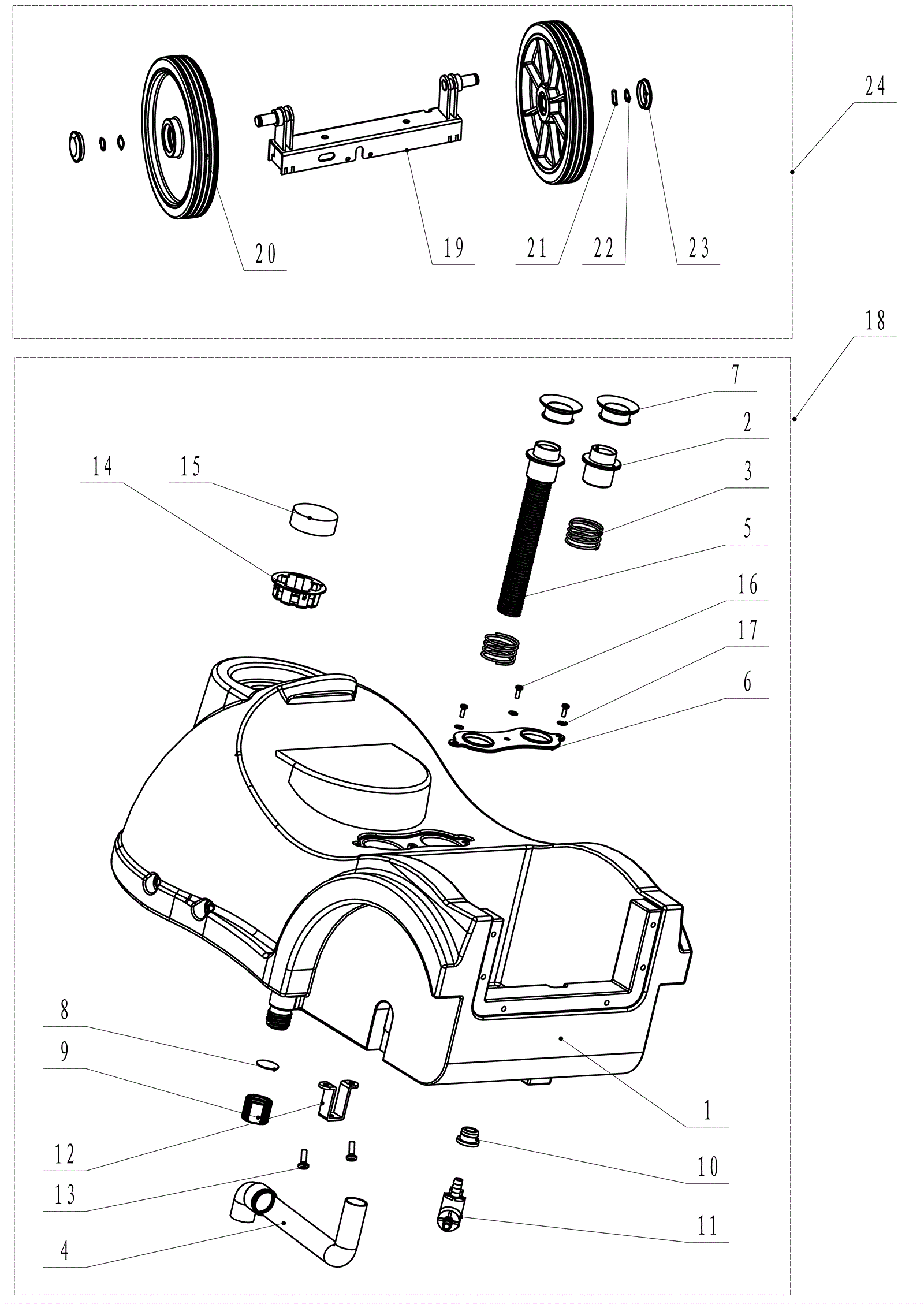

CROWN G15 Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1a 240-2182 Solution tank $462.80 1 (Viper) usually ships 16-41 days
1b 240-2132 Solution tank kit $487.31 1 (Diamond) usually ships 16-41 days
2 240-2183 Vacuum hose connector $9.98 1 usually ships 16-41 days
3 240-2184 Spring $9.71 2 usually ships 16-41 days
4 240-2185 Vacuum hose $11.26 1 ships same day
5 240-2186 Squeegee hose $11.26 1 usually ships 16-41 days
6 240-2045 Plastic plate $9.71 1 ships same day
7 240-2187 Rubber seal $9.71 2 ships same day
8 240-2188 Gasket $9.71 1 usually ships 16-41 days
9 240-2189 Drain cap $9.71 1 ships same day
10 240-2190 Rubber bushing $9.71 1 ships same day
11 272-9260 Elbow valve $31.83 1 usually ships 16-41 days
12 240-2191 Cable bracket $6.48 1 usually ships 16-41 days
13 240-0377 Screw M6 x 16mm $9.71 2 usually ships 16-41 days
14 240-2192 Water tank inlet $12.83 1 usually ships 16-41 days
15 240-2193 Water tank inlet filter $8.04 1 ships same day
16 240-0393 Screw M4 x 12mm $6.36 3 ships same day
17 240-0463 Washer M4 plain finish $9.71 3 usually ships 16-41 days
18 240-2132 Solution tank kit $487.31 1 (includes 1-17) usually ships 16-41 days
19 240-2194 Wheel axle $48.32 1 usually ships 16-41 days
20 240-2195 10 inch drive wheel $41.84 2 usually ships 16-41 days
21 240-2196 Wave washer $9.71 2 usually ships 16-41 days
22 240-2197 Snap spring $9.71 2 usually ships 16-41 days
23 240-2198 Wheel cap $9.71 2 usually ships 16-41 days
24 240-2134 Wheel and axle kit $158.05 1 (includes 19-23) usually ships 16-41 days
