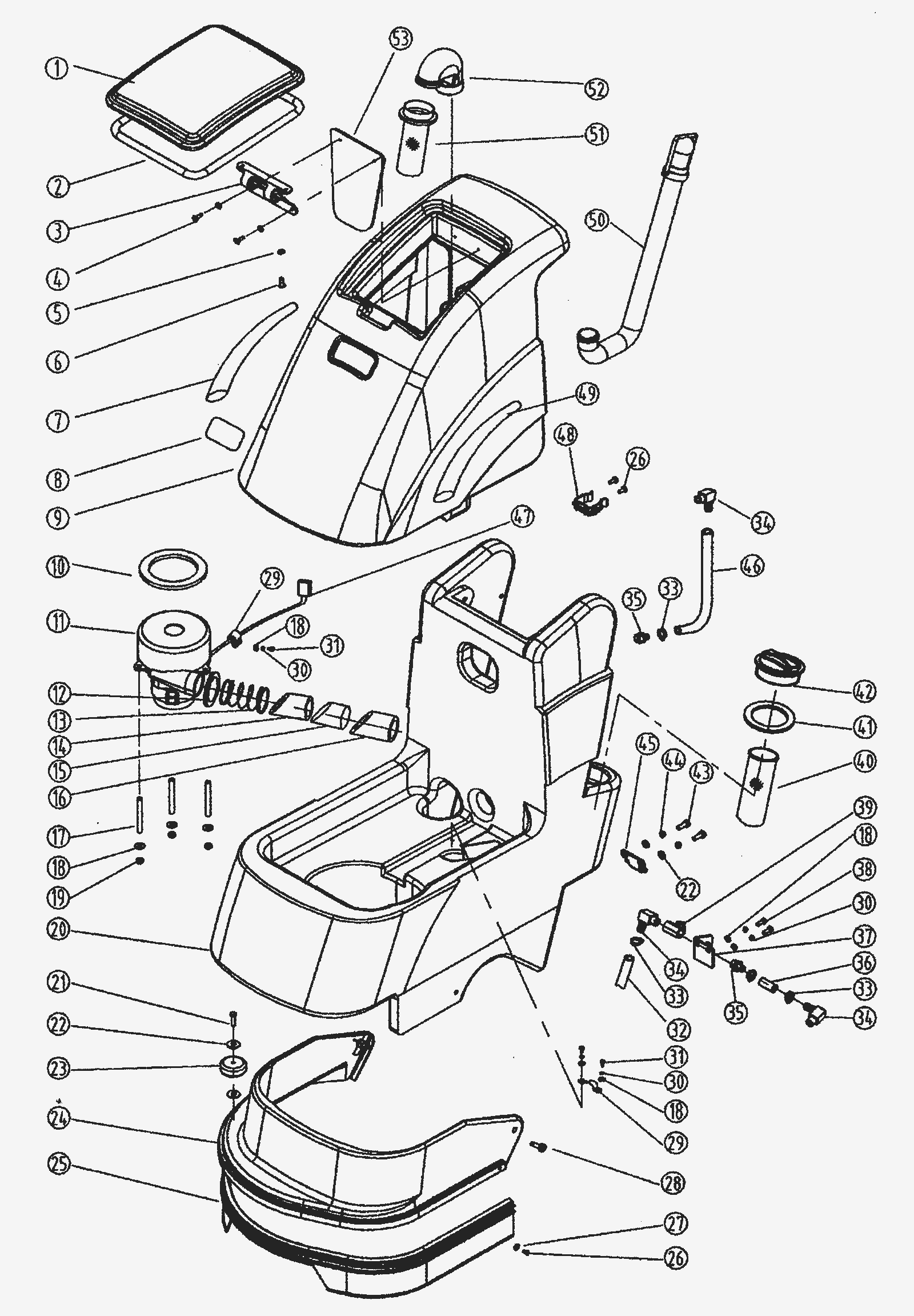

Recovery Tank Assembly

#PartDescription ReqNotesAvailability
1 240-0753 Recovery tank lid kit 1
2 240-1012 Recovery lid gasket 1
3 240-0464 Rubber hinge 1
4 240-0393 Screw M4 x 12mm 2
5 999-9089 Washer M4 flat stainless steel 4
6 240-0462 Screw M4 x 16mm self-tapping 2
7 N/A Not available 1 (Decal)
8 N/A Not available 1 (Decal)
9 N/A Not available 1 (Recovery tank)
10 240-0459 Vacuum motor gasket 1
11 240-1125 Vacuum motor 1
12 N/A Not available 3 (Tie)
13 240-5757 SPRING 1
14 240-5762 SPONGE EXHAUST 1
15 240-5764 COVER PLASTIC 1
16 240-5763 COVER HEAT RESISTANT (OBSOLETE) 1
17 240-0457 Stud 3
18 999-1261 Washer M6 flat stainless steel 7
19 240-0038 Nut M6 3
20 N/A Not available 1 (Solution tank)
21 240-0361 Bolt M8 x 40mm 1
22 999-9097 Washer M8 flat stainless steel 4
23 240-0468 Wheel 1
24 240-5733 SKIRT 1
25 240-5740 BUMPER 1
26 N/A Not available 4 (Screw)
27 N/A Not available 2 (Washer)
28 240-5761 SCREW SHOULDER .010 X 16 XM8 (OBSOLETE) 2
29 N/A Not available 1 (Clamp)
30 N/A Not available 4 (Washer)
31 240-0377 Screw M6 x 16mm 4
32 240-5760 HOSE INLET FILTER 1
33 240-0987 Clamp 4
34 240-0487 Solution tank elbow 2
35 240-5735 HOSE BARB 3
36 240-5759 HOSE 1
37 240-5741 MOUNTING PLATE BALL VALVE 1
38 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
39 240-5766 BALL VALVE 1
40 240-0799 Intake filter 1
41 240-5731 SEAL 1
42 240-5729 FILL 1
43 N/A Not available 2 (Bolt)
45 240-5765 SQUEEGEE CLAMP 1
46 240-5758 SOLUTION HOSE 1
47 240-5487 CORD HANDLE SJT 14/3C FOR 120V 1
48 240-0616 Drain hose clamp 1
49 N/A Not available 1 (Decal)
50 240-0188 Drain hose 1
51 240-0445 Float 1
52 N/A Not available 1 (Elbow)
53 240-5756 SCREEN (OBSOLETE) 1
