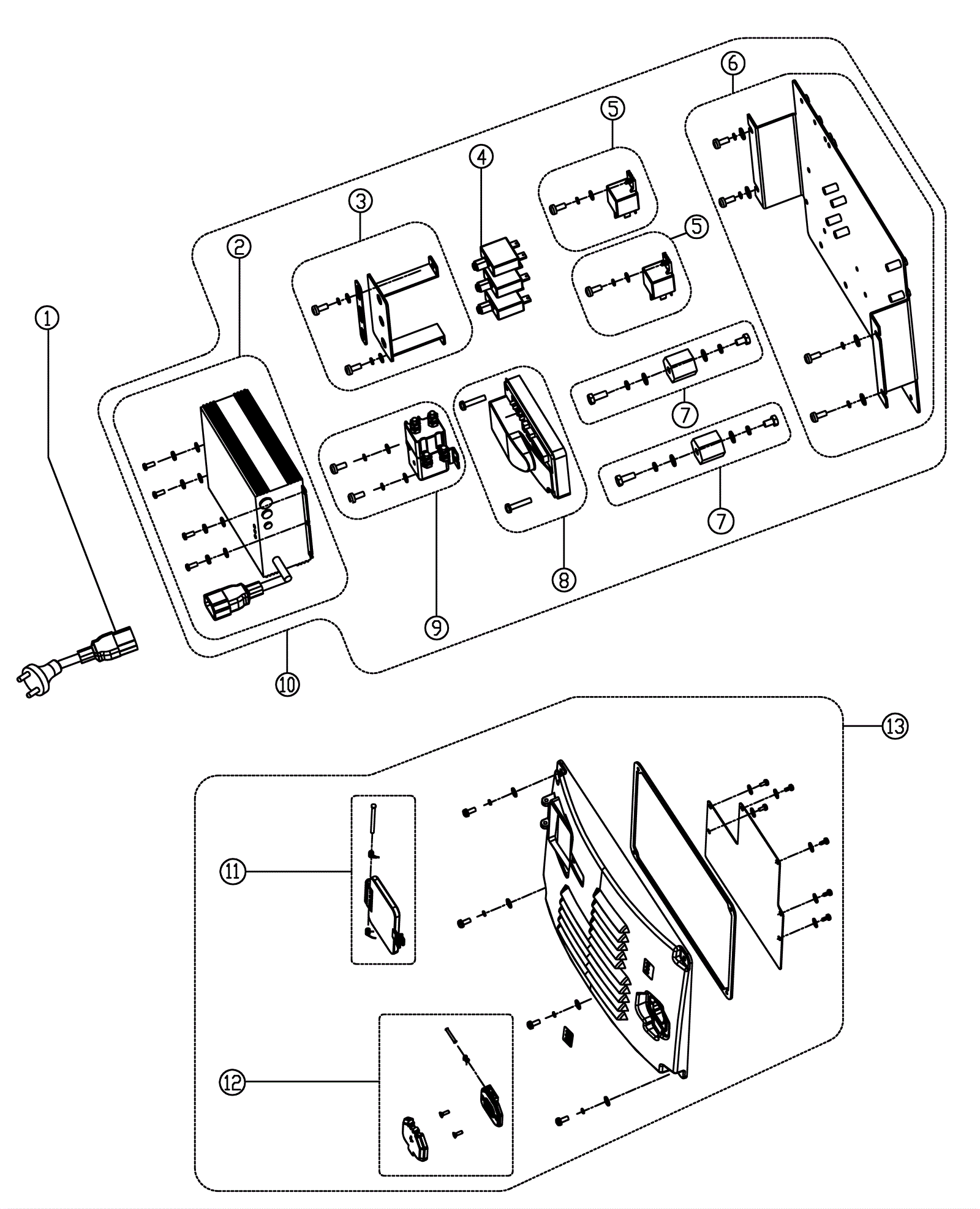

AS530R Electric Parts Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-6018 Charger cable $21.42 1 ships same day
2 240-1375 Charger kit $680.75 1 usually ships 17-28 days
3 240-1376 Bracket fix kit $27.92 1 usually ships 17-28 days
4 240-0882 30amp circuit breaker $21.42 3 usually ships 17-28 days
5 240-1377 Relay kit $36.32 2 usually ships 17-28 days
6 240-1378 Electric parts mounting plate $100.10 1 usually ships 17-28 days
7 240-1379 Wire pole connect kit $18.08 2 usually ships 17-28 days
8 240-1380 Drive motor control kit $565.70 1 usually ships 17-28 days
9 240-1381 Contactor kit $113.42 1 usually ships 17-28 days
10 240-1382 Electric parts mounting plate kit $1,191.94 1 (includes 2-9) usually ships 17-28 days
11 240-2328 Lid kit (clear) $9.98 1 usually ships 17-28 days
12 240-6312 CHARGER SOKET KIT $6.66 1 usually ships 17-28 days
13 240-1383 Electric box lid kit $67.42 1 (includes 11-12) usually ships 17-28 days
