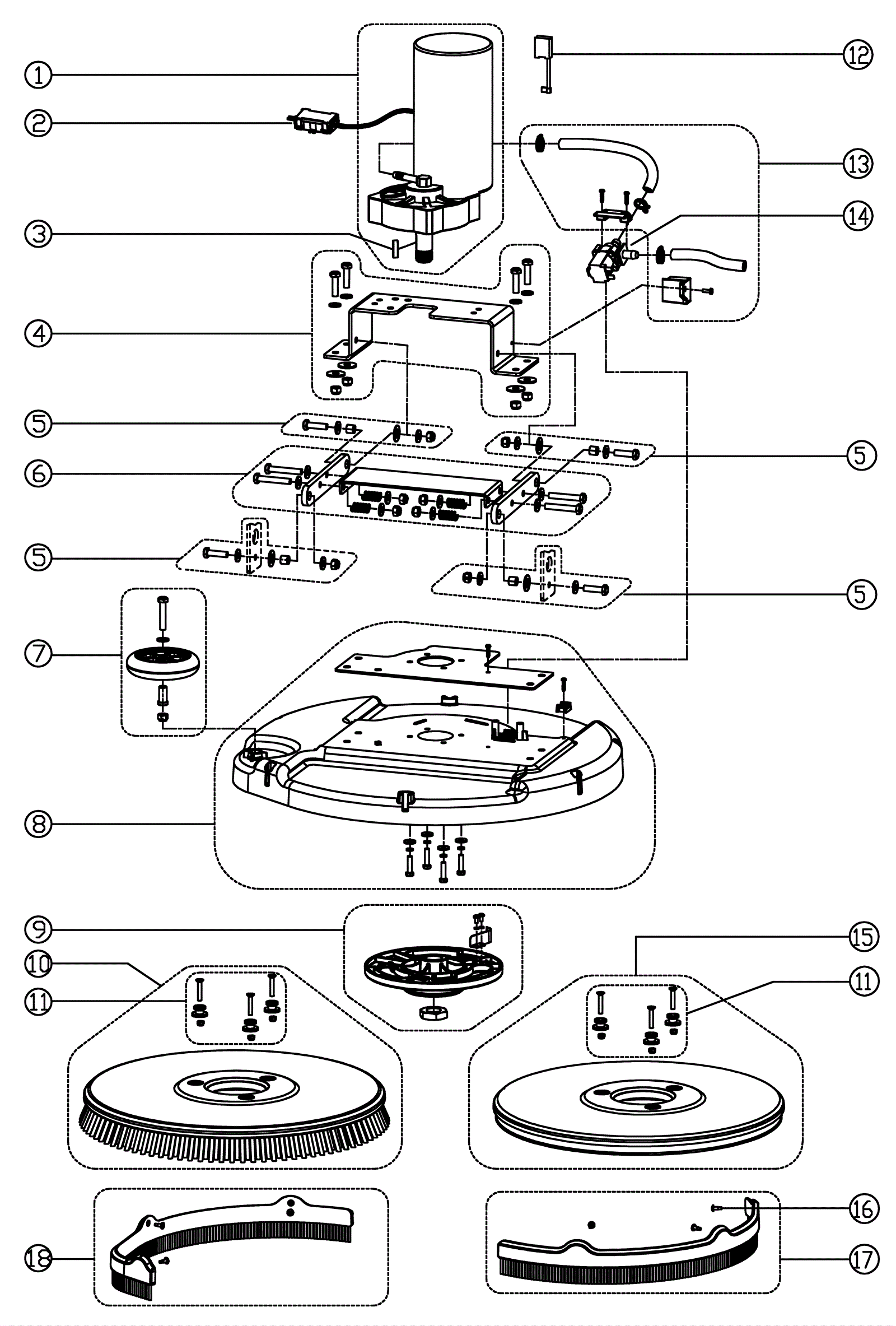

AS530R Brush Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-1349 Brush motor kit $639.22 1 usually ships 17-28 days
2 270-5021 Waterproof case $6.66 1 usually ships 17-28 days
3 240-1350 Shaft key $8.26 1 usually ships 17-28 days
4 240-1351 Brush lift plate kit $92.03 1 usually ships 17-28 days
5 240-1352 Brush lift arm connection kit $19.67 1 usually ships 17-28 days
6 240-1353 Brush lift arm kit $82.32 1 usually ships 17-28 days
7 240-1354 Bumper wheel kit $34.87 1 usually ships 17-28 days
8 240-1355 Brush deck kit $144.53 1 usually ships 17-28 days
9 240-1356 Plate drive kit $54.11 1 usually ships 17-28 days
10 240-1357 Brush kit $197.20 1 (includes 11) ships same day
11 240-1358 Brush screw kit $13.20 1 usually ships 17-28 days
12 240-5984 CARBON BRUSH KIT $5.39 4 usually ships 17-28 days
13 240-1359 Tube kit $17.33 1 usually ships 17-28 days
14 240-1360 Solenoid valve $16.50 1 usually ships 17-28 days
15 240-1361 20 inch pad driver $205.46 1 (includes 11) (optional) usually ships 17-28 days
16 240-1362 Screw step $9.98 6 usually ships 17-28 days
17 240-1363 Left hand brush skirt hardware kit $75.67 1 (includes 16) (optional) usually ships 17-28 days
18 240-1364 Right hand brush skirt hardware kit $82.32 1 (optional) usually ships 17-28 days
