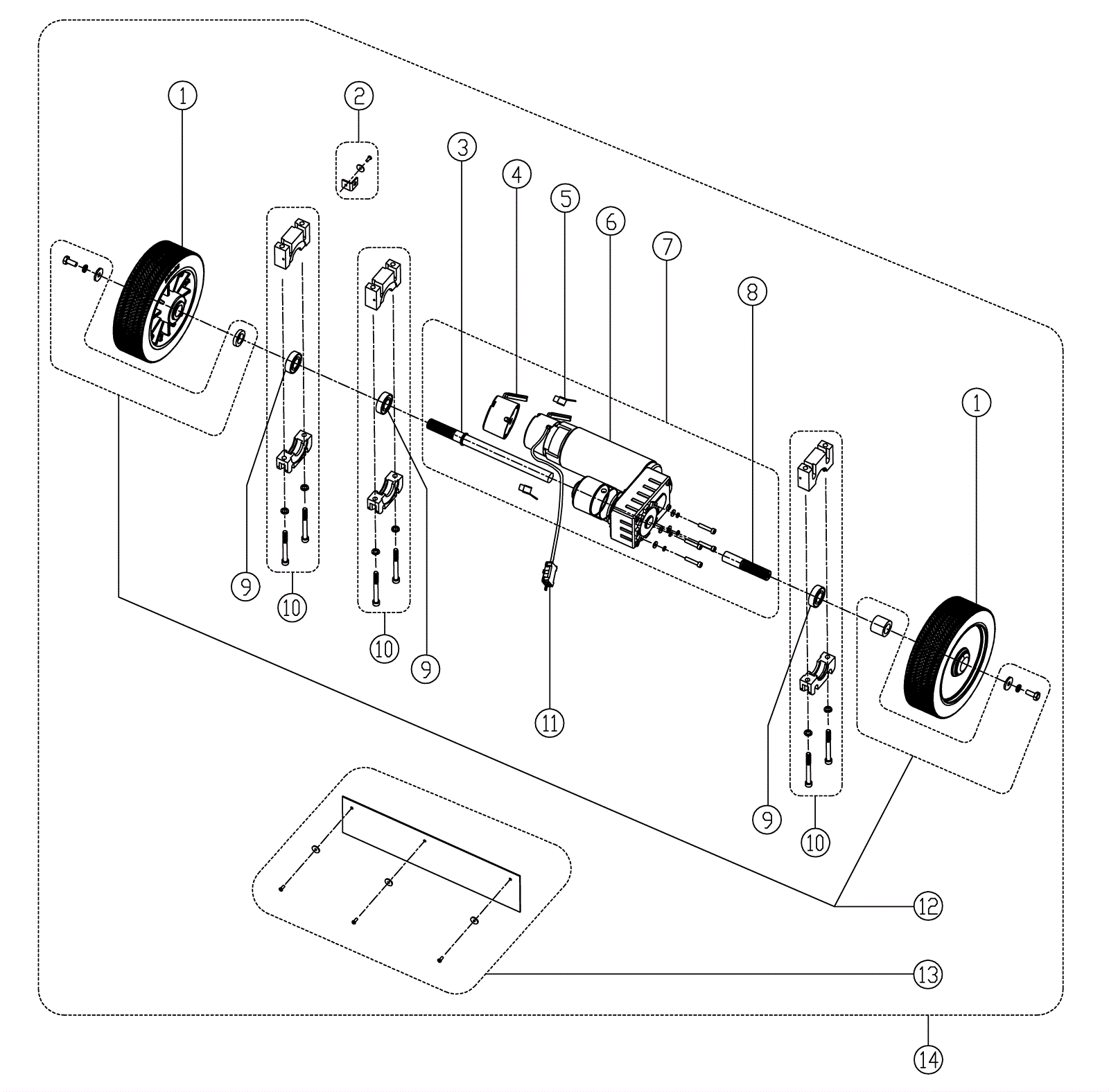

AS530R Drive Motor and Rear Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-1311 Rear wheel $251.52 2 usually ships 13-18 days
2 240-1312 Hook block kit $11.32 1 usually ships 13-18 days
3 240-1313 Motor shaft $70.79 1 (long) usually ships 13-18 days
4 240-1314 Motor brake kit $279.42 1 usually ships 13-18 days
5 240-1315 Carbon brush $9.37 2 usually ships 13-18 days
6 240-1316 Motor traction $1,301.49 1 usually ships 13-18 days
7 240-1317 Motor traction kit $1,617.81 1 (includes 3-6, 7-8, and 11) usually ships 13-18 days
8 240-1318 Motor shaft $58.11 1 (short) usually ships 13-18 days
9 240-0219 Bearing $35.28 3 ships same day
10 240-1319 Traction mount kit $145.62 3 usually ships 13-18 days
11 270-5021 Waterproof case $7.56 1 usually ships 13-18 days
12 240-1321 Rear wheel fix kit $41.22 1 usually ships 13-18 days
13 240-1322 Waterproof board kit $11.32 1 usually ships 13-18 days
14 240-1323 Drive motor and rear wheel assembly $2,324.56 1 (includes 1-13) usually ships 13-18 days
