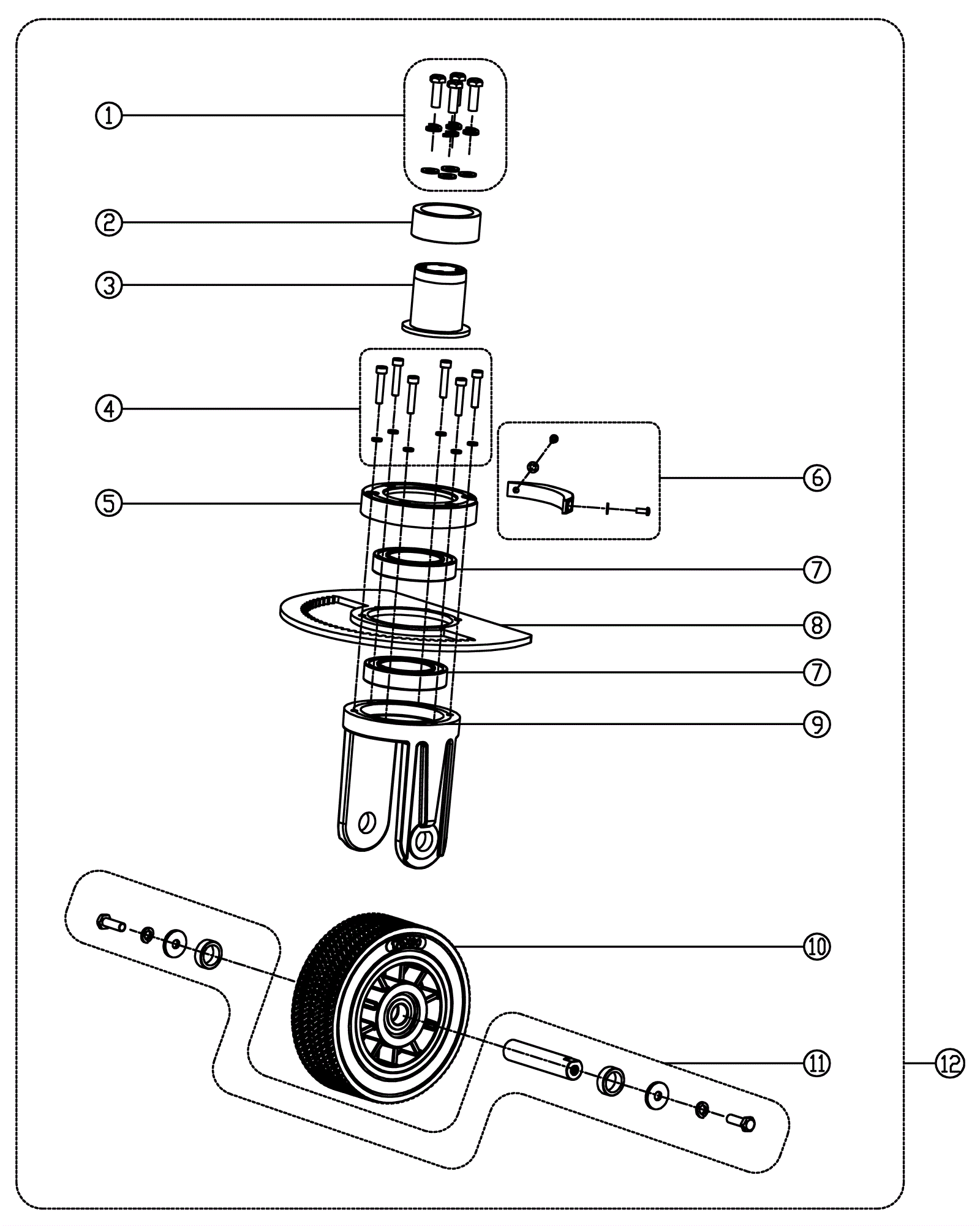

AS530R Front Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-1299 Fixed pillars hardware kit $8.26 1 usually ships 17-28 days
2 240-1300 Front wheel washer $23.01 1 usually ships 17-28 days
3 240-1301 Front wheel fixed pillars $52.67 1 usually ships 17-28 days
4 240-1302 Front wheel bracket hardware kit $8.26 1 usually ships 17-28 days
5 240-1303 Fixed bearing ring $89.61 1 usually ships 17-28 days
6 240-1304 Contractor kit $8.26 1 usually ships 17-28 days
7 240-1305 Bearing $41.54 2 usually ships 17-28 days
8 240-1306 Big gear $97.09 1 usually ships 17-28 days
9 240-1307 Front wheel bracket $40.08 1 usually ships 17-28 days
10 240-1308 Front wheel $197.20 1 usually ships 17-28 days
11 240-1309 Wheel fix kit $41.54 1 usually ships 17-28 days
12 240-1310 Front wheel assembly $410.03 1 (includes 1-11) usually ships 17-28 days
