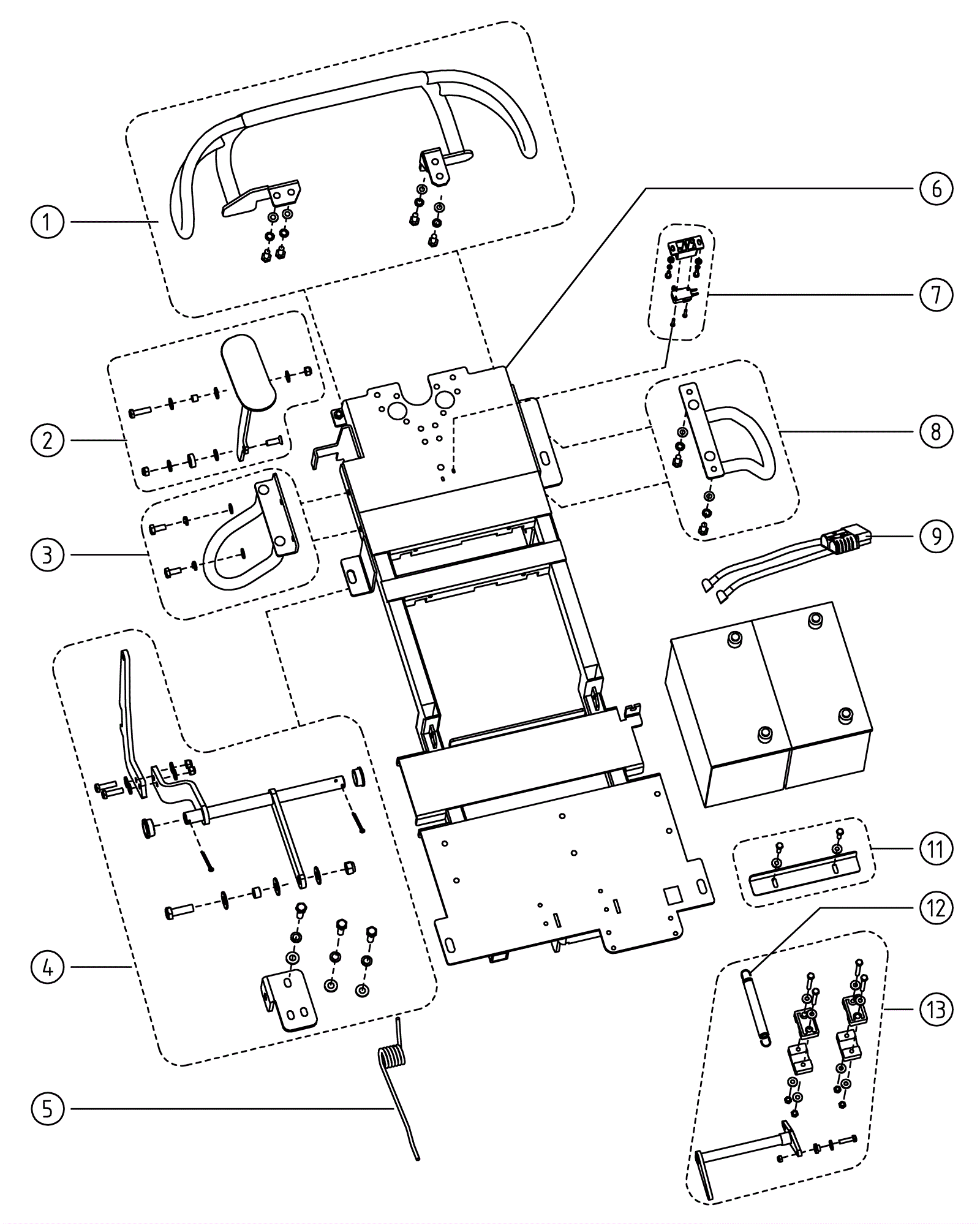

AS530R Chassis and Bumper Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-1288 Front bumper kit $147.25 1 usually ships 13-18 days
2 240-1289 Brush lift pedal kit $73.21 1 usually ships 13-18 days
3 240-1290 Left hand bumper kit $100.97 1 usually ships 13-18 days
4 240-1291 Rotary bracket kit $297.83 1 usually ships 13-18 days
5 240-1292 Spring $9.37 1 usually ships 13-18 days
6 240-1293 Chassis Call for price 1 usually ships 13-18 days
7 240-1294 Microswitch kit $13.13 1 usually ships 13-18 days
8 240-1295 Right hand bumper kit $116.07 1 usually ships 13-18 days
9 240-6338 BATTERY CONNECTIONS $73.21 1 usually ships 13-18 days
11 240-1296 Battery bracket kit $22.32 1 usually ships 13-18 days
12 240-1297 Squeegee lift spring $9.37 1 usually ships 13-18 days
13 240-1298 Squeegee lift bracket kit $196.02 1 (includes 12) usually ships 13-18 days
