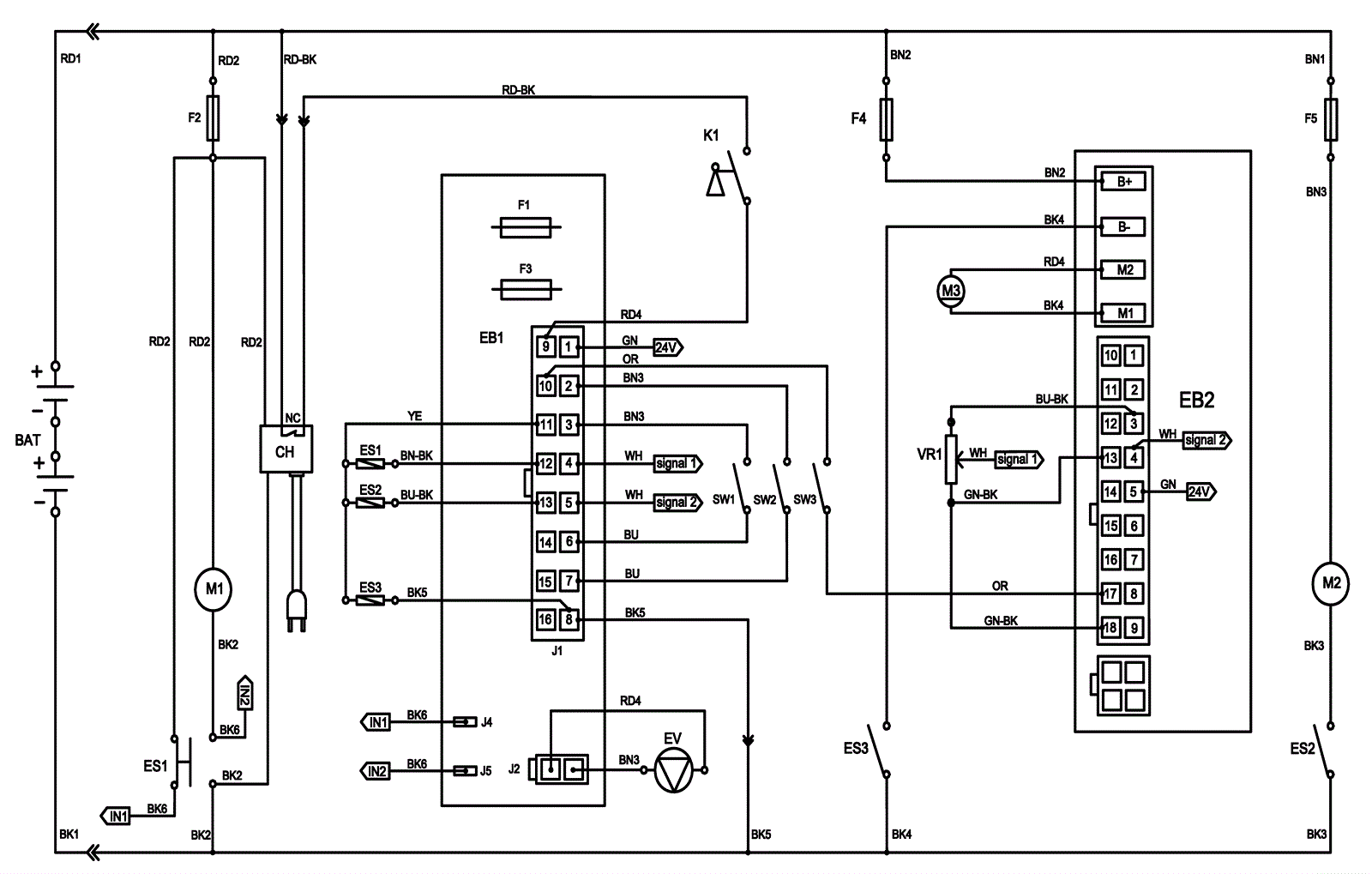

Hydra-Scrubber 5160 Wiring Diagram For Disc Machine With Traction

#PartDescriptionPriceReqNotesAvailability
CH 240-1283 Battery charger $616.59 usually ships 16-41 days
EB1 240-1284 Control panel board $184.58 usually ships 16-41 days
EB2 240-6341 ELECTRONIC BOARD W TRACT SYS $311.50 (traction system) usually ships 16-41 days
ES1 272-7142 Electromagnetic switch $268.38 (brush motor) usually ships 16-41 days
ES2 240-6336 RELAY 24V $13.17 (vacuum motor) usually ships 16-41 days
ES3 240-6336 RELAY 24V $13.17 (traction system) usually ships 16-41 days
F1 240-6379 LOW POWER CIRCUIT FUSE $6.66 usually ships 16-41 days
F2 240-0882 30amp circuit breaker $21.42 (brush motor) usually ships 16-41 days
F3 240-6380 BRUSH RELEASE FUSE $6.66 (vacuum motor) usually ships 16-41 days
F4 240-0114 Circuit breaker $19.98 (traction system) usually ships 16-41 days
F5 240-0882 30amp circuit breaker $21.42 usually ships 16-41 days
K1 572-3666 SWITCH KEY WITH CAP PKD $84.49 usually ships 16-41 days
M1 240-6370 BRUSH MOTOR KIT $680.75 usually ships 16-41 days
M2 240-6199 VACUUM MOTOR $189.09 usually ships 16-41 days
M3 240-6377 MOTOR TRACTION $885.31 usually ships 16-41 days
EV 240-6132 Solution solenoid valve kit $26.20 ships same day
