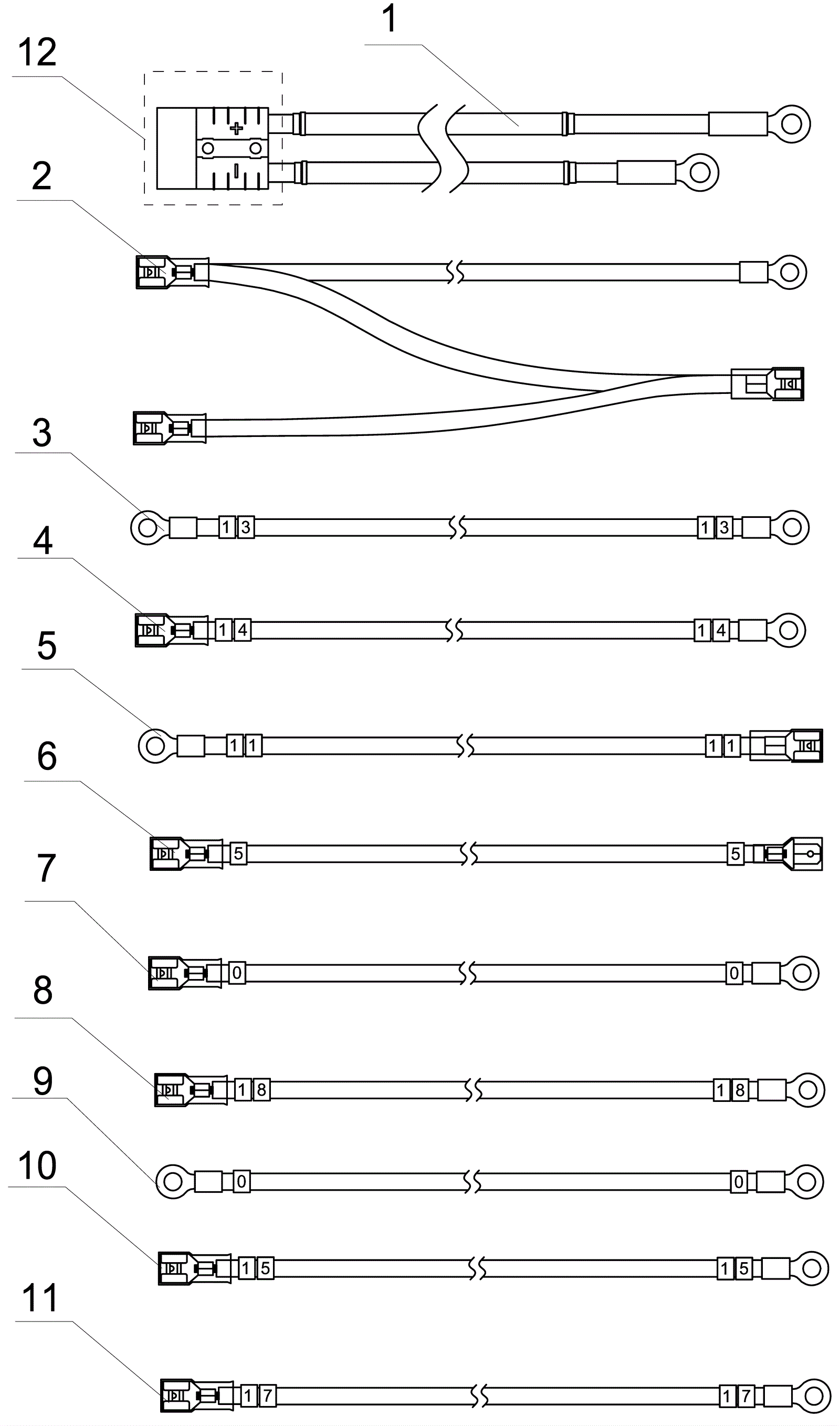

AS850R Wire Harness Assembly-1

#PartDescriptionPriceReqNotesAvailability
1 240-2383 24V battery wire $134.98 1 (includes 12) usually ships 17-28 days
2 240-2384 Contactor wire $6.66 1 usually ships 17-28 days
3 240-2385 Main brush contact wire $5.50 1 usually ships 17-28 days
4 240-2386 Vacuum motor breaker wire $9.98 1 usually ships 17-28 days
5 240-2387 Brush motor contactor $9.98 1 usually ships 17-28 days
6 240-2388 Emergency stop wire $4.18 1 usually ships 17-28 days
7 240-2389 Negative connect pole wire $4.18 1 usually ships 17-28 days
8 240-2390 Main contactor to main breaker wire $9.98 1 usually ships 17-28 days
9 240-2391 Negative pole connect wire $9.98 1 usually ships 17-28 days
10 240-2392 Vacuum motor wire $4.18 1 usually ships 17-28 days
11 240-2393 Drive motor wire $5.50 1 usually ships 17-28 days
12 240-5793 CONNECTOR GREY 175A $48.18 1 usually ships 17-28 days
