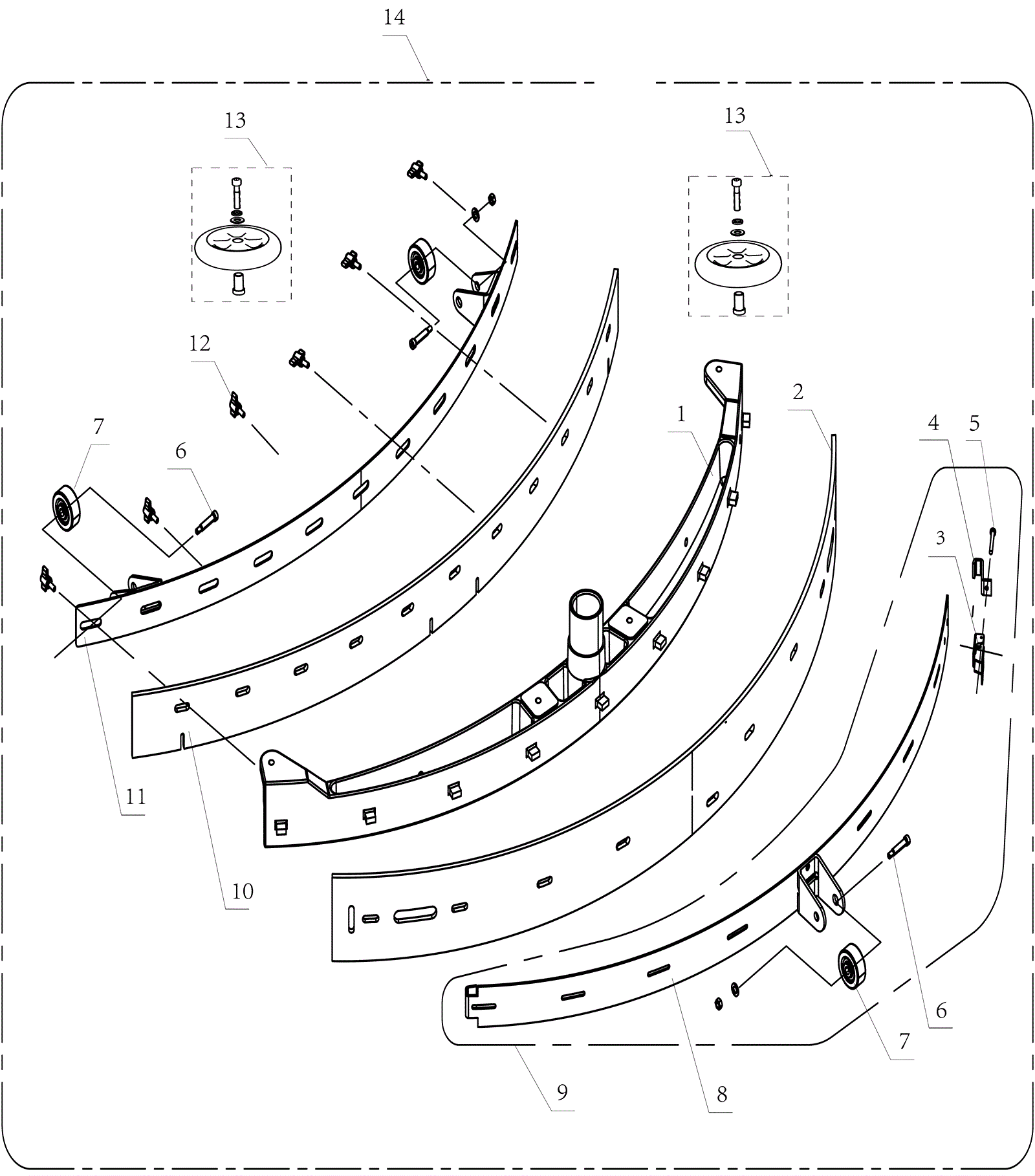

AS850R Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-0837 Squeegee housing $205.46 1 usually ships 17-28 days
2 240-0699 Squeegee blade rear $78.58 1 usually ships 17-28 days
3 240-0518 Hood latch $19.67 1 usually ships 17-28 days
4 240-0519 Rear squeegee adjustment hook $9.98 1 usually ships 17-28 days
5 240-0520 Screw M5 x 70mm $9.98 1 usually ships 17-28 days
6 240-0523 Bolt M9.5 x 31.5mm shoulder $14.91 3 usually ships 17-28 days
7 240-0524 2 inch wheel $13.17 3 ships same day
8 240-0838 Rear squeegee backup strip $25.51 1 usually ships 17-28 days
9 240-0839 Squeegee backup strip kit $90.43 1 (includes 3-8) usually ships 17-28 days
10 240-0698 Squeegee blade front $61.49 1 usually ships 17-28 days
11 240-0840 Front squeegee backup strip $26.66 1 usually ships 17-28 days
12 240-0528 Knob M6 $9.98 6 ships same day
13 240-2313 Bumper wheel kit $27.92 2 ships same day
14 240-7035 Squeegee assembly $553.85 1 (includes 1-13) usually ships 17-28 days
