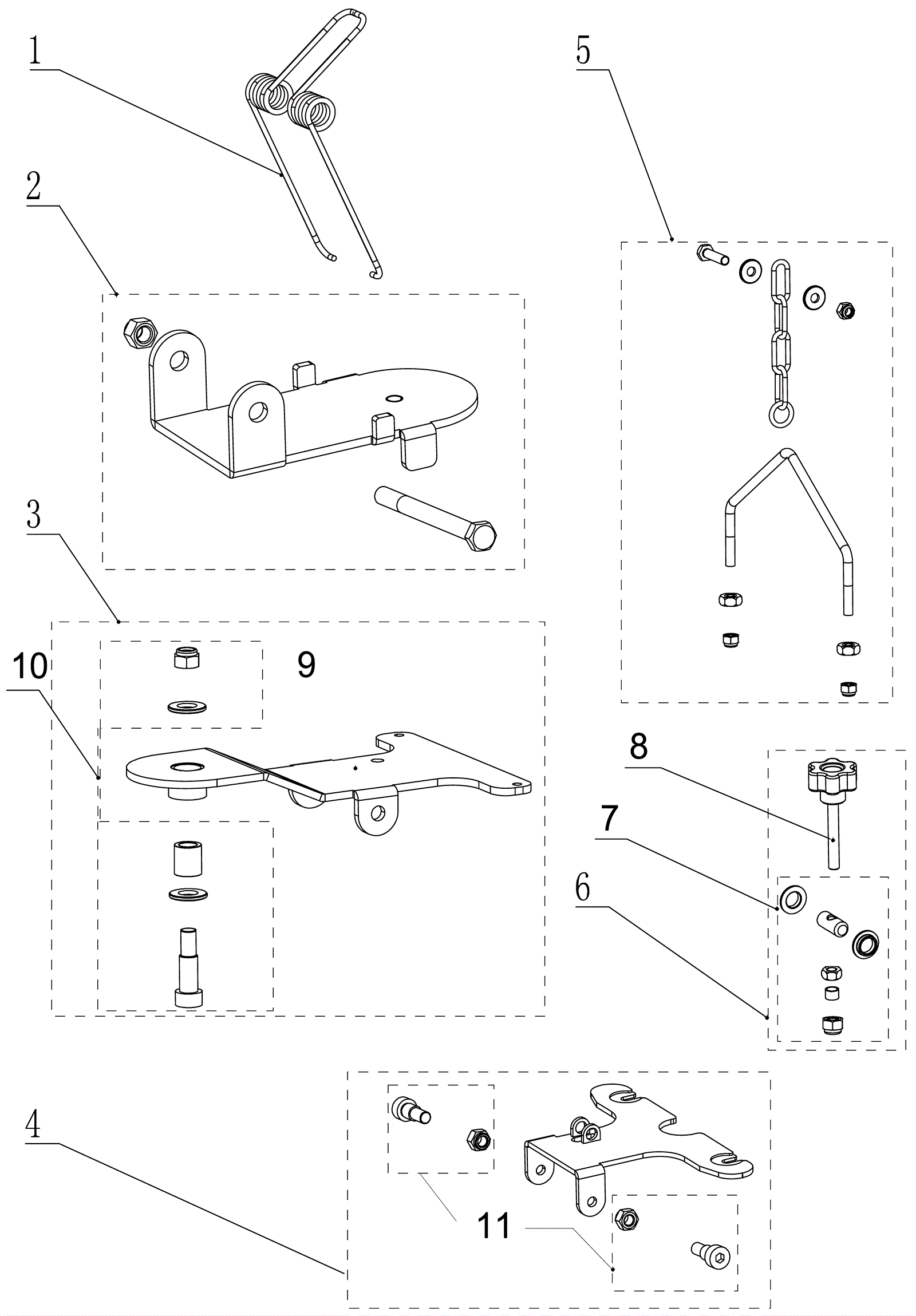

AS850R Squeegee Bracket Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-7032 Spring $23.82 1 usually ships 13-18 days
2 240-2347 Squeegee bracket kit $76.51 1 ships same day
3 240-2348 Squeegee mounting pivot kit $122.80 1 (includes 9-10) usually ships 13-18 days
4 240-7033 Squeegee adjustment bracket kit $57.30 1 (includes 11) usually ships 13-18 days
5 240-7034 Squeegee lift chain kit $25.12 1 usually ships 13-18 days
6 240-2351 Squeegee adjustment handle kit $27.91 1 (includes 7-8) ships same day
7 240-9029 Handle adjustment hardware kit $24.31 1 usually ships 13-18 days
8 240-2115 Knob M8 x 55mm $11.32 1 usually ships 13-18 days
9 240-6267 SQUEEGEE MOUNTING PIVOT $99.31 1 usually ships 13-18 days
10 240-6268 KIT HDW MOUNING PIVOT $13.13 1 usually ships 13-18 days
11 240-6269 KIT HDW ADJUSTMENT BRACKET $11.32 2 usually ships 13-18 days
