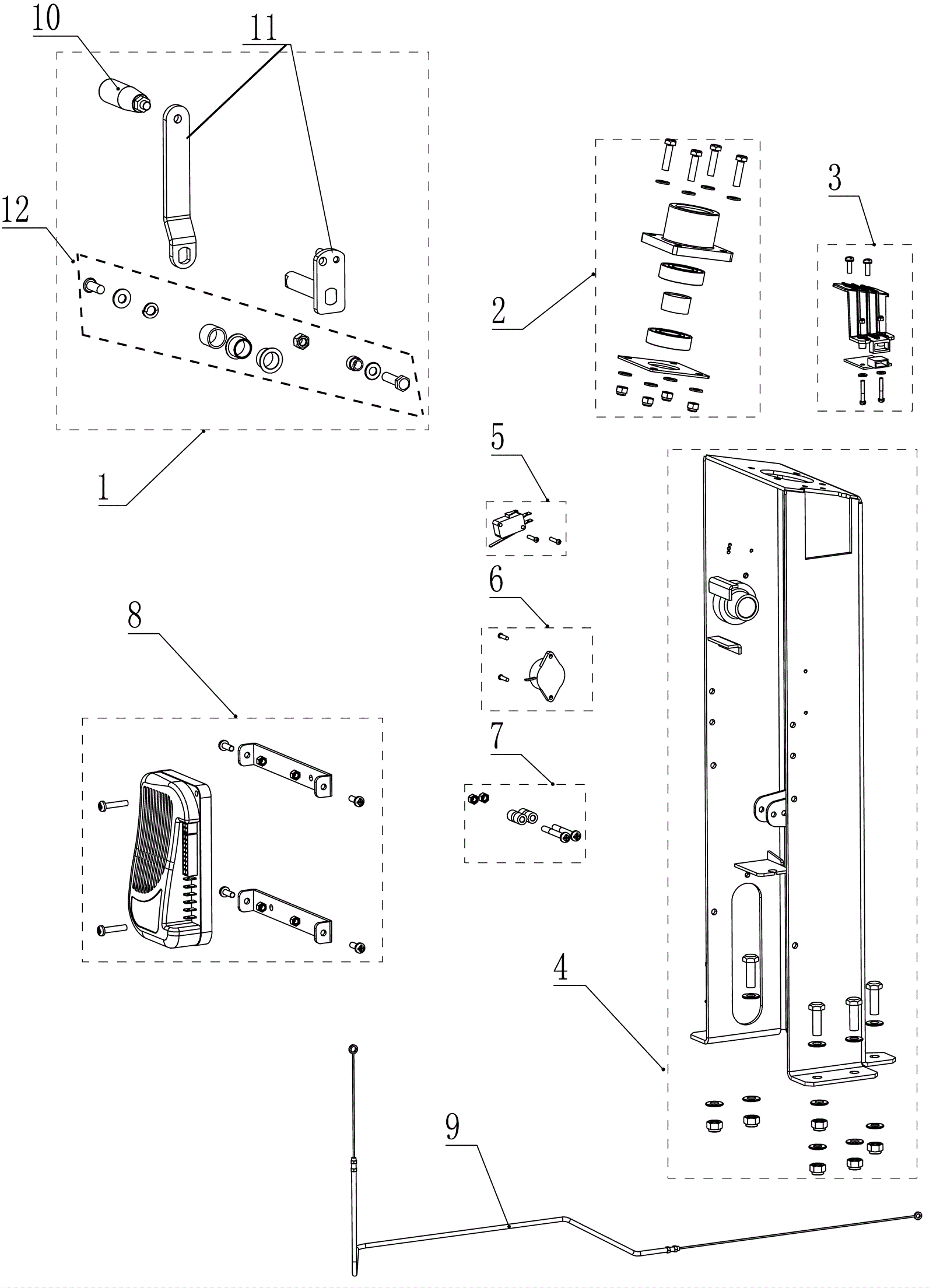

AS850R Front Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-2304 Squeegee lift handle kit $76.51 1 (includes 10-12) usually ships 13-18 days
2 240-2305 Bearing base kit $50.59 1 usually ships 13-18 days
3 240-2306 USB kit $54.66 1 usually ships 13-18 days
4 240-2307 Front frame kit $223.76 1 usually ships 13-18 days
5 240-2308 Squeegee switch kit $14.95 1 ships same day
6 240-2309 Horn kit $11.32 1 usually ships 13-18 days
7 240-2310 Squeegee lift guide wheel cable kit $11.32 1 usually ships 13-18 days
8 240-2311 Drive motor control kit $1,548.33 1 usually ships 13-18 days
9 240-2312 Squeegee lift cable $14.95 1 ships same day
10 240-6271 HANDEL SQUEEGEE LIFT $11.32 1 usually ships 13-18 days
11 240-6272 BRACKET LEVER $56.30 1 usually ships 13-18 days
12 240-6273 HDW KIT BRACKET LEVER $22.32 1 usually ships 13-18 days
