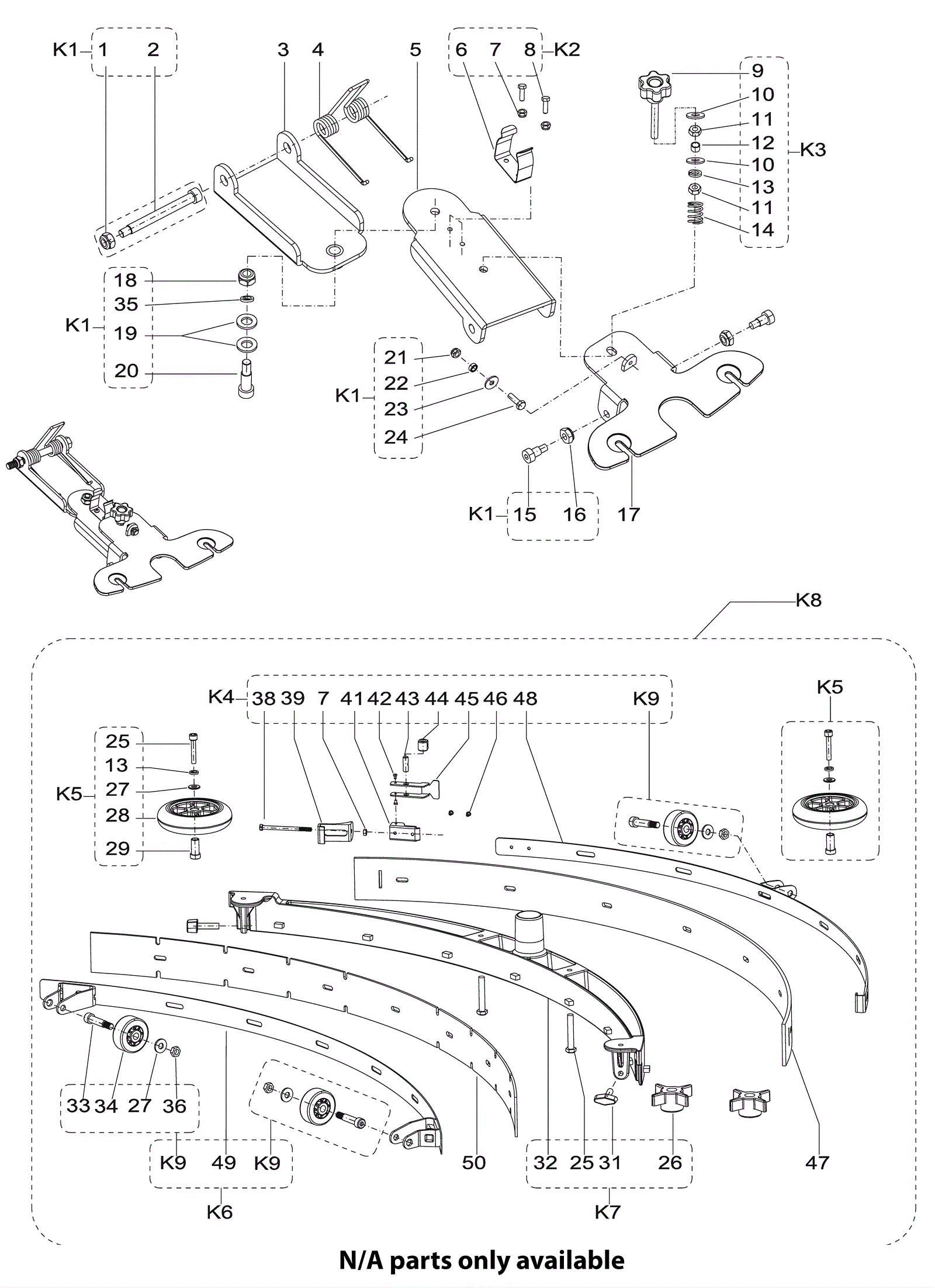

Squeegee Assembly

#PartDescription ReqNotesAvailability
1 999-0519 Nut M12-1.75 nylon insert lock stainless steel 1 (included with KIT1)
2 N/A Not available 1 (screw M12 x 115) (only available with KIT1)
3 240-6363 FRONT-SQUEEGEE-SUPPORT 1
4 240-2111 Spring 1
5 240-1606 Rear squeegee support 1
6 N/A Not available 1 (drain hose clamp) (only available with KIT2)
7 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 3 (included in KIT2, KIT4)
8 999-6690 Screw M5-.8 x 12mm hex head stainless steel 2 (included in KIT2)
9 240-9006 Adjustment knob 1 (included in KIT3)
10 N/A Not available 2 (washer) (only available with KIT3)
11 999-1651 Nut M8-1 hex stainless steel 2 (included in KIT3)
12 N/A Not available 1 (spacer) (only available with KIT3)
13 N/A Not available 3 (spring washer) (only available with KIT3, KIT5)
14 N/A Not available 1 (spring) (only available with KIT3)
15 N/A Not available 2 (screw) (only available with KIT1)
17 240-1607 Squeegee coating connector 1
18 999-1550 Nut M10-1.5 nylon insert lock 1 (included in KIT1)
19 N/A Not available 2 (nylon spacer) (only available with KIT1)
20 N/A Not available 1 (screw) (only available with KIT1)
21 999-9131 Nut M6 x 1 nylon lock stainless steel 1 (included in KIT1)
22 N/A Not available 1 (spacer) (only available with KIT1)
23 N/A Not available 1 (washer) (only available with KIT1)
24 999-1312 Screw M6-1 x 20mm hex head stainless steel 1 (included in KIT1)
25 N/A Not available 4 (screw M6 x 50) (included in KIT5, KIT7)
26 240-0532 Knob M8 2 (included in KIT7, KIT8)
27 N/A Not available 5 (washer) (only available with KIT5, KIT9)
28 240-1601 Bumper roller 2 (included in KIT5)
29 N/A Not available 2 (spacer) (only available with KIT5)
31 240-2143 Thumb screw 2 (included in KIT7)
32 240-1602 Bumper roller kit 1 (included in KIT7)
33 N/A Not available 3 (screw) (only available with KIT4, KIT6)
34 N/A Not available 3 (roller bumper) (only available with KIT4, KIT6)
35 N/A Not available 1 (spring washer) (only available with KIT1)
36 N/A Not available 3 (nut lock M8 5/16) (only available with KIT4, KIT6)
38 999-9233 Screw M5-0.8 x 70 hex cap full thread 1 (included in KIT4)
39 240-1604 Right hand rear squeegee strap 1 (included in KIT4)
41 N/A Not available 1 (buckle stay) (only available with KIT4)
42 N/A Not available 2 (rivet) (only available with KIT4)
43 N/A Not available 1 (buckle shaft) (only available with KIT4)
44 N/A Not available 1 (buckle shaft spacer) (only available with KIT4)
45 N/A Not available 1 (buckle frame) (only available with KIT4)
46 N/A Not available 2 (rivet) (only available with KIT4)
47a 240-1147 Squeegee blade rear PRIMOthane (blue) 1 (polyurethane)
47b 240-1609 Squeegee blade 37 inch rear rubber blade 1 (rubber)
47c 240-6280 linatex BLADE REAR 1 (linatex)
47d 991-3171 Squeegee blade rear PRIMOthane (blue) 1 (NON-OEM)
48 240-1605 940 mm squeegee strap 1 (included in KIT4)
49 240-1603 940 mm squeegee strap 1 (included in KIT6)
50a 240-1146 Squeegee blade front PRIMOthane (blue) 1 (polyurethane)
50b 240-1608 Squeegee blade 37 inch front rubber blade 1 (rubber)
50c 240-6279 linatex BLADE FRONT 1 (linatex)
50d 991-3172 Squeegee blade front PRIMOthane (blue) 1 (NON-OEM)
KIT1 240-6381 HARDWARE SQUEEGEE SUPPORT KIT 1 (includes 1-2, 15-16, 18-24, 35)
KIT2 240-1585 Deck plate screw kit 1 (includes 6-8)
KIT3 240-6079 HAND WHEEL KIT 1 (includes 9-14)
KIT4 240-2354 Rear squeegee strap kit 1 (includes 33-34, 36-46, 48)
KIT5 240-2352 Bumper wheel kit 2 (includes 13, 25, 27-29)
KIT6 240-2355 Front squeegee strap kit 1 (includes 33-34, 36, 49)
KIT7 240-2353 Squeegee body 1 (includes 25-26, 31-32)
KIT8a 240-2356 37 inch squeegee pu assembly 1 (includes 7, 13, 25-29, 31-34, 36, 38-39, 41-46, 47a, 48-49, 50a)
KIT8b 240-1610 37 inch squeegee assembly 1 (includes 7, 13, 25-29, 31-34, 36, 38-39, 41-46, 47b, 48-49, 50b)
KIT8c 572-4235 37 inch squeegee linatex assembly 1 (includes 7, 13, 25-29, 31-34, 36, 38-39, 41-46, 47c, 48-49, 50c)
KIT9 240-1148 Squeegee Roll Wheel Kit 3 (includes 27)
