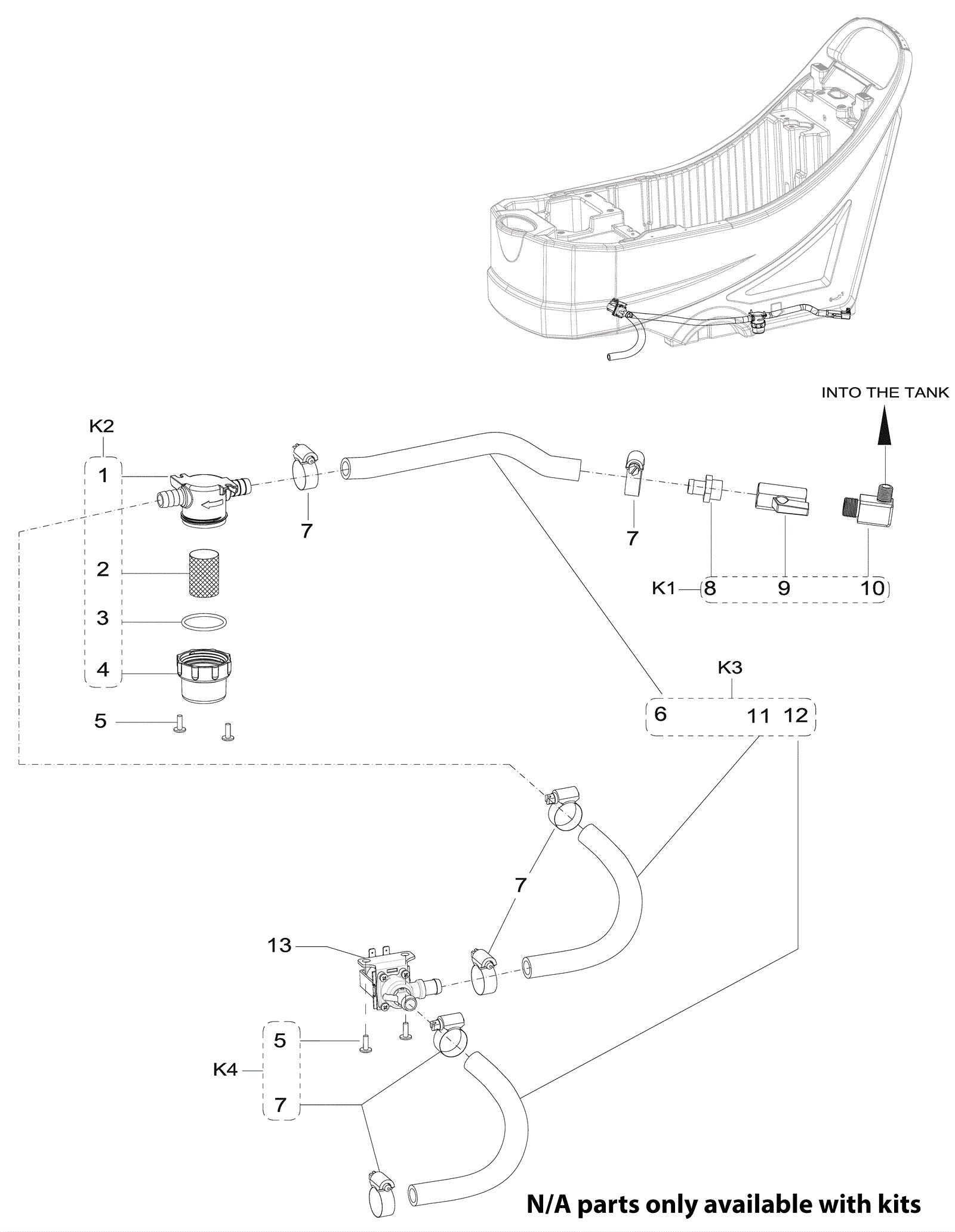

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
240-6215
|
FILTER BASE |
1 |
(included in KIT2) |
|
2 |
240-6217
|
FILTER NET |
1 |
(included in KIT2) |
|
3 |
240-6216
|
O-RING |
1 |
(included in KIT2) |
|
4 |
240-6214
|
Filter cover |
1 |
(included in KIT2) |
|
5 |
999-9101
|
Screw M4-.7 x 10mm pan head stainless steel |
4 |
(included in KIT4) |
|
6 |
N/A
|
Not available |
1 |
(PVC tube) (only available with KIT3) |
|
7 |
N/A
|
Not available |
4 |
(clamp) (only available with KIT4) |
|
8 |
N/A
|
Not available |
1 |
(connector) (only available with KIT1) |
|
9 |
N/A
|
Not available |
1 |
(ball valve) (only available with KIT1) |
|
10 |
N/A
|
Not available |
1 |
(90 degree brass elbow) (only available with KIT1) |
|
11 |
N/A
|
Not available |
1 |
(PVC tube) (only available with KIT3) |
|
12 |
N/A
|
Not available |
1 |
(PVC tube) (only available with KIT3) |
|
13 |
240-2295
|
Valve |
1 |
|
|
KIT1 |
240-1566
|
Ball valve kit |
1 |
(includes 8-10) |
|
KIT2 |
240-2296
|
Filter kit |
1 |
(includes 1-4) |
|
KIT3 |
240-6633
|
PVC tube w/ wire kit |
1 |
(includes 6, 11-12) |
|
KIT4 |
240-6333
|
SCREW AND CLAMP KIT |
1 |
(includes 5, 7) |
|
