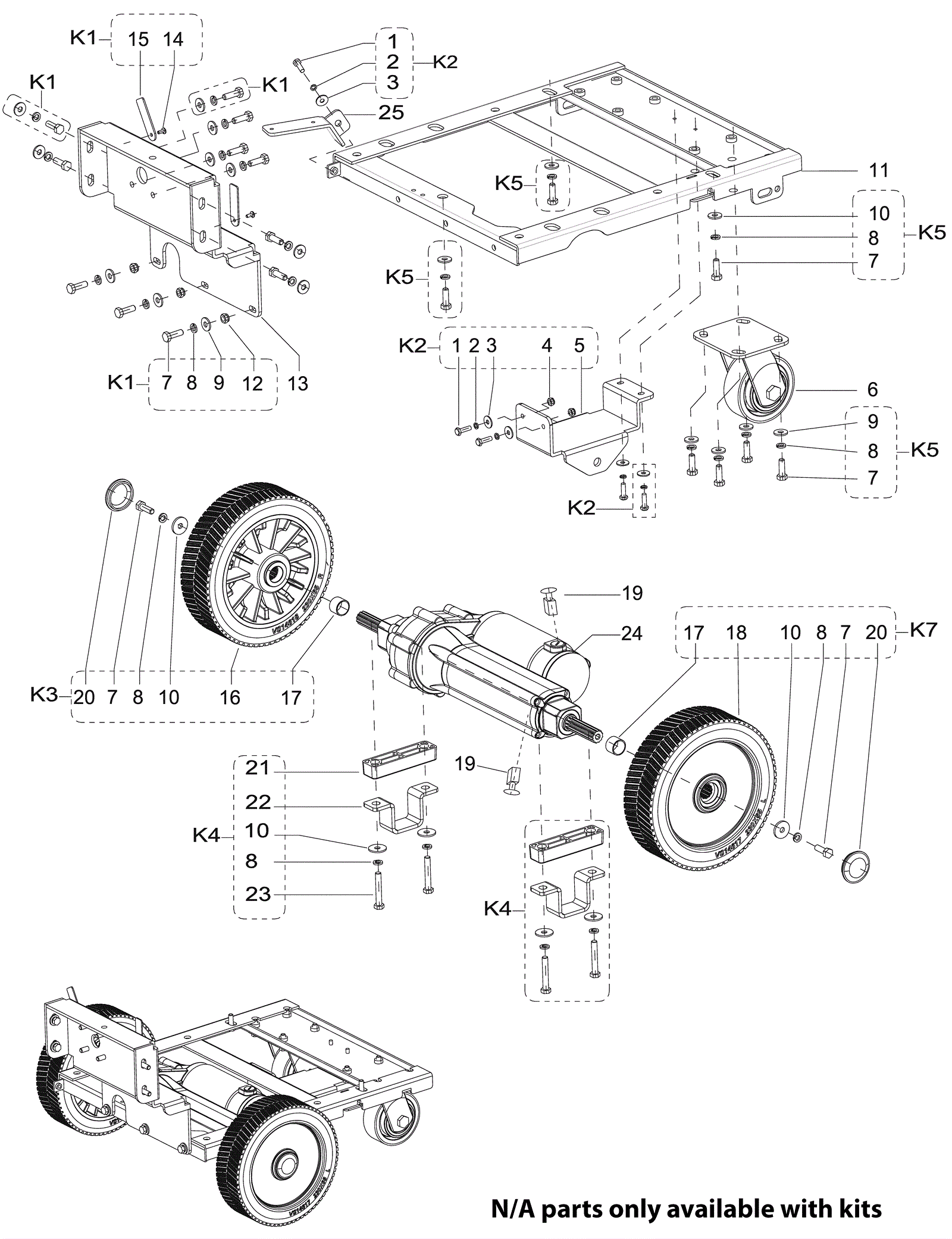

Chassis Assembly

#PartDescription ReqNotesAvailability
1 999-1312 Screw M6-1 x 20mm hex head stainless steel 5 (included in KIT2)
2 N/A Not available 5 (spring washer) (only available with KIT2)
3 N/A Not available 5 (washer) (only available with KIT2)
4 999-9131 Nut M6 x 1 nylon lock stainless steel 4 (included in KIT2)
5 240-1555 Squeegee bracket spring 1 (included in KIT2)
6 240-0984 4 inch caster 2
7 999-9082 Screw M8-1.25 x 25mm hex head stainless steel 24 (included in KIT1, KIT3, KIT5, KIT6, KIT7)
8 N/A Not available 28 (spring washer) (only available with KIT1, KIT3, KIT4, KIT5, KIT7)
9 N/A Not available 19 (washer) (only available with KIT1, KIT5)
10 N/A Not available 9 (washer) (only available with KIT3, KIT4, KIT5, KIT7)
11 240-1554 Chassis 1
13 240-1556 Brush head support 1 (included in KIT1)
14 N/A Not available 2 (screw TM4 x 10) (only available with KIT1)
15 N/A Not available 2 (retainer plate) (only available with KIT1)
16 240-1559 Right hand wheel 1 (included in KIT3)
17 240-1557 Spacer 2 (included in KIT3, KIT7)
18 240-1558 Left hand wheel 1 (included in KIT7)
19 240-9317 Carbon brush kit 2
20 N/A Not available 2 (wheel cover) (only available with KIT3, KIT7)
21 N/A Not available 2 (transaxle mount block) (only available with KIT4)
22 N/A Not available 2 (traction mount) (only available with KIT4)
23 999-1426 Screw M8-1.25 x 45mm hex head stainless steel 4 (included KIT4)
24 240-1616 350W traction motor 1
25 240-7018 Support valve 1
KIT1 240-1560 Support kit 1 (includes 7-9, 12-15)
KIT2 240-1561 Spring bracket kit 1 (includes 1-5)
KIT3 240-1563 Right hand traction wheel kit 1 (includes 7-8, 10, 16-17, 20)
KIT4 240-6332 TRACTION MOUNT KIT 2 (includes 8, 10, 21-23)
KIT5 240-1562 Chassis screw kit 1 (includes 7-10)
KIT7 240-1564 Left hand traction wheel kit 1 (includes 7-8, 10, 17-18, 20)
