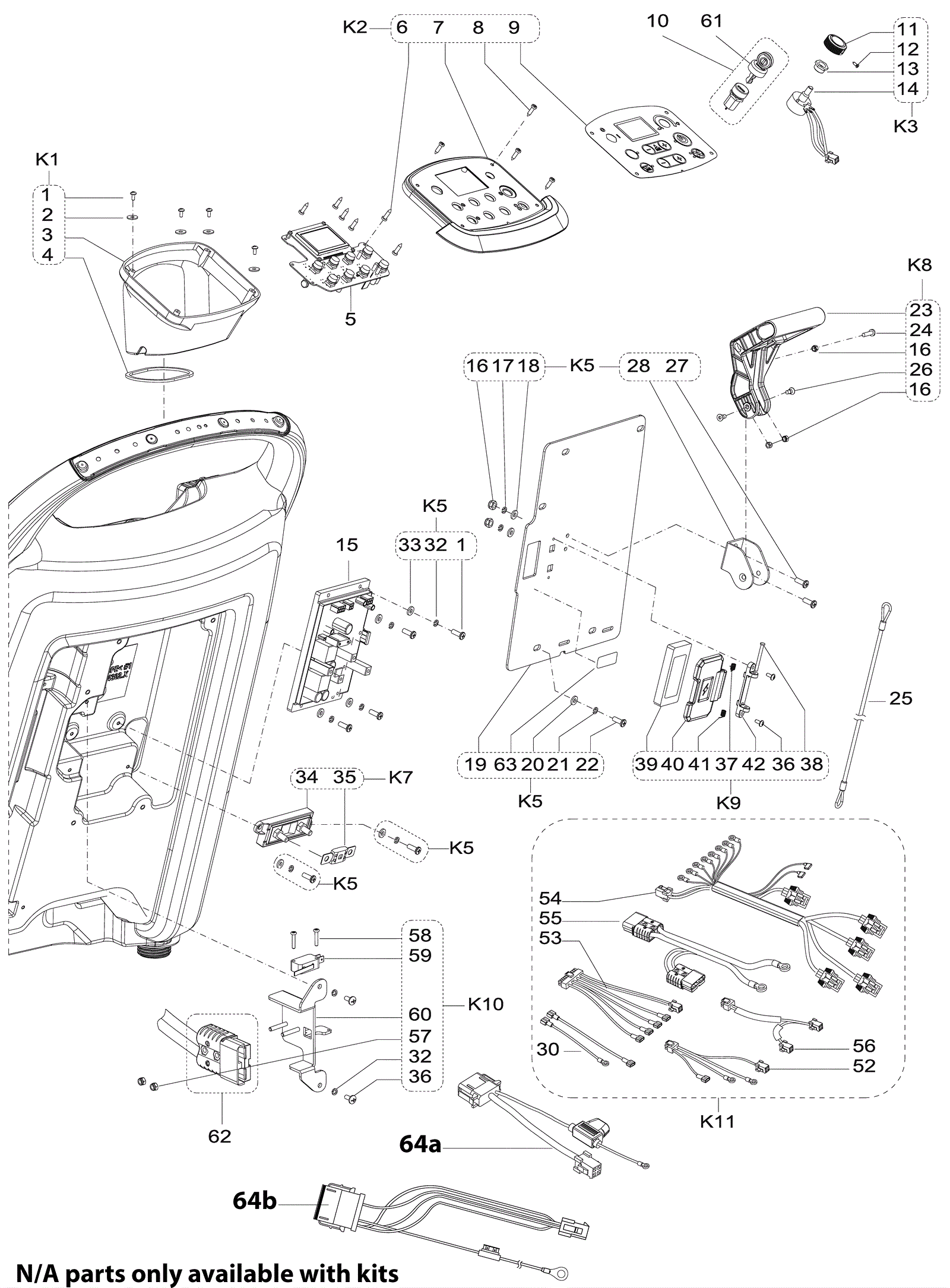

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-9113
|
Screw M4-.7 x 16mm pan head phillips stainless steel |
10 |
(included in KIT1, KIT5) |
|
2 |
N/A
|
Not available |
4 |
(washer) (only available with KIT1) |
|
3 |
N/A
|
Not available |
1 |
(PCB box) (only available with KIT1) |
|
4 |
N/A
|
Not available |
1 |
(PCB box gasket) (only available with KIT1) |
|
5 |
240-1614
|
Orbital panel control board |
1 |
|
|
6 |
N/A
|
Not available |
7 |
(screw ST3.5 x 9.5) (only available with KIT2) |
|
7 |
N/A
|
Not available |
1 |
(control panel) (only available with KIT2) |
|
8 |
N/A
|
Not available |
4 |
(screw ST4 x 15) (only available with KIT2) |
|
9 |
N/A
|
Not available |
1 |
(orbital control panel decal) (only available with KIT2) |
|
10 |
572-3666
|
SWITCH KEY WITH CAP PKD |
1 |
(includes 61) |
|
11 |
240-1535
|
Speed adjust knob |
1 |
(included in KIT3) |
|
12 |
N/A
|
Not available |
1 |
(screw ST3 x 10) (only available with KIT3) |
|
13 |
N/A
|
Not available |
1 |
(knob nut) (only available with KIT3) |
|
14 |
240-1540
|
Speed potentiometer |
1 |
(included in KIT3) |
|
15 |
240-1537
|
Machine main controller |
1 |
|
|
16 |
999-0953
|
Nut M5-.8 hex nylon insert lock stainless steel |
5 |
(included in KIT5, KIT8) |
|
17 |
N/A
|
Not available |
2 |
(spring washer) (only available with KIT5) |
|
18 |
N/A
|
Not available |
2 |
(washer) (only available with KIT5) |
|
19 |
240-1543
|
Control box cover |
1 |
(included in KIT5) |
|
20 |
N/A
|
Not available |
5 |
(washer) (only available with KIT5) |
|
21 |
N/A
|
Not available |
5 |
(spring washer) (only available with KIT5) |
|
22 |
N/A
|
Not available |
5 |
(screw M5 x 15) (only available with KIT5) |
|
23 |
N/A
|
Not available |
1 |
(lift handle) (only available with KIT8) |
|
24 |
999-1671
|
Screw M5-.8 x 20mm pan head phillips stainless steel |
1 |
(included in KIT8) |
|
25 |
240-1542
|
Cable |
1 |
|
|
26 |
N/A
|
Not available |
2 |
(screw M5) (only available with KIT8) |
|
27 |
N/A
|
Not available |
2 |
(screw M5 x 15) (only available with KIT5) |
|
28 |
240-1541
|
Hand bracket |
1 |
(included in KIT5) |
|
30 |
N/A
|
Not available |
1 |
(harness charging switch) (only available with KIT11) |
|
32 |
N/A
|
Not available |
8 |
(spring washer M4) (only available with KIT5, KIT10) |
|
33 |
N/A
|
Not available |
6 |
(washer) (only available with KIT5) |
|
34 |
N/A
|
Not available |
1 |
(fuse bracket) (only available with KIT7) |
|
35 |
240-1539
|
100amp fuse |
1 |
(included in KIT7) |
|
37 |
N/A
|
Not available |
1 |
(spring) (only available with KIT9) |
|
38 |
N/A
|
Not available |
1 |
(pin) (only available with KIT9) |
|
39 |
N/A
|
Not available |
1 |
(charger plug gasket) (only available with KIT9) |
|
40 |
N/A
|
Not available |
1 |
(charger socket cover) (only available with KIT9) |
|
41 |
N/A
|
Not available |
1 |
(spring) (only available with KIT9) |
|
42 |
N/A
|
Not available |
1 |
(charger plug cover bracket) (only available with KIT9) |
|
52 |
N/A
|
Not available |
1 |
(brush actuator harness) (only available with KIT11) |
|
53 |
240-7000
|
Speed control harness |
1 |
(included in KIT11) |
|
54 |
240-9316
|
Motor cable harness |
1 |
(included in KIT11) |
|
55 |
240-1504
|
24V input harness |
1 |
(included in KIT11) |
|
56 |
N/A
|
Not available |
1 |
(can bus harness) (only available with KIT11) |
|
57 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
2 |
(included in KIT10) |
|
58 |
N/A
|
Not available |
2 |
(screw M3 x 49) (only available with KIT3) |
|
59 |
240-1533
|
Micro switch |
1 |
(included KIT10) |
|
60 |
N/A
|
Not available |
1 |
(charger plug bracket) (only available with KIT10) |
|
61 |
991-1634
|
Key (pkg of 2) |
1 |
(included with 10) |
|
62 |
240-1534
|
Battery connector |
1 |
|
|
63 |
N/A
|
Not available |
1 |
(decal) (only available with KIT5) |
|
64a |
240-7015
|
Harness |
1 |
(use before SN USWM001159N for WM version) |
|
64b |
240-7016
|
Harness |
1 |
(use after SN USWM001159N for WM version) |
|
KIT1 |
240-1544
|
Power control board box kit |
1 |
(includes 1-4) |
|
KIT2 |
372-3686
|
Control panel orbital kit |
1 |
(includes 6-9) |
|
KIT3 |
240-1552
|
Speed adjust knob kit |
1 |
(includes 11-14) |
|
KIT5 |
240-1548
|
Control box cover kit |
1 |
(includes 1, 16-22, 27-28, 32-33, 63) |
|
KIT7 |
240-1547
|
Fuse kit |
1 |
(includes 34-35) |
|
KIT8 |
240-1549
|
Lift handle kit |
1 |
(includes 16, 23-24, 26) |
|
KIT9 |
240-1550
|
Socket charger kit |
1 |
(includes 36-42) |
|
KIT10 |
240-1551
|
Power bracket cord |
1 |
(includes 32, 36, 57-60) |
|
KIT11 |
240-7017
|
Orbital machine harness kit |
1 |
(includes 11, 52-56) |
|
