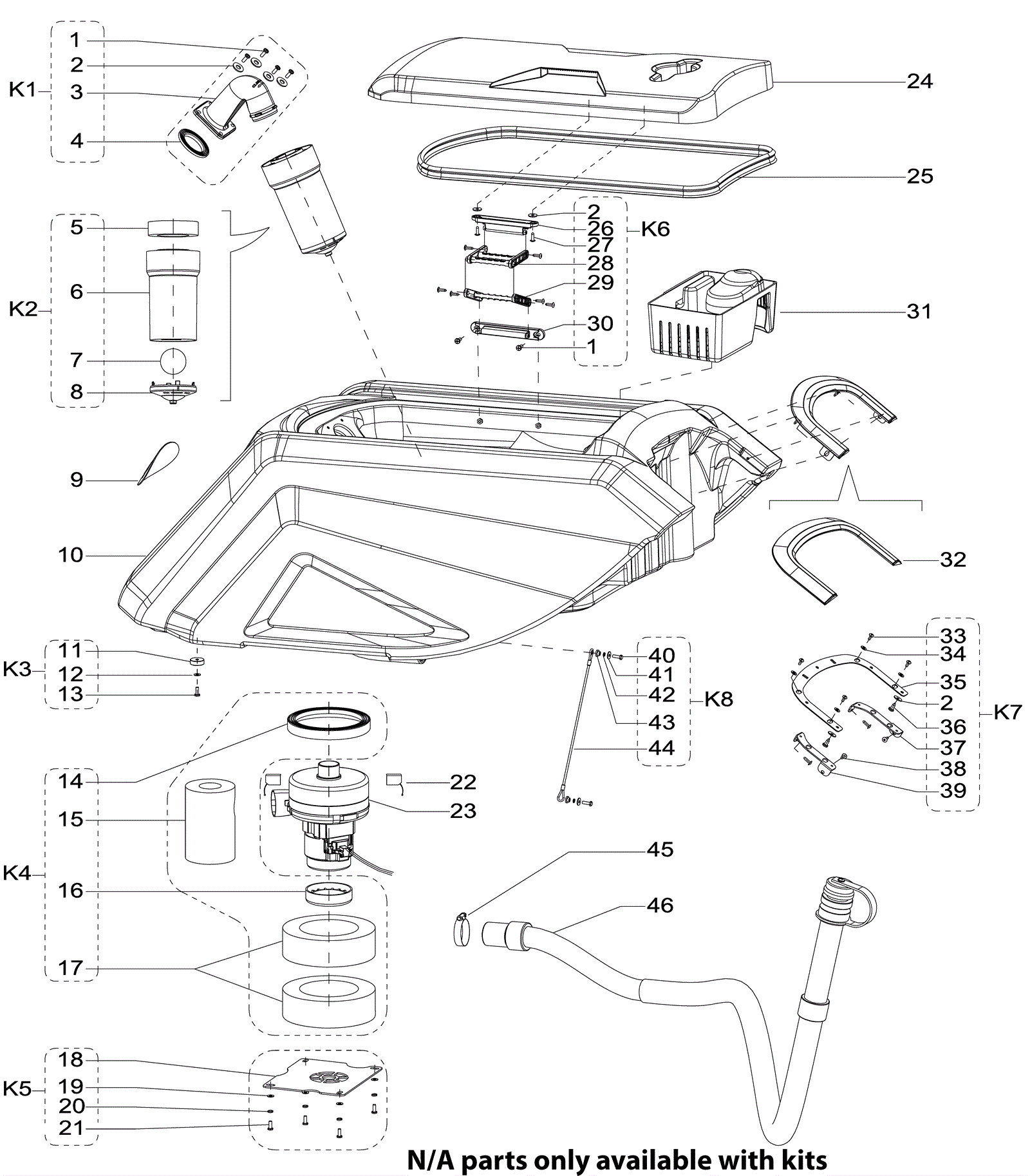

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1898
|
Screw M4-.7 x 12mm pan head phillips stainless steel |
6 |
(included in KIT1, KIT6, KIT7) |
|
2 |
N/A
|
Not available |
10 |
(washer) (only available with KIT1, KIT6) |
|
3 |
N/A
|
Not available |
1 |
(float adaptor elbow) (only available with KIT1) |
|
4 |
N/A
|
Not available |
1 |
(float gasket) (only available with KIT1) |
|
5 |
N/A
|
Not available |
1 |
(sponge) (only available with KIT2) |
|
6 |
N/A
|
Not available |
1 |
(float cage) (only available with KIT2) |
|
7 |
N/A
|
Not available |
1 |
(floating ball) (only available with KIT2) |
|
8 |
N/A
|
Not available |
1 |
(float cage cover) (only available with KIT2) |
|
9 |
240-6044
|
LOGO LABEL |
1 |
|
|
10 |
240-1525
|
90 liter recovery tank |
1 |
|
|
11 |
N/A
|
Not available |
1 |
(rubber gasket) (only available with KIT3) |
|
12 |
N/A
|
Not available |
1 |
(washer) (only available with KIT3) |
|
13 |
999-1517
|
Screw M5-.8 x 12mm truss head stainless steel |
1 |
(included in KIT3) |
|
14 |
N/A
|
Not available |
1 |
(suction up gasket) (only available with KIT4) |
|
15 |
N/A
|
Not available |
1 |
(acoustic insulation pipe) (only available with KIT4) |
|
16 |
N/A
|
Not available |
1 |
(vacuum motor top gasket) (only available with KIT4) |
|
17 |
N/A
|
Not available |
2 |
(acoustic insulation pipe) (only available with KIT4) |
|
18 |
240-1524
|
Vacuum motor cover |
1 |
(included in KIT5) |
|
19 |
N/A
|
Not available |
4 |
(washer) (only available with KIT5) |
|
20 |
N/A
|
Not available |
4 |
(spring washer) (only available with KIT5) |
|
21 |
N/A
|
Not available |
4 |
(screw PM5 x 15) (only available with KIT5) |
|
22 |
240-6200
|
CARBON BRUSH KIT |
2 |
|
|
23 |
240-6634
|
24V 3 stage vacuum motor |
1 |
|
|
24 |
240-1526
|
Recovery tank lid |
1 |
|
|
25 |
240-1528
|
Gasket sir (OBSOLETE) |
1 |
|
|
26 |
N/A
|
Not available |
1 |
(fixed frame-b) (only available with KIT6) |
|
27 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
8 |
(included in KIT6) |
|
28 |
N/A
|
Not available |
1 |
(connection frame-b) (only available with KIT6) |
|
29 |
N/A
|
Not available |
1 |
(connection frame-a) (only available with KIT6) |
|
30 |
N/A
|
Not available |
1 |
(fixed frame-a) (only available with KIT6) |
|
31 |
240-1530
|
Debris tray kit |
1 |
|
|
32 |
240-1527
|
Decorative panel |
1 |
|
|
34 |
N/A
|
Not available |
1 |
(washer) (only available with KIT7) |
|
35 |
N/A
|
Not available |
1 |
(decorative panel bracket) (only available with KIT7) |
|
36 |
N/A
|
Not available |
4 |
(screw PA3 x 8) (only available with KIT7) |
|
37 |
N/A
|
Not available |
1 |
(right hand switch cover bracket) (only available with KIT7) |
|
38 |
N/A
|
Not available |
4 |
(screw TA3.5 x 12) (only available with KIT7) |
|
39 |
N/A
|
Not available |
1 |
(left hand switch cover bracket) (only available with KIT7) |
|
40 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
2 |
(included in KIT8) |
|
41 |
N/A
|
Not available |
2 |
(washer) (only available with KIT8) |
|
42 |
N/A
|
Not available |
2 |
(spring washer) (only available with KIT8) |
|
43 |
N/A
|
Not available |
2 |
(bushing) (only available with KIT8) |
|
44 |
N/A
|
Not available |
1 |
(cable) (only available with KIT8) |
|
45 |
270-5017
|
Clamp |
1 |
|
|
46 |
240-6635
|
Drain hose |
1 |
|
|
KIT1 |
240-6298
|
ELBOW ADAPTOR KIT |
1 |
(includes 1-4) |
|
KIT2 |
240-7014
|
Float cage assembly |
1 |
(includes 5-8) |
|
KIT3 |
240-6299
|
RUBBER GASKET KIT |
1 |
(includes 11-13) |
|
KIT4 |
270-5024
|
Vacuum motor gasket kit |
1 |
(includes 14-17) |
|
KIT5 |
270-5025
|
Vacuum motor cover kit |
1 |
(includes 18-21) |
|
KIT6 |
240-6302
|
CONNECTION FRAME KIT |
1 |
(includes 1-2, 26-30) |
|
KIT7 |
240-1531
|
Decorative panel bracket kit |
1 |
(includes 1, 33-39) |
|
KIT8 |
240-1532
|
Cable tank kit |
1 |
(includes 40-44) |
|
