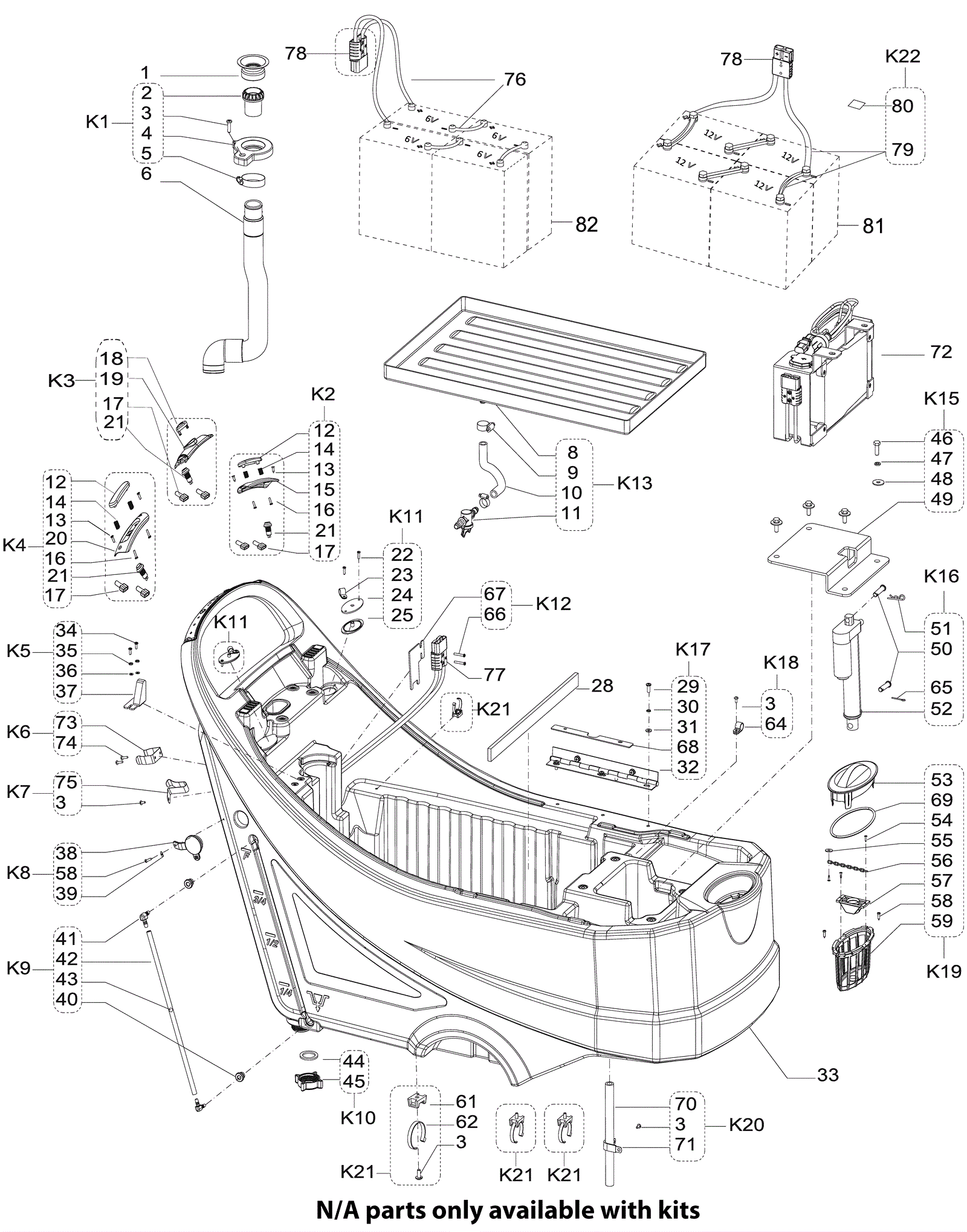

Solution Tank Assembly

#PartDescription ReqNotesAvailability
1 240-6369 DRAIN HOSE GASKET 1
2 N/A Not available 1 (suction hose connector) (only available with KIT1)
4 N/A Not available 1 (suction hose bracket) (only available with KIT1)
5 N/A Not available 1 (clamp) (only available with KIT1)
6 240-6367 Suction hose 1
8 240-1506 Battery tray 1 (included in KIT13)
9 N/A Not available 2 (clamp) (only available with KIT13)
10 N/A Not available 1 (hose f tray battery) (only available with KIT13)
11 240-1509 Battery drain valve 1 (included in KIT13)
12 240-6632 Switch button (plastic) 2 (included in KIT2, KIT4)
13 N/A Not available 4 (screw KA3.5 x 12) (only available with KIT2, KIT4)
14 N/A Not available 4 (spring) (only available with KIT2, KIT4)
15 N/A Not available 1 (left hand plastic safety switch cover) (only available with KIT2)
16 N/A Not available 4 (screw PA3 x 8) (only available with KIT2, KIT4)
17 N/A Not available 2 (terminal) (only available with KIT2, KIT3, KIT4)
18 N/A Not available 1 (rear switch plastic button) (only available with KIT3)
19 N/A Not available 1 (rear switch plastic cover) (only available with KIT3)
20 N/A Not available 1 (right hand plastic safety switch cover) (only available with KIT4)
21 240-6337 SWITCH 3 (included in KIT2, KIT3, KIT4)
22 999-9113 Screw M4-.7 x 16mm pan head phillips stainless steel 4 (included in KIT11)
23 N/A Not available 3 (clamp) (only available with KIT11)
24 N/A Not available 2 (splash wire guard) (only available with KIT11)
25 N/A Not available 2 (wire gasket) (only available with KIT11)
28 240-1508 Battery spacer 1
29 999-1257 Screw M6-1 x 16mm pan head Phillips 5 (included in KIT17)
30 N/A Not available 5 (spring washer) (only available with KIT17)
31 N/A Not available 5 (washer) (only available with KIT17)
32 240-1501 Hinge 1 (included with KIT17)
33 240-1505 Solution tank 84 liter (blue) 1
34 999-1898 Screw M4-.7 x 12mm pan head phillips stainless steel 4 (included in KIT5)
35 N/A Not available 2 (spring washer) (only available with KIT5)
36 N/A Not available 2 (washer) (only available with KIT5)
37 N/A Not available 1 (fixed block) (only available with KIT5)
38 N/A Not available 1 (rubber solution cap) (only available with KIT8)
39 N/A Not available 3 (washer) (only available with KIT8)
40 N/A Not available 2 (joints gasket) (only available with KIT9)
41 240-1500 90 degree brass elbow 2 (included in KIT9)
42 N/A Not available 1 (fresh water level hose) (only available with KIT9)
43 N/A Not available 1 (water level floating ball) (only available with KIT9)
44 N/A Not available 1 (outlet o-ring) (only available with KIT10)
45 N/A Not available 1 (outlet cover) (only available with KIT10)
46 999-9082 Screw M8-1.25 x 25mm hex head stainless steel 4 (included in KIT15)
47 N/A Not available 4 (spring washer) (only available with KIT15)
48 N/A Not available 4 (washer) (only available with KIT15)
49 240-1507 Actuator holder 1 (included in KIT15)
50 N/A Not available 2 (pin) (only available in KIT16)
51 N/A Not available 1 (split pin) (only available in KIT16)
52 240-1615 24V actuator 1 (included in KIT16)
53 240-6357 FILTER COVER 1 (included in KIT19)
54 N/A Not available 3 (screw TA3.5 x 12) (only available with KIT19)
55 N/A Not available 1 (washer) (only available with KIT19)
56 N/A Not available 1 (zipper) (only available with KIT19)
57 N/A Not available 1 (inlet pipe frame) (only available with KIT19)
58 N/A Not available 3 (screw ST4 x 15) (only available with KIT8, KIT19)
59 240-6358 FILTER SUPPORT 1 (included in KIT19)
61 N/A Not available 7 (flat tie holder) (only available with KIT21)
62 N/A Not available 10 (clamp) (only available with KIT21)
64 N/A Not available 1 (clamp) (only available with KIT18)
65 N/A Not available 1 (split pin) (only available with KIT16)
66 N/A Not available 2 (screw M4 x 25) (only available with KIT12)
67 N/A Not available 1 (splash guard) (only available with KIT12)
68 N/A Not available 1 (hinge fix plate) (only available with KIT17)
69 240-1510 Filter gasket cover 1 (included in KIT19)
70 N/A Not available 1 (PVC hose) (only available with KIT20)
71 N/A Not available 1 (clamp) (only available with KIT20)
72 240-1511 25amp onboard battery charger 1
73 N/A Not available 1 (drain hose clamp) (only available with KIT6)
74 N/A Not available 2 (screw ST4 x 16) (only available with KIT6)
75 N/A Not available 1 (drain hose clamp) (only available with KIT7)
76 240-1503 Battery connections 1
77 240-1504 24V input harness 1
78 240-1534 Battery connector 1
79 N/A Not available 1 (battery connections) (only available with KIT22)
80 N/A Not available 1 (walmart batteries connection wiring LABEL) (only available with KIT22)
81 N/A Not available 1 (4 x 12V batteries)
82 N/A Not available 1 (6 x 12V batteries)
KIT1 240-6290 SUCTION CONNECTOR FRAME KIT 1 (includes 2-5)
KIT2 240-7011 Left hand safety switch kit 1 (includes 12-17, 21)
KIT3 240-1512 Switch kit 1 (includes 17-19, 21)
KIT4 240-6631 Right hand safety switch kit 1 (includes 12-14, 16-17, 20-21)
KIT5 240-1513 Fixed block kit 1 (includes 34-37)
KIT6 240-6128 CLAMP DRAIN HOSE KIT 1 (includes 73-74)
KIT7 240-1521 Water hose holder kit 1 (includes 3, 75)
KIT8 240-1514 Solution lid tank kit 1 (includes 38-39, 58)
KIT9 240-1515 Water level pipe kit 1 (includes 40-43)
KIT10 240-6209 OUTLET COVER KIT 1 (includes 44-45)
KIT11 240-6127 SEAL PLATE KIT 2 (includes 22-25)
KIT12 240-1518 Splash guard kit 1 (includes 66-67)
KIT13 240-1517 Battery tray kit 1 (includes 8-11)
KIT15 240-1520 Actuator holder kit 1 (includes 46-49)
KIT16 240-7012 24V linear actuator 1 (includes 50-52, 65)
KIT17 240-1519 Hinge kit 1 (includes 29-32, 68)
KIT18 240-1522 Vacuum clamp wire kit 1 (includes 3, 64)
KIT19 240-6291 FILTER COVER KIT 1 (includes 53-59, 69)
KIT20 240-1516 Pipe drain kit 1 (includes 3, 70-71)
KIT21 240-2483 Wire clasps kit 7 (includes 3, 61-62)
KIT22 240-7013 Battery connections kit 1 (includes 79-80)
