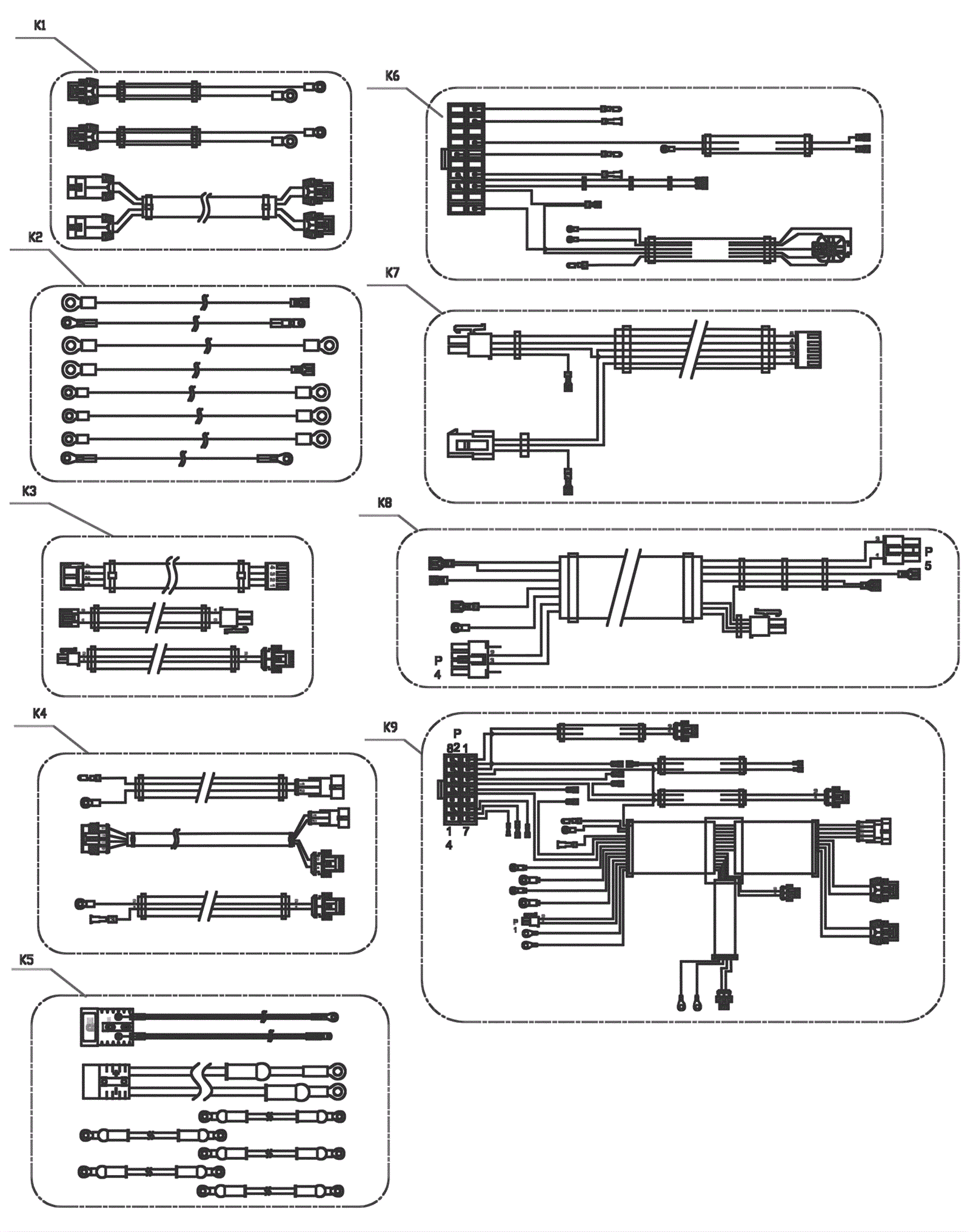

| # | Part | Description | Price | Req | Notes | Availability |
|---|
KIT1 |
240-9306
|
Brush and vacuum motor harness |
$51.71
|
1 |
|
usually ships 13-18 days |
KIT2 |
240-9307
|
Control unit harness kit |
$68.95
|
1 |
|
usually ships 13-18 days |
KIT3 |
240-9308
|
Dashboard harness kit |
$29.23
|
1 |
|
usually ships 13-18 days |
KIT4 |
240-9309
|
Seat sensor harness kit |
$45.97
|
1 |
|
usually ships 13-18 days |
KIT5A |
240-9310
|
Battery harness kit |
$250.36
|
1 |
(optional) (before 08/2023) |
usually ships 13-18 days |
KIT5B |
240-9311
|
Battery harness kit TPPL |
$280.56
|
1 |
(optional) (after 08/2023) |
usually ships 13-18 days |
KIT6 |
240-9312
|
Wiring harness drive pedal |
$31.01
|
1 |
|
usually ships 13-18 days |
KIT7 |
240-9313
|
Wiring harness proxemity sensor |
$13.31
|
1 |
|
usually ships 13-18 days |
KIT8 |
240-9314
|
Wiring harness can communication |
$25.62
|
1 |
|
usually ships 13-18 days |
KIT9 |
240-9315
|
Main wiring harness |
$145.30
|
1 |
|
usually ships 13-18 days |
