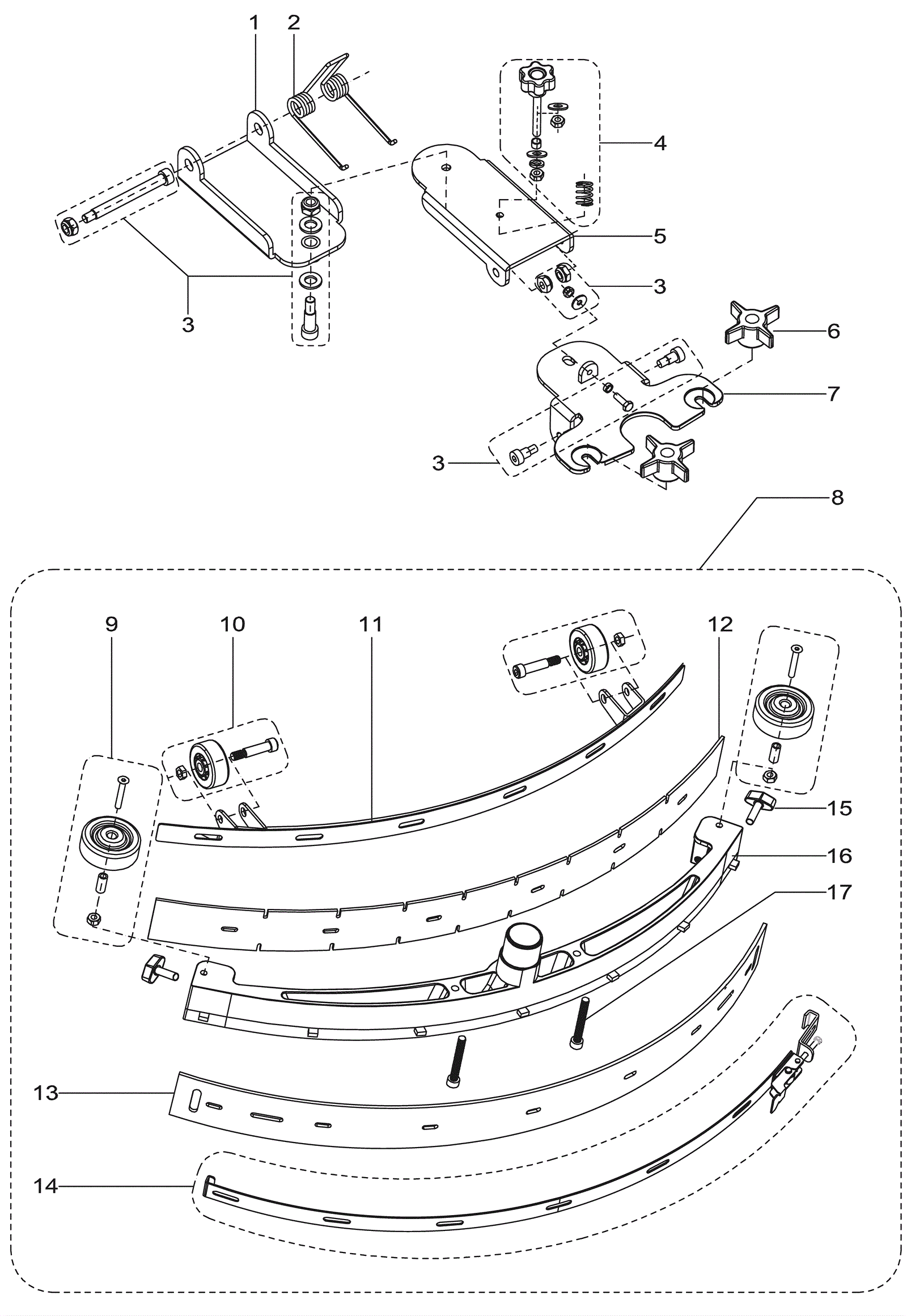

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
240-6363
|
FRONT-SQUEEGEE-SUPPORT |
1 |
|
|
2 |
240-2111
|
Spring |
1 |
|
|
3 |
240-6381
|
HARDWARE SQUEEGEE SUPPORT KIT |
1 |
|
|
4 |
240-6079
|
HAND WHEEL KIT |
1 |
|
|
5 |
240-6063
|
BACK-SQUEEGEE-SUPPORT |
1 |
|
|
6 |
240-0532
|
Knob M8 |
2 |
|
|
7 |
240-6062
|
SQUEEGEE-SUPPORT |
1 |
|
|
8 |
240-6076
|
20 inch squeegee kit |
1 |
(includes 9-12a, 13a, 14-17) |
|
9 |
240-2279
|
Bumper roller wheel kit |
2 |
|
|
10 |
240-1148
|
Squeegee Roll Wheel Kit |
2 |
|
|
11 |
240-6068
|
Squeegee strap front |
1 |
|
|
12a |
270-4931
|
Squeegee blade 32 inch front gum rubber |
1 |
|
|
12b |
240-6082
|
Squeegee blade 32 inch front PRIMOthane |
1 |
(optional) |
|
13a |
270-4932
|
Squeegee blade 32 inch rear gum rubber |
1 |
|
|
13b |
240-6083
|
Squeegee blade 32 inch rear PRIMOthane |
1 |
(optional) |
|
14 |
240-6078
|
Squeegee strap rear |
1 |
|
|
15 |
240-2143
|
Thumb screw |
2 |
|
|
16 |
240-2278
|
Squeegee weldment |
1 |
|
|
17 |
240-6070
|
SQUEEGEE SCREW |
2 |
|
|
