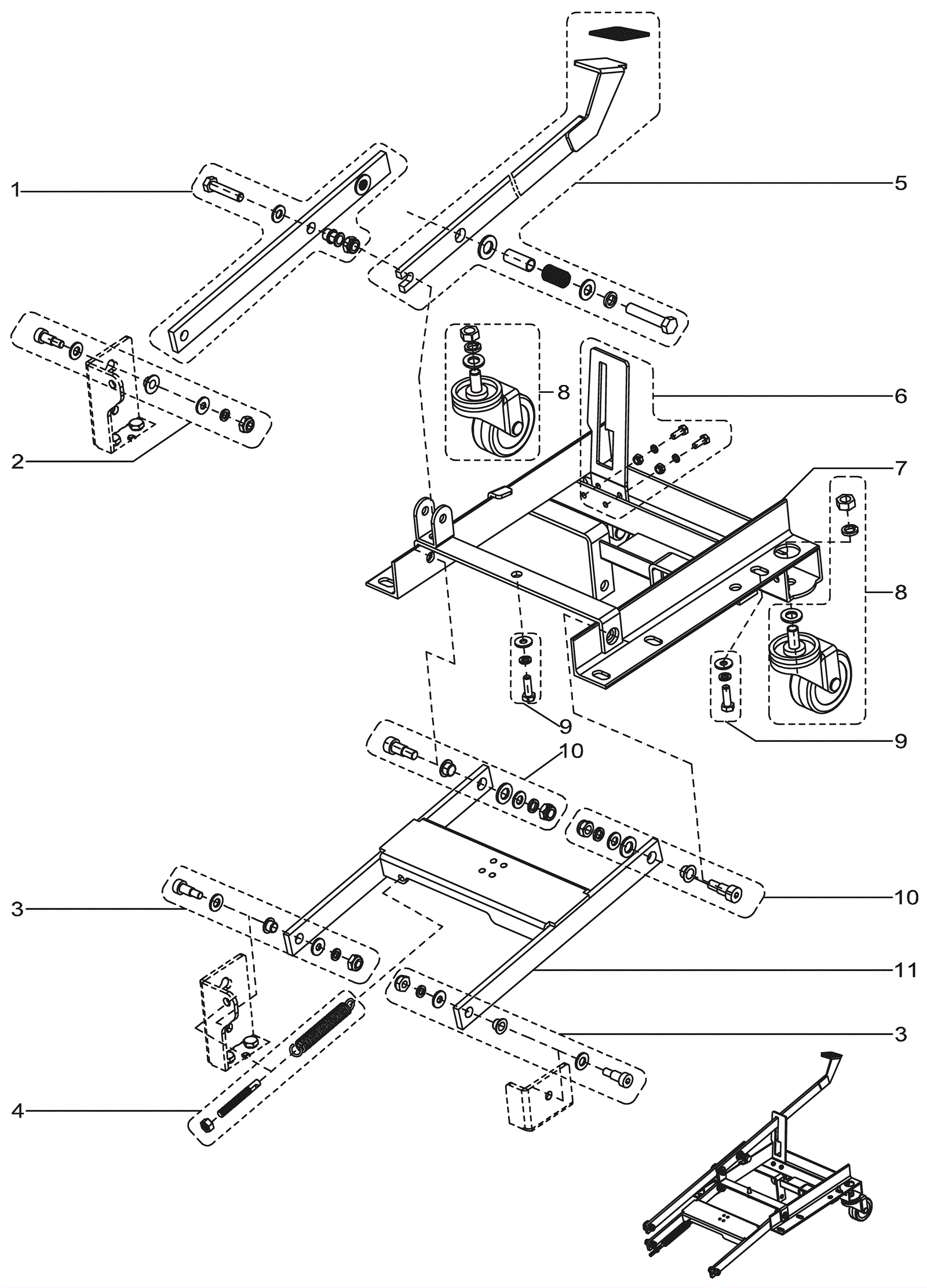

REN08028 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-6324 FRONT PEDAL BRUSH LIFTING KIT $33.43 1 usually ships 16-41 days
2 240-6320 SCREW KIT-1 $6.66 1 usually ships 16-41 days
3 240-6322 SCREW KIT-3 $6.66 2 usually ships 16-41 days
4 240-6325 SPRING KIT $8.26 1 usually ships 16-41 days
5 240-6326 BACK PEDAL BRUSH LIFTING KIT $59.31 1 ships same day
6 240-6327 PEDAL SUPPORT KIT $14.91 1 usually ships 16-41 days
7 240-6365 CHASSIS $213.55 1 usually ships 16-41 days
8 240-6328 3 INCH CASTER KIT $31.10 2 ships same day
9 240-6321 SCREW KIT-2 $6.66 1 usually ships 16-41 days
10 240-6323 SCREW KIT-4 $6.66 2 usually ships 16-41 days
11 240-6364 BRUSH LIFTING SUPPORT $83.78 1 usually ships 16-41 days
