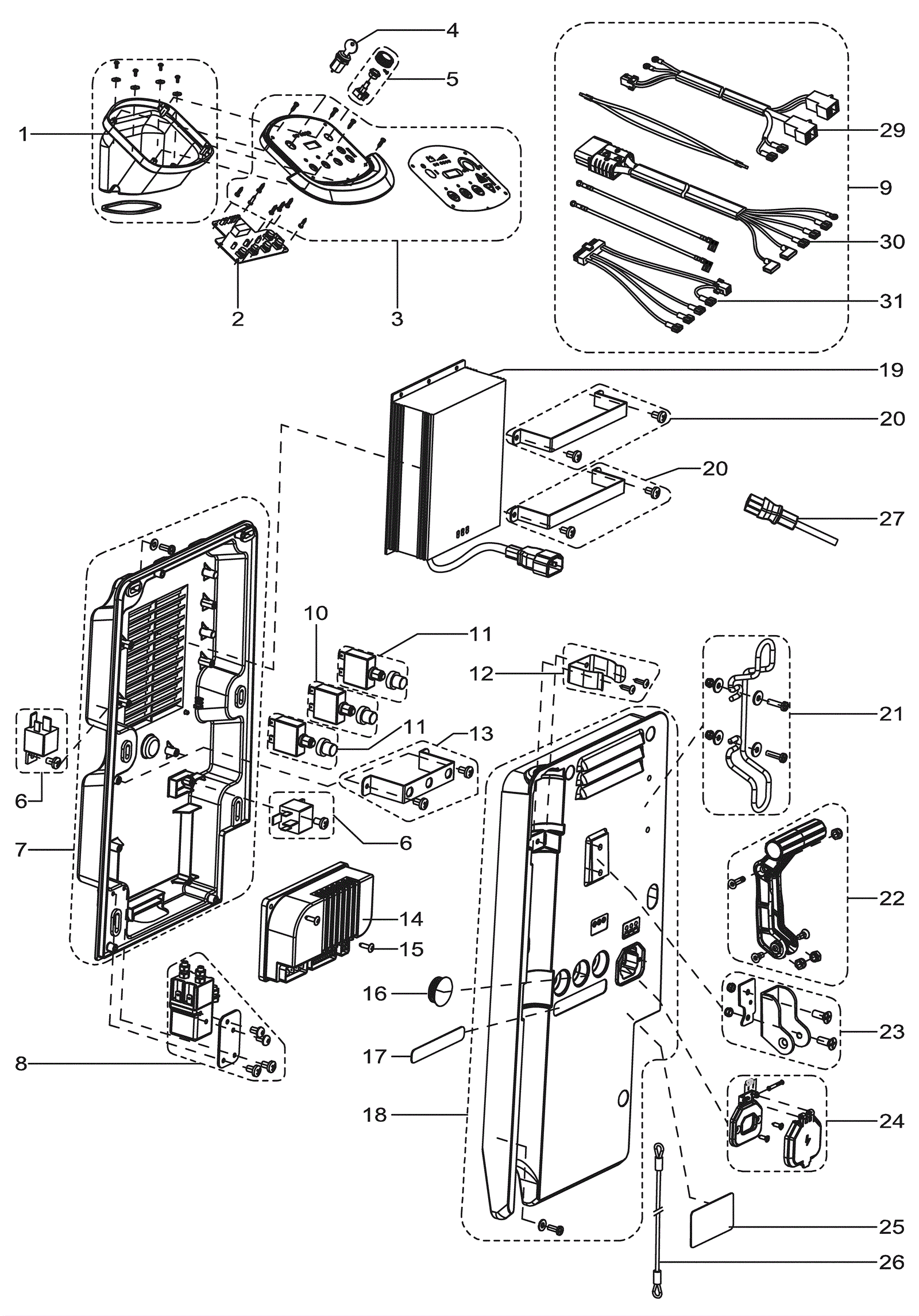

REN08028 Control and Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-6305 PCB BOX KIT $11.57 1 usually ships 16-41 days
2 240-6351 CONTROL PANEL BOARD $369.22 1 usually ships 16-41 days
3a 240-9155 Control panel without traction $25.76 1 (machines without traction) usually ships 16-41 days
3b 240-9156 Control panel with traction $25.76 1 (machines with traction) usually ships 16-41 days
4 572-3666 SWITCH KEY WITH CAP PKD $84.49 1 ships same day
5 240-6307 ADJUST SPEED KNOB KIT $41.54 1 (machines with traction) usually ships 16-41 days
6 240-6346 RELAY KIT $13.17 2 usually ships 16-41 days
7 240-6308 CONTROL BOX BOTTOM KIT $16.50 1 usually ships 16-41 days
8 240-6347 ELECTROMAGNETIC SWITCH KIT $87.54 1 usually ships 16-41 days
9a 240-6349 HARNESS MACHINE KIT WO TRACTIO $205.46 1 (machines without traction) (includes 29, 30a, 31a) usually ships 16-41 days
9b 240-6376 HARNESS MACHINE KIT W TRACTION $229.88 1 (machines with traction) (includes 29, 30b, 31b) usually ships 16-41 days
10 240-6375 CIRCUIT BREAKER KIT W TRACTION $11.57 1 (machines with traction) usually ships 16-41 days
11 240-6348 CIRCUIT BREAKER KIT $14.91 2 usually ships 16-41 days
12 240-6128 CLAMP DRAIN HOSE KIT $6.66 1 usually ships 16-41 days
13 240-6309 FIX BRACKET KIT $8.26 1 usually ships 16-41 days
14 240-6341 ELECTRONIC BOARD W TRACT SYS $311.50 1 (machines with traction) usually ships 16-41 days
15 240-5339 SCREW $9.98 2 ships same day
16 472-1485 SEALING PLUG BIG $8.26 1 (machines without traction) usually ships 16-41 days
17a 240-6289 RESET LABEL WITHOUT TRACTION $6.66 1 (machines without traction) usually ships 16-41 days
17b 240-6371 RESET LABEL WITH TRACTION $6.66 1 (machines with traction) usually ships 16-41 days
18 240-6310 CONTROL BOX COVER KIT $21.42 1 (includes 16-17) usually ships 16-41 days
19a 240-6350 CHARGER 24V 10A $614.74 1 usually ships 16-41 days
19b 240-6352 CHARGER 24V 13A $802.99 1 (optional) usually ships 16-41 days
20 240-6311 CHARGER FIX BRACKET KIT $14.91 2 usually ships 16-41 days
21 240-6131 CABLE SUPPORT KIT $9.98 1 usually ships 16-41 days
22 240-6130 HANDLE LIFT KIT $9.98 1 usually ships 16-41 days
23 240-6129 HAND BRACKET KIT $9.98 1 usually ships 16-41 days
24 240-6312 CHARGER SOKET KIT $6.66 1 usually ships 16-41 days
25 N/A Not available Call for price 1 (plate) usually ships 3-26 days
26 240-6366 CABLE SQUEEGEE LIFT $8.26 1 usually ships 16-41 days
27 240-6018 Charger cable $21.42 1 ships same day
29 240-6342 HARNESS BRUSH MOTER $51.21 1 usually ships 16-41 days
30a 240-6344 HARNESS CONNECTOR WO TRACTION $60.76 1 (machines without traction) usually ships 16-41 days
30b 240-6339 HARNESS CONNECTOR W TRACTION $59.31 1 (machines with traction) usually ships 16-41 days
31a 240-6345 HARNESS CONTROL CRT WO TRACT $14.91 1 (machines without traction) usually ships 16-41 days
31b 240-6340 HARNESS CONTROL CRT W TRACTION $16.50 1 (machines with traction) usually ships 16-41 days
