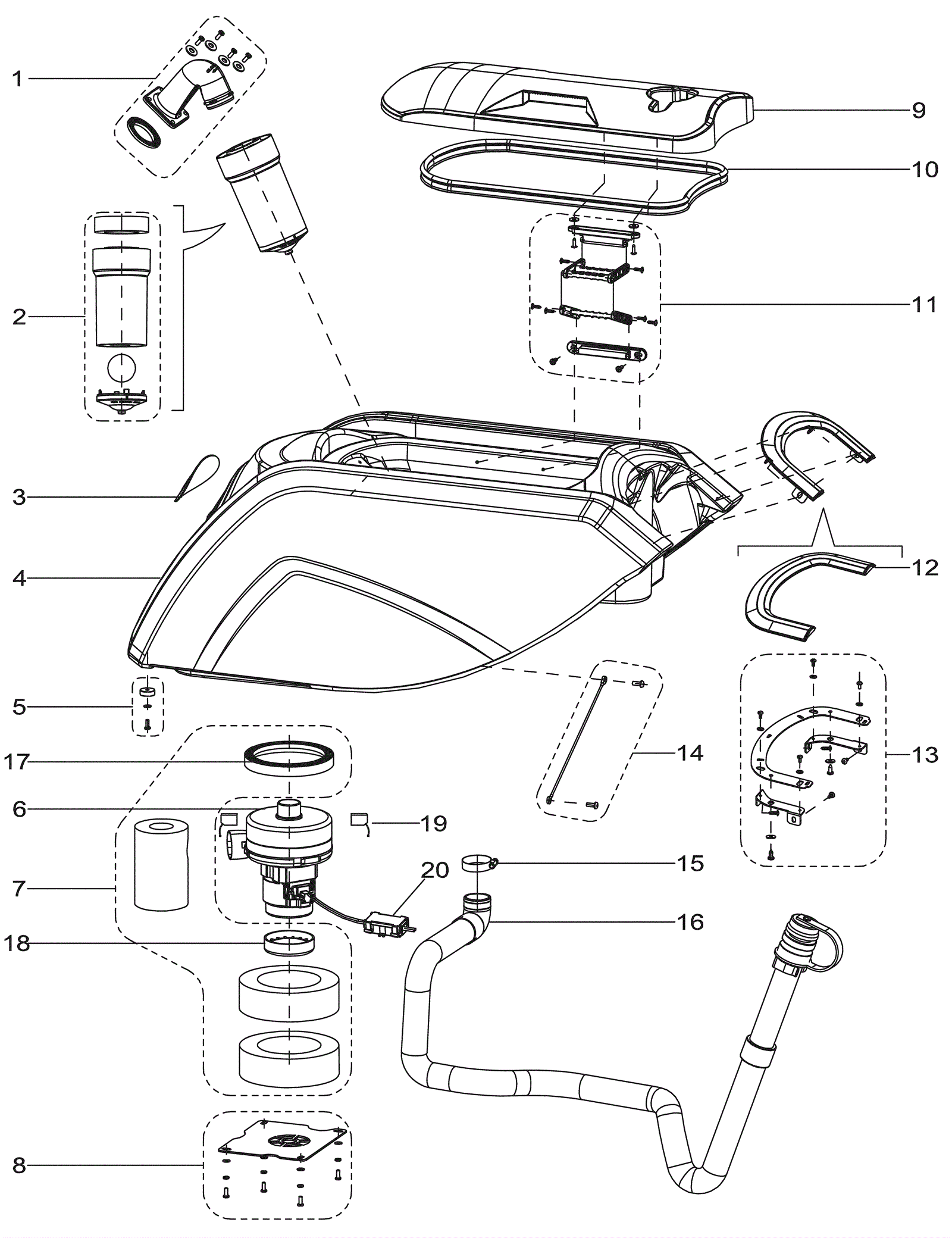

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
240-6298
|
ELBOW ADAPTOR KIT |
1 |
|
|
2 |
240-6208
|
Float kit |
1 |
|
|
3 |
N/A
|
Not available |
1 |
(logo decal) |
|
4 |
240-6354
|
RECOVERY TANK |
1 |
|
|
5 |
240-6299
|
RUBBER GASKET KIT |
1 |
|
|
6 |
240-6199
|
VACUUM MOTOR |
1 |
|
|
7 |
270-5024
|
Vacuum motor gasket kit |
1 |
(includes 17-18) |
|
8 |
270-5025
|
Vacuum motor cover kit |
1 |
|
|
9 |
240-9154
|
Recovery tank lid (dark grey) |
1 |
|
|
10 |
240-6188
|
Gasket |
1 |
|
|
11 |
240-6302
|
CONNECTION FRAME KIT |
1 |
|
|
12 |
N/A
|
Not available |
1 |
(decorative panel) |
|
13 |
240-6303
|
DECORATIVE PANEL BRACKET KIT |
1 |
|
|
14 |
240-6304
|
RECOVERY TANK CABLE KIT |
1 |
|
|
15 |
270-5017
|
Clamp |
1 |
|
|
16 |
240-6368
|
Drain hose |
1 |
|
|
17 |
240-5340
|
GASKET |
1 |
|
|
18 |
240-6201
|
TOP GASKET SUCTION MOTOR |
1 |
|
|
19 |
240-6200
|
CARBON BRUSH KIT |
2 |
|
|
20 |
270-5021
|
Waterproof case |
1 |
|
|
