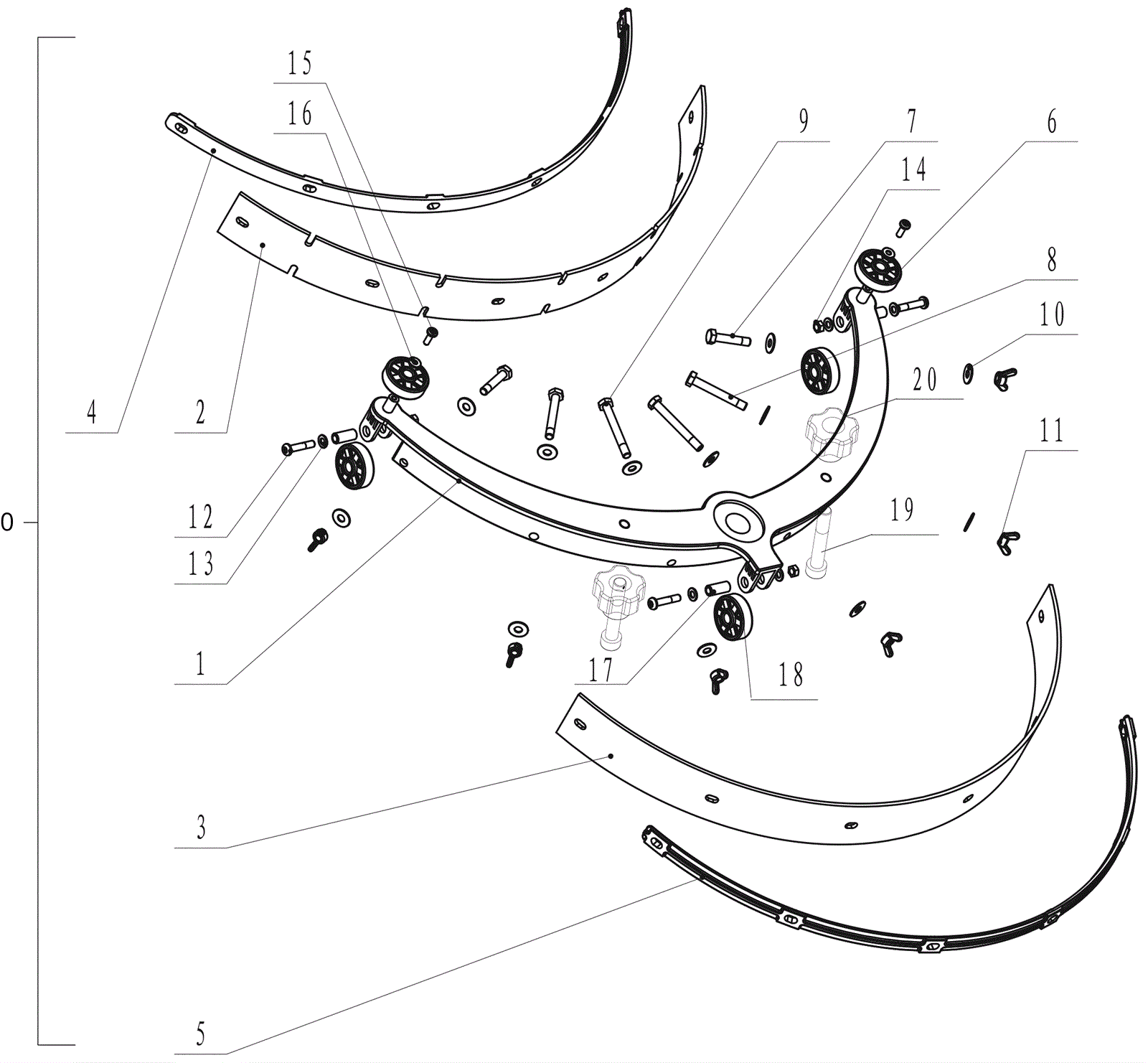

X15B Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
0 240-2141 Squeegee assembly $79.08 1 (includes 1-20) ships same day
1 240-2259 Squeegee bracket $48.32 1 usually ships 16-41 days
2a 240-2103 Squeegee blade front gum rubber $11.26 1 ships same day
2b 270-8570 Squeegee blade front urethane $25.51 1 ships same day
3a 240-6022 Squeegee blade rear gum rubber $11.26 1 ships same day
3b 270-8572 Squeegee blade rear urethane $25.51 1 ships same day
4 240-2260 Front squeegee strap $9.71 1 ships same day
5 240-2261 Rear squeegee strap $9.71 1 usually ships 16-41 days
6 240-2262 Squeegee wheel $11.26 2 ships same day
7 240-2263 Bolt M6 x 30 hex $9.71 2 usually ships 16-41 days
8 240-2264 Bolt M6 x 45 hex $9.71 2 usually ships 16-41 days
9 240-2265 Bolt M6 x 50 hex $9.71 2 usually ships 16-41 days
10 240-2150 Washer $9.71 12 usually ships 16-41 days
11 240-2266 Wing nut $9.71 6 usually ships 16-41 days
12 272-7569 Screw M5 x 35 $9.71 3 usually ships 1-5 days
13 240-0643 Washer M5 plain $9.71 6 usually ships 16-41 days
14 240-2170 Nut M5 lock $8.53 3 usually ships 18-27 days
15 240-0393 Screw M4 x 12mm $6.36 2 ships same day
16 240-0463 Washer M4 plain finish $9.71 2 usually ships 16-41 days
17 240-2267 Bushing $11.26 3 usually ships 16-41 days
18 240-2262 Squeegee wheel $11.26 3 ships same day
19 240-2137 Screw M8 x 55mm hex socket $9.71 2 usually ships 16-41 days
20 240-6003 Knob $6.48 2 usually ships 16-41 days
