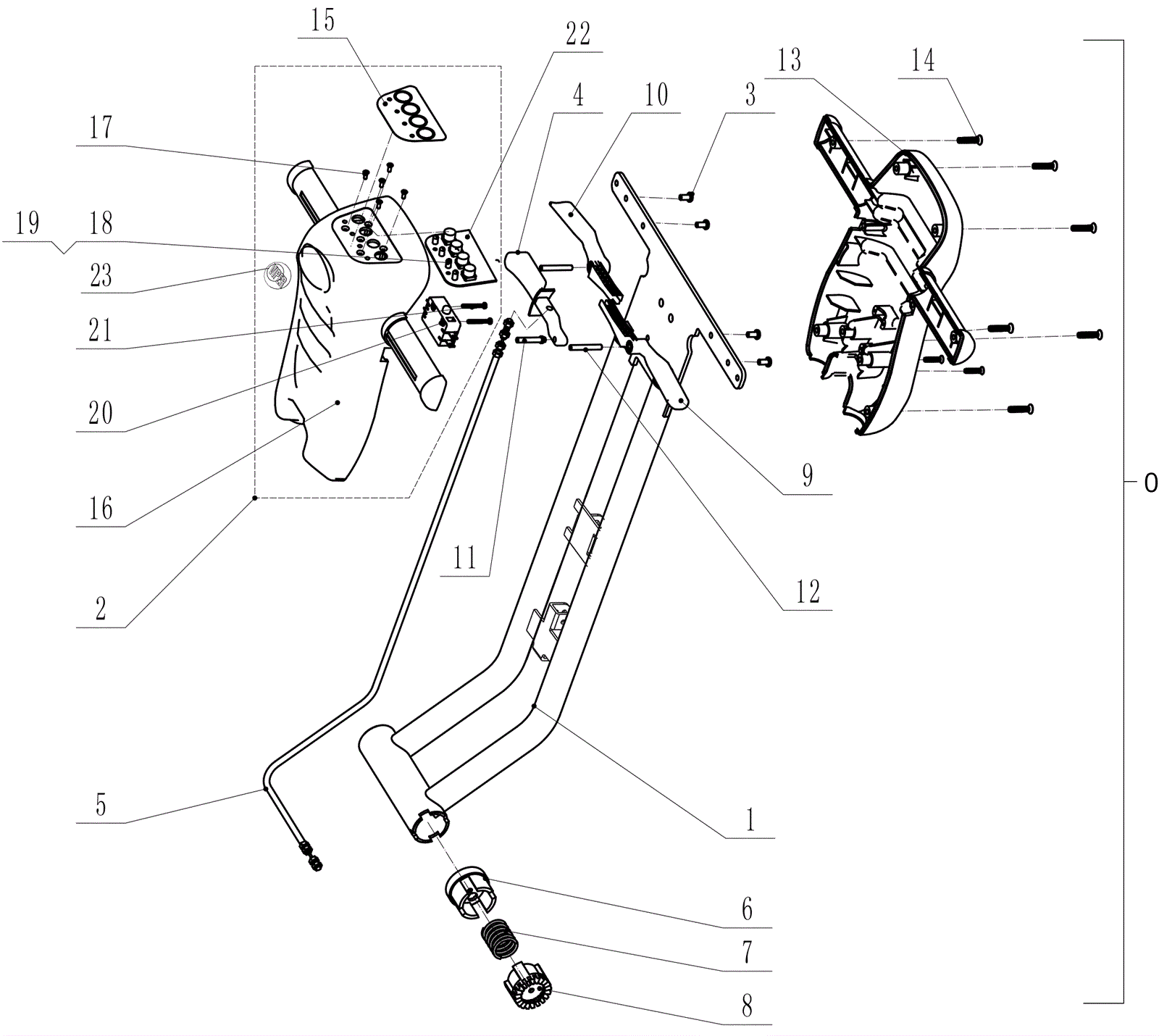

Handle Assembly

#PartDescription ReqNotesAvailability
0 240-2144 Handle assembly kit 1 (includes 1-23)
1 240-2223 Metal handle assembly 1
2 240-2224 Front control housing kit 1 (includes 15-23)
3 999-1274 Screw M5-.8 x 12mm flat head phillips stainless steel 4
4 240-2225 Trigger handle adjustment 1
5 240-2226 Handle adjustment cable 1
6 240-2227 Guide gear bushing 1
7 240-2228 Handle gear spring 1
8 240-2229 Handle adjustment gear 1
9 240-2231 Left and right hand trigger kit 1
10 240-2231 Left and right hand trigger kit 1
11 240-2232 Handle adjustment pin 1
12 240-2233 Trigger pin 2
13 240-2234 Rear control housing 1
14 272-7570 Screw M5 x 25 8
15 240-2235 Switch decal 1
16 240-2236 Front control housing 1
17 999-1947 Screw M4-.7 x 50 hex stainless steel 5
18 240-2237 Insulation bolt 5
19 240-2238 Nut 5
20 272-8640 Switch 1
21 240-0811 Screw M3 x 20mm 2
22 240-2239 Circuit board 1
23 240-6608 Housing decal 1
