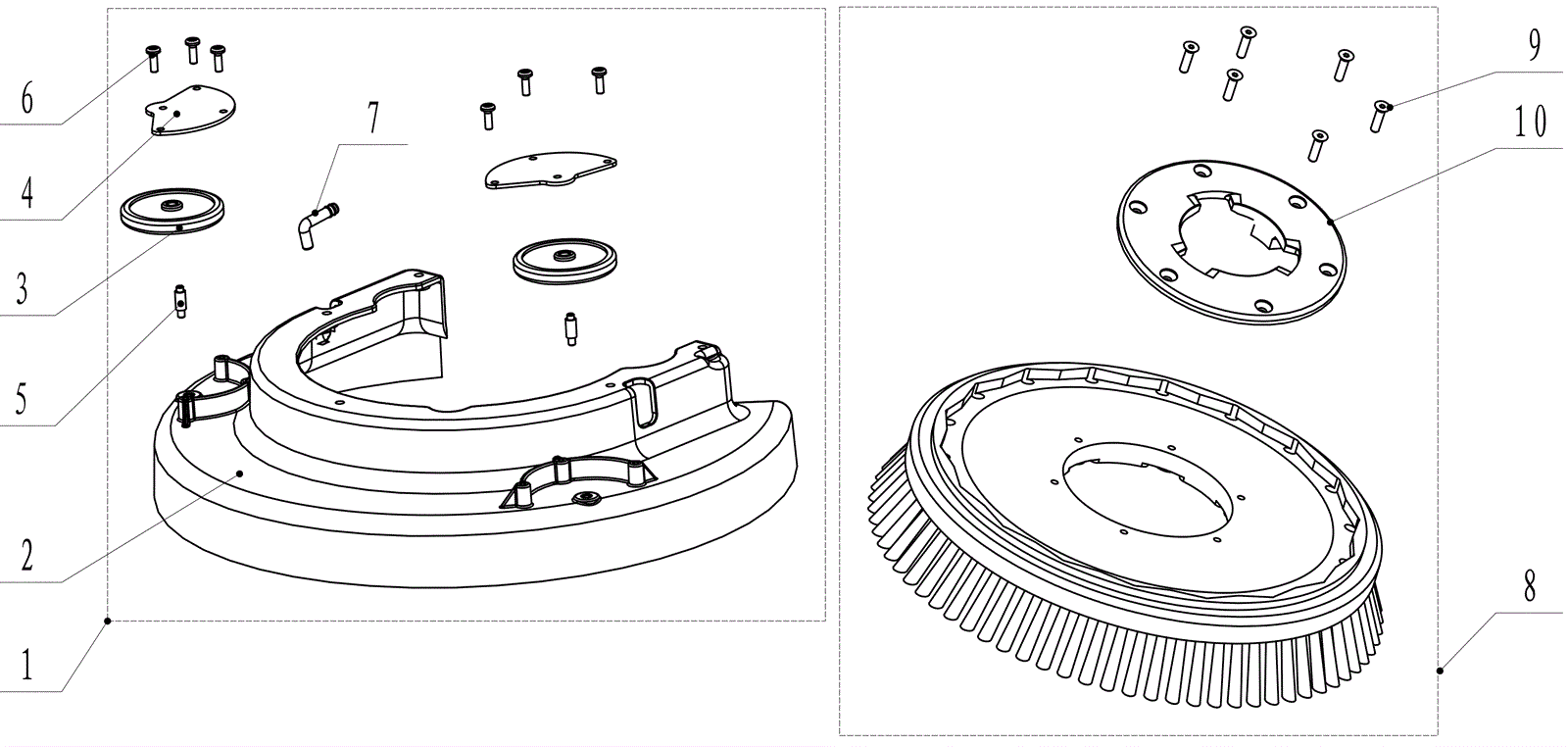

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
240-2140
|
Skirt assembly |
1 |
(includes 2-7) |
|
2 |
240-2216
|
Brush skirt |
1 |
|
|
3 |
240-2217
|
Bumper wheel |
2 |
|
|
4 |
240-2218
|
Wheel cover |
2 |
|
|
5 |
240-2219
|
Shaft |
2 |
|
|
6 |
240-2220
|
Screw |
6 |
|
|
7 |
270-8563
|
Elbow |
1 |
|
|
8a |
240-2128
|
15 inch brush |
1 |
(includes 9-10) |
|
8b |
996-0551
|
14 inch heavy grit stripping brush - 80 grit |
1 |
|
|
8c |
996-0569
|
14 inch medium grit scrubbing brush - 180 grit |
1 |
|
|
8d |
996-0531
|
14 inch lite grit scrubbing brush - 500 grit |
1 |
|
|
8e |
996-0483
|
14 inch polypropelene scrubbing brush |
1 |
|
|
8f |
996-3209
|
14 inch nylon scrubbing brush |
1 |
|
|
8g |
996-0074
|
14 inch Pad driver w/ riser |
1 |
|
|
8h |
270-8505
|
15 inch pad driver |
1 |
(includes 9-10) |
|
9 |
240-0439
|
Screw 1/4 x 1 self-tapping |
6 |
|
|
10a |
240-2222
|
Clutch plate |
1 |
(OEM) |
|
10b |
991-2208
|
3 hole clutch plate (formerly 6 hole) |
1 |
(NON-OEM) |
|
