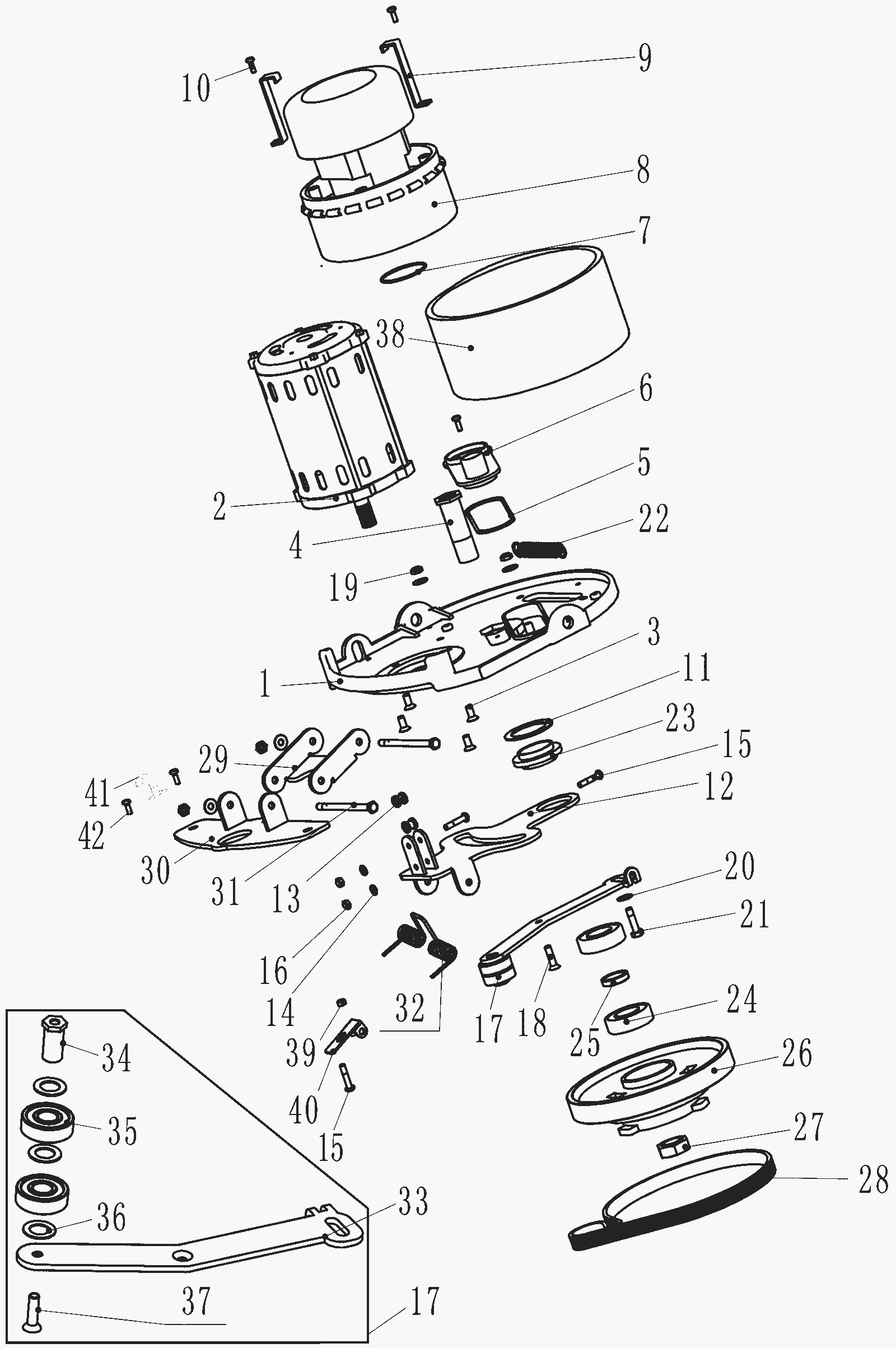

X15B Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-2199 Motor mount plate $70.72 1 usually ships 16-41 days
2 240-2200 Brush motor assembly $217.37 1 usually ships 16-41 days
3 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 4 ships same day
4 240-2201 Drive belt bolt $20.86 1 usually ships 16-41 days
5 240-2202 Large o-ring $9.71 1 usually ships 16-41 days
6 240-2203 Vacuum sealing cover $9.71 1 usually ships 16-41 days
7 240-2204 Small o-ring $9.71 1 ships same day
8 240-2131 Vacuum motor assembly $116.24 1 ships same day
9 240-2203 Vacuum sealing cover $9.71 2 usually ships 16-41 days
10 240-0393 Screw M4 x 12mm $6.36 3 ships same day
11 270-8550 Washer $8.04 1 usually ships 16-41 days
12 270-8551 Squeegee rotate plate $22.41 1 usually ships 16-41 days
13 270-8552 Squeegee guide wheel $6.48 2 usually ships 16-41 days
14 240-0643 Washer M5 plain $9.71 2 usually ships 16-41 days
15 999-1425 Screw M5-.8 x 25mm pan head stainless steel $1.01 3 ships same day
16 240-2170 Nut M5 lock $8.53 2 usually ships 18-27 days
17 240-2206 Belt adjustment kit $48.32 1 (includes 33-37) usually ships 16-41 days
18 272-8065 Screw M6 x 25 phillips stainless steel $9.71 1 usually ships 16-41 days
19 999-9131 Nut M6 x 1 nylon lock stainless steel $0.99 4 ships same day
20 240-2150 Washer $9.71 3 usually ships 16-41 days
21 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 1 ships same day
22 270-8553 Spring $6.48 1 usually ships 16-41 days
23 270-8554 Squeegee rotate bushing $20.86 1 usually ships 16-41 days
24 240-2207 Bearing $17.90 2 usually ships 16-41 days
25 270-8555 Bushing $9.71 1 usually ships 16-41 days
26 240-2208 Drive hub $23.95 1 usually ships 16-41 days
27 240-2209 Nut $5.50 1 usually ships 16-41 days
28 240-2210 Drive belt $19.15 1 usually ships 16-41 days
29 240-2211 Squeegee lift plate $12.83 1 usually ships 16-41 days
30 270-8556 Squeegee bracket plate $25.51 1 usually ships 16-41 days
31 240-2212 Squeegee lift rotate bolt $6.48 2 usually ships 16-41 days
32 240-2213 Torsion spring $12.83 1 usually ships 16-41 days
33 270-8557 Belt adjustment plate $11.26 1 usually ships 16-41 days
34 270-8558 Bearing bolt $6.48 1 usually ships 16-41 days
35 270-8559 6201 bearing (OBSOLETE) Call for price 2 (only available with 17) usually ships 16-41 days
36 270-8560 Washer (OBSOLETE) $4.73 3 (only available with 17) usually ships 16-41 days
37 270-8561 Screw M6 x 20mm (OBSOLETE) $4.73 1 (only available with 17) usually ships 16-41 days
38 240-2214 Silencer sponge $9.71 1 usually ships 16-41 days
39 240-2057 Nut M5 $9.71 1 usually ships 16-41 days
40 240-2215 Pressure adjustment plate $12.83 1 usually ships 16-41 days
41 270-8562 Drain hose clamp $5.50 1 usually ships 16-41 days
42 240-6397 SCREW PH M4 X 8 $9.71 2 usually ships 16-41 days
