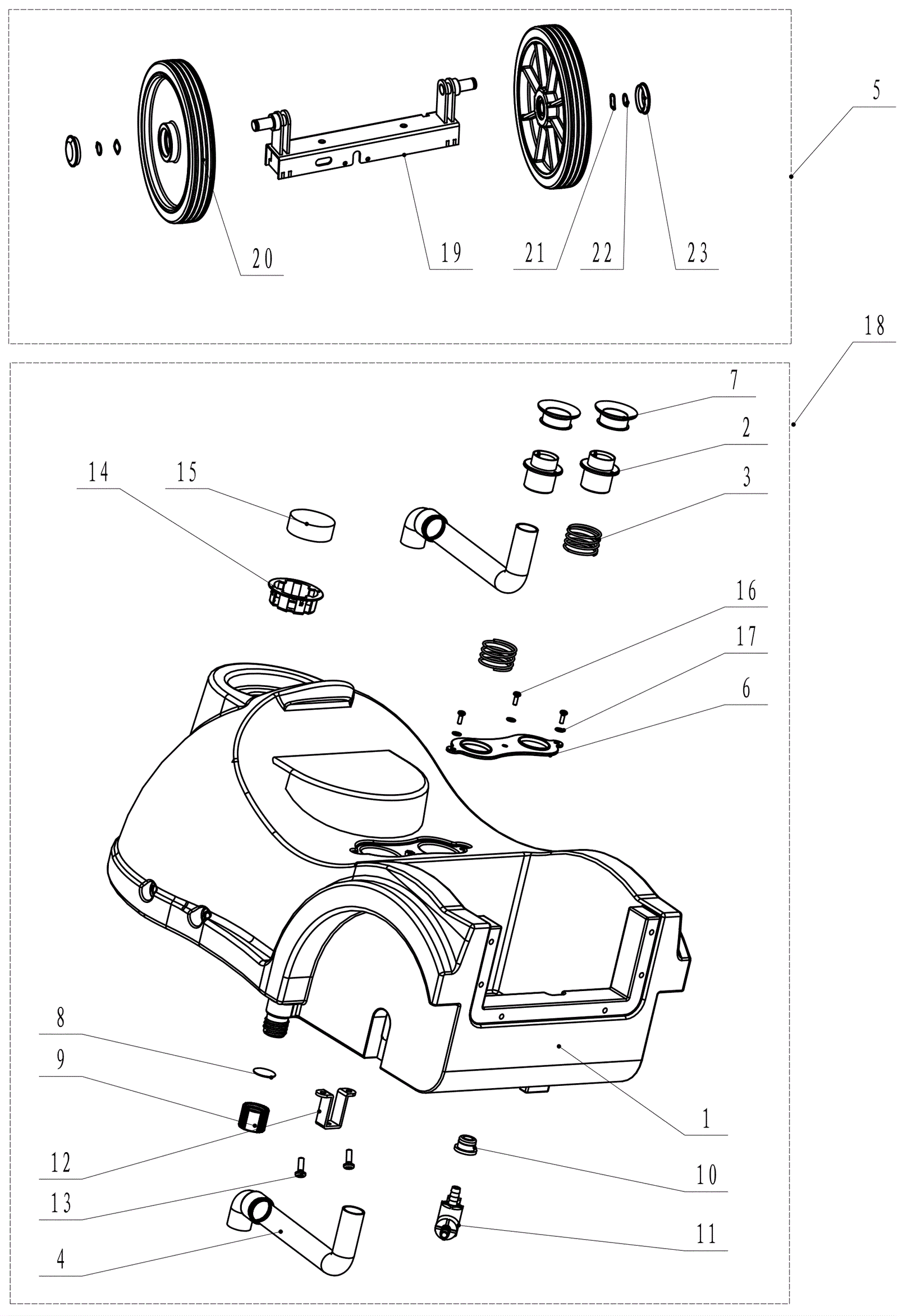

Solution Tank Assembly

#PartDescription ReqNotesAvailability
1 240-2182 Solution tank 1
2 240-9326 Vacuum hose connector 2
3 240-2184 Spring 2
4 240-2185 Vacuum hose 2
5 240-2134 Wheel and axle kit 1 (includes 19-23)
6 240-2045 Plastic plate 1
7 240-2187 Rubber seal 2
8 240-2188 Gasket 1
9 240-2189 Drain cap 1
10 240-2190 Rubber bushing 1
11 240-5973 Solution valve 1
12 240-2191 Cable bracket 1
13 240-0377 Screw M6 x 16mm 2
14 240-2192 Water tank inlet 1
15 240-2193 Water tank inlet filter 1
16 240-0393 Screw M4 x 12mm 3
17 240-0463 Washer M4 plain finish 3
18 240-2132 Solution tank kit 1 (includes 1-4, 6-17)
19 240-2194 Wheel axle 1
20 240-2195 10 inch drive wheel 2
21 240-2196 Wave washer 2
22 240-2197 Snap spring 2
23 240-2198 Wheel cap 2
