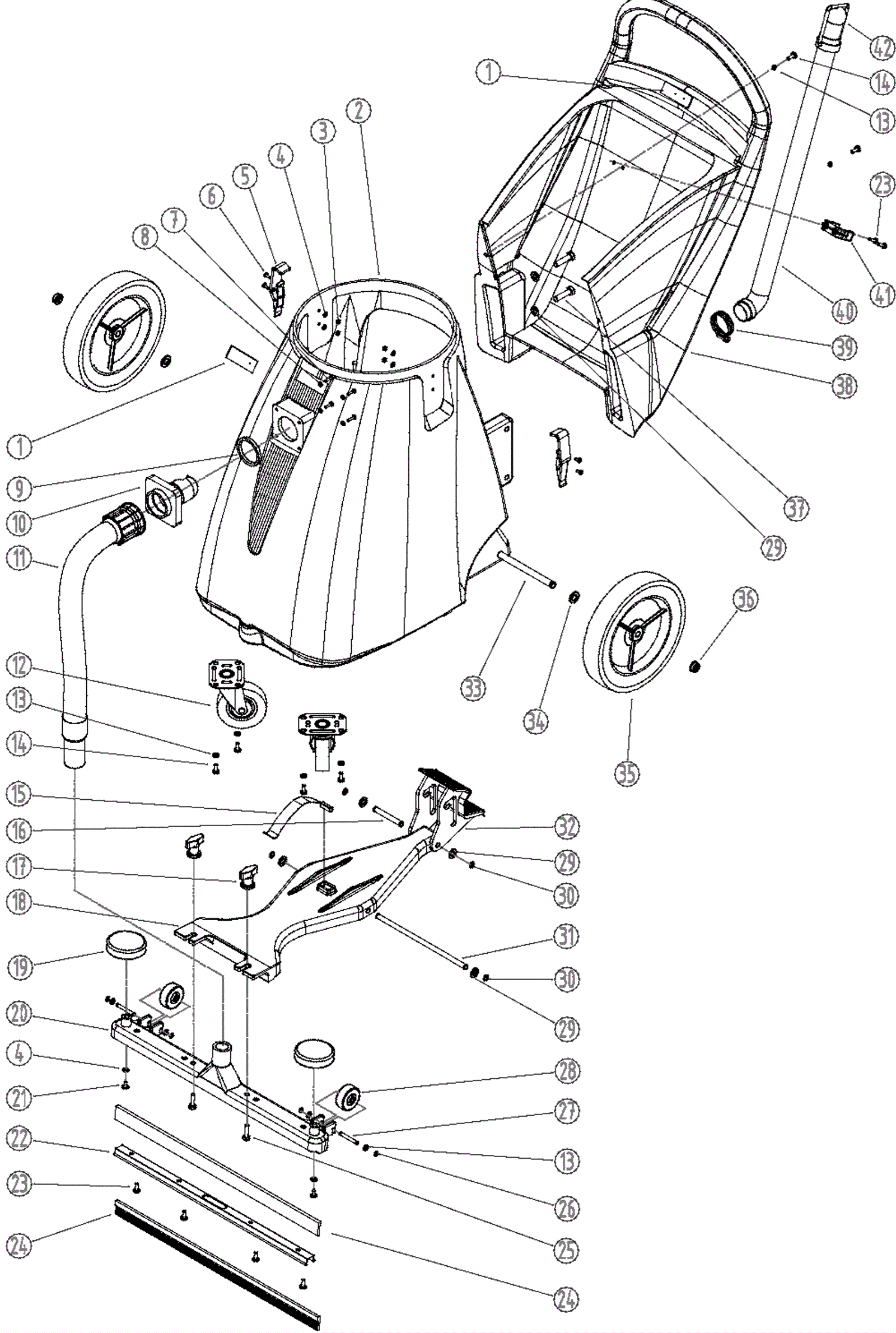

X18WD Tank Assembly

#PartDescription ReqNotesAvailability
1 240-6606 Logo decal 2 usually ships 13-16 days
2 240-5327 TANK 1 usually ships 13-16 days
3 240-0522 Nut M5 lock 4 usually ships 18-27 days
4 240-0068 Plain washer 6 usually ships 13-16 days
5 240-0282 Metal latch 2 usually ships 13-16 days
6 240-0545 Screw M5 x 20mm 4 usually ships 13-16 days
7 240-0594 Screw M4 x 20mm self-tapping 4 usually ships 13-16 days
8 999-9089 Washer M4 flat stainless steel 4 usually ships 11-14 days
9 240-0596 Gasket 1 usually ships 13-16 days
10 240-0597 Intake 1 usually ships 13-16 days
11 240-0011 Hose 1 usually ships 13-16 days
12 240-0301 3 inch caster wheel 2 usually ships 13-16 days
13 240-0037 Washer 10 usually ships 13-16 days
14 999-1383 Screw M6-1 x 16mm hex head stainless steel 6 usually ships 8-9 days
15 240-0598 Leaf spring 1 usually ships 13-16 days
16 240-0599 Axle 1 usually ships 13-16 days
17 240-0536 Knob 2 usually ships 13-16 days
18 240-0281 Pick-up tool mounting plate 1 usually ships 13-16 days
19 240-0537 Bumper wheel 2 usually ships 13-16 days
20a 240-0600 24 inch pick-up tool 1 usually ships 13-16 days
20b 240-0601 30 inch pick-up tool 1 usually ships 13-16 days
21 240-0602 Screw M5 x 10mm self-tapping 2 usually ships 13-16 days
22a 240-0603 24 inch blade clamp 1 usually ships 13-16 days
22b 240-0604 30 inch blade clamp 1 usually ships 13-16 days
23 999-1986 Screw M5-.8 x 14mm pan head phillips 6 usually ships 11-14 days
24a 240-0540 Squeegee blade 24 inch 2 usually ships 30-32 days
24b 240-0012 Squeegee blade 30 inch (blue) 2 usually ships 13-16 days
25 240-0330 Screw M8 x 25mm 2 usually ships 13-16 days
26 240-0605 Lock snap ring 4 usually ships 13-16 days
27 240-0606 Wheel axle 2 usually ships 13-16 days
28 240-0607 2 inch guide wheel 2 usually ships 13-16 days
29 240-0608 Washer 8 usually ships 13-16 days
30 240-0609 Lock snap ring 4 usually ships 13-16 days
31 240-0610 Mounting plate axle 1 usually ships 13-16 days
32 240-0611 Pedal 1 usually ships 13-16 days
33 240-0612 Pedal axle 1 usually ships 13-16 days
34 240-0613 Washer 2 usually ships 13-16 days
35 240-5330 WHEEL 10IN -SSS- 2 usually ships 13-16 days
36 240-0614 Axle cap 2 usually ships 13-16 days
37 240-0739 Screw M10 x 30mm 6 usually ships 13-16 days
38 240-0547 Handle 1 usually ships 13-16 days
39 240-0189 Hose clamp 1 usually ships 13-16 days
40 240-0188 Drain hose 1 usually ships 30-32 days
41 240-0616 Drain hose clamp 1 usually ships 13-16 days
42 240-0551 Drain hose plug 1 usually ships 13-16 days
