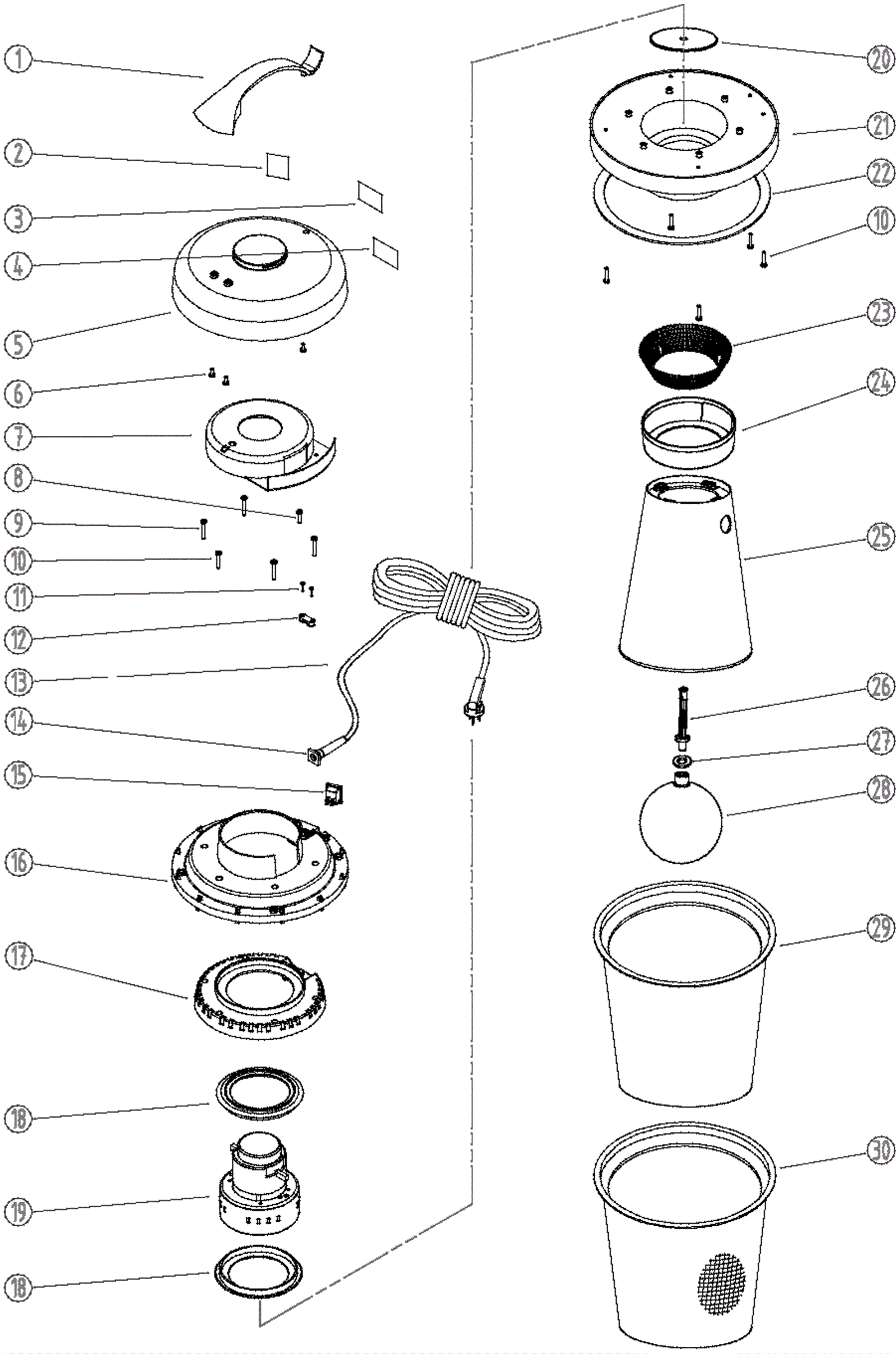

X18WD Vacuum Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-0574 Handle $9.71 1 ships same day
2 240-0110 Read manual decal $12.83 1 usually ships 16-41 days
3 240-6603 Serial tag (OBSOLETE) Call for price 1 usually ships 16-41 days
4 240-6604 Warning decal (OBSOLETE) Call for price 1 usually ships 16-41 days
5 240-0576 Vacuum head cover $23.95 1 ships same day
6 240-0057 Screw M5 x 12mm self-tapping $9.71 3 usually ships 16-41 days
7 240-0283 Upper motor cover $12.83 1 usually ships 16-41 days
8 999-1555 Screw M5-.8 x 20mm pan head phillips zinc plated $0.99 1 ships same day
9 999-1563 Screw M5-.8 x 50mm pan head phillips zinc plated $0.99 4 ships same day
10 240-0577 Screw M5-.8 x 44mm pan head $9.71 6 ships same day
11 999-1180 Screw M3-.5 x 16mm pan head stainless steel $0.99 2 ships same day
12 240-0052 Block $9.71 1 usually ships 1-5 days
13a 240-0296 14/3 power cord 50 foot $99.61 1 (OEM) ships same day
13b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) ships same day
14 240-0578 Grommet $9.71 1 ships same day
15 240-0297 Switch $14.51 1 ships same day
16 240-0579 Motor mounting cover $14.51 1 usually ships 16-41 days
17 240-0580 Motor mounting plate $14.51 1 ships same day
18 240-0582 Motor gasket $11.26 2 ships same day
19 240-0298 120V vacuum motor $327.83 1 ships same day
20 240-0589 Seal plate $11.26 1 ships same day
21 240-0306 Motor mounting base $20.86 1 ships same day
22 240-0307 Gasket $11.26 1 ships same day
23 240-0552 Filter screen $16.07 1 ships same day
24 240-0308 Water guard $16.07 1 ships same day
25 240-0299 Cage $12.83 1 ships same day
26 240-0590 Ball pole $11.26 1 ships same day
27 240-0591 O-ring $9.71 1 ships same day
28 240-0300 Float ball $9.71 1 ships same day
29 240-0534 Vacuum filter $23.95 1 ships same day
30 240-0592 Bubble buster $25.51 1 ships same day
