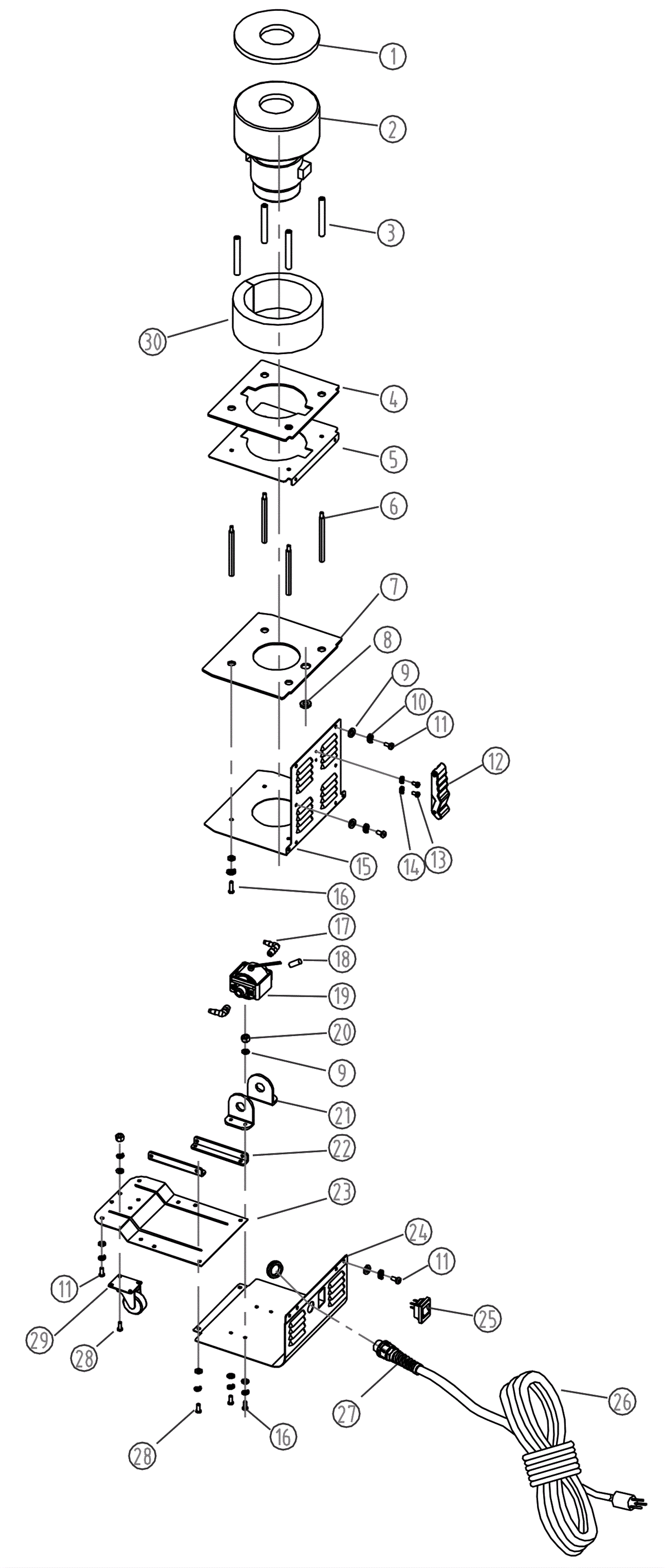

TP130SP Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-6442 GASKET VAC MOTOR $11.26 1 usually ships 16-41 days
2 240-0298 120V vacuum motor $327.83 1 ships same day
3 240-6445 SPACER VAC MOTOR $5.26 4 usually ships 16-41 days
4 240-6440 GASKET VAC MOTOR $5.50 1 usually ships 16-41 days
5 240-6439 MOUNTING PLATE VAC MT $9.71 1 usually ships 16-41 days
6 240-6446 SPACER VAC PLATFORM $5.26 4 usually ships 16-41 days
7 240-6449 GASKET BAFFLE $7.18 1 usually ships 16-41 days
8 240-6514 RING $5.26 1 usually ships 16-41 days
9 240-2059 Washer $9.71 32 usually ships 1-5 days
10 999-0876 Washer M6 split lock plain finish $0.99 28 ships same day
11 240-0861 Screw M5 x 8mm $9.71 12 usually ships 16-41 days
12 240-0941 Hood latch $14.51 1 ships same day
13 240-6601 Screw M4 x 6mm (OBSOLETE) Call for price 2 usually ships 16-41 days
14 240-0942 Washer M4 lock $9.71 2 usually ships 16-41 days
15 240-6436 BAFFLE REAR PANEL $22.55 1 usually ships 16-41 days
16 999-1986 Screw M5-.8 x 14mm pan head phillips $0.99 8 ships same day
17 240-1024 Hose barb $11.26 2 usually ships 16-41 days
18 240-5141 DIODE ASSEMBLY $8.53 1 usually ships 16-41 days
19 240-6602 Pump $302.14 1 usually ships 16-41 days
20 240-2057 Nut M5 $9.71 8 usually ships 16-41 days
21 240-6451 BRACKET PUMP MOUNTING $7.18 2 usually ships 16-41 days
22 240-6438 CONNECTOR $5.26 2 usually ships 16-41 days
23 240-6437 BOTTOM MOUNT PLATE $39.03 1 usually ships 16-41 days
24 240-6435 MOUNTING PLATE SWITCH $22.55 1 usually ships 16-41 days
25 240-0297 Switch $14.51 1 ships same day
26 240-0673 Power cable $33.24 1 usually ships 16-41 days
27 240-6248 CORD STRAIN RELIEF $11.26 1 usually ships 16-41 days
28 240-0050 Screw M5 x 10 $9.71 8 usually ships 16-41 days
29 240-6450 CASTER $7.18 1 usually ships 16-41 days
30 240-6468 SPONGE $9.71 1 usually ships 16-41 days
