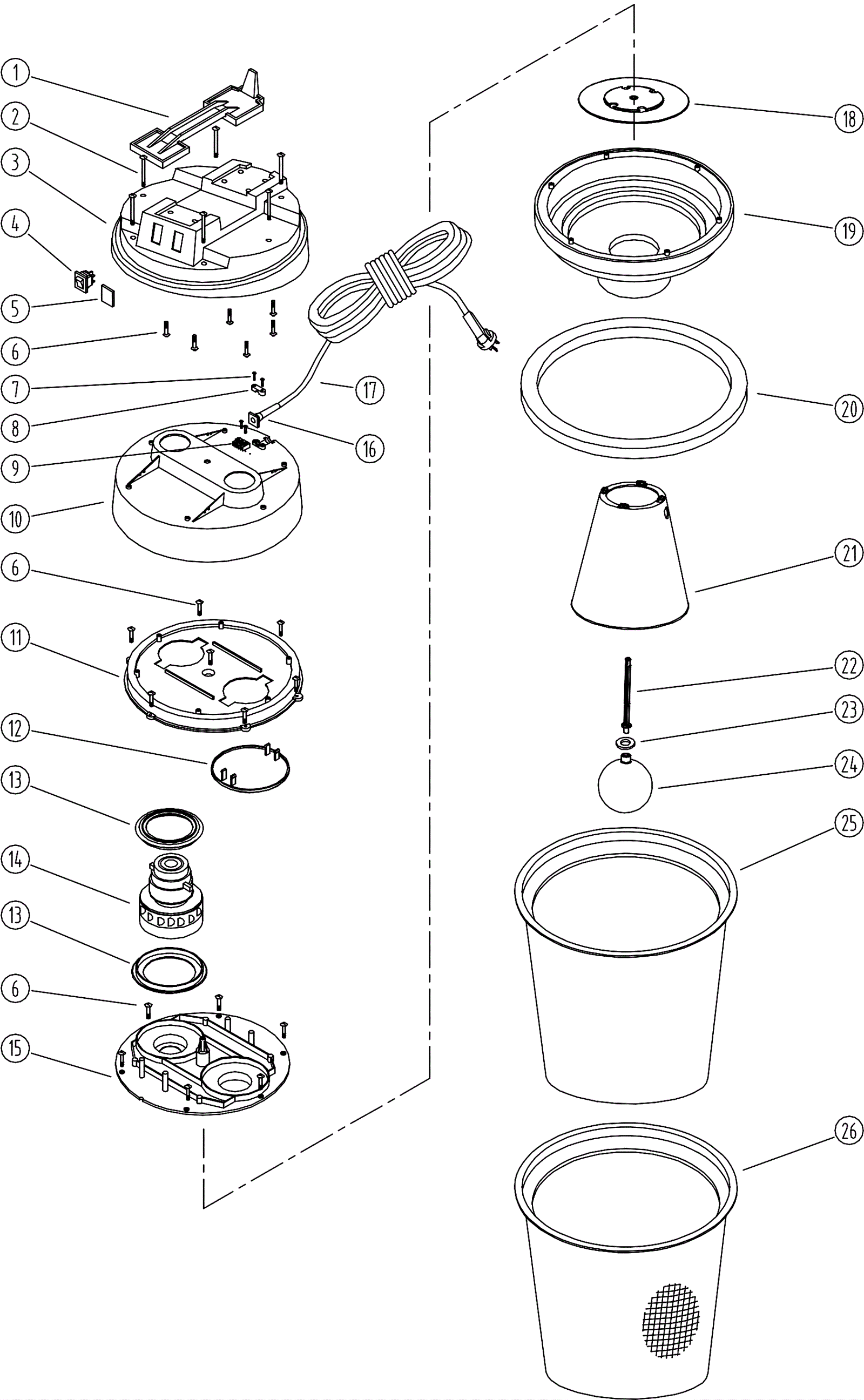

TP20WD Vacuum Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (handle) usually ships 3-26 days
2 240-5065 SCREW PH ST 5 X 74 $7.75 6 usually ships 16-41 days
3 240-5119 COVER VAC HEAD $15.20 1 usually ships 16-41 days
4 240-0297 Switch $13.19 1 ships same day
5 240-5129 COVER SWITCH $7.38 1 usually ships 16-41 days
6 240-0057 Screw M5 x 12mm self-tapping $8.83 19 usually ships 16-41 days
7 999-1180 Screw M3-.5 x 16mm pan head stainless steel $0.99 4 ships same day
8 240-0052 Block $8.83 1 usually ships 1-5 days
9 240-6409 CONNECTOR $6.57 3 usually ships 16-41 days
10 240-5117 MOTOR COVER $27.08 1 usually ships 16-41 days
11 240-5115 MOUNTING COVER MOTOR $24.71 1 usually ships 16-41 days
12 240-5130 PLATE SEAL $10.23 1 usually ships 16-41 days
13 240-0582 Motor gasket $10.24 2 usually ships 16-41 days
14 240-0298 120V vacuum motor $298.03 1 ships same day
15 240-5114 BOTTOM PLATE FOR MOTOR $13.30 1 usually ships 16-41 days
16 240-0578 Grommet $8.83 1 ships same day
17a 240-0296 14/3 power cord 50 foot $90.55 1 (OEM) ships same day
17b 991-5005 14/3 replacement power cord 50 foot (yellow) $86.81 1 (NON-OEM) (does not include strain relief) ships same day
18 240-5132 PLATE SEAL $16.01 1 usually ships 16-41 days
19 240-5131 MOTOR MOUNTING BASE $26.13 1 usually ships 16-41 days
20 240-1025 Mounting base gasket (OBSOLETE) $9.10 1 usually ships 16-41 days
21 240-5133 TRUMPET $12.01 1 ships same day
22 240-0590 Ball pole $10.24 1 ships same day
23 240-5093 O RING $8.83 1 usually ships 16-41 days
24 240-5092 BALL $8.83 1 usually ships 16-41 days
25 240-1044 Vacuum filter assembly $20.37 1 usually ships 16-41 days
26 240-6509 BUBBLE BUSTER -AMSAN VAC (OBSOLETE) $20.34 1 usually ships 16-41 days
