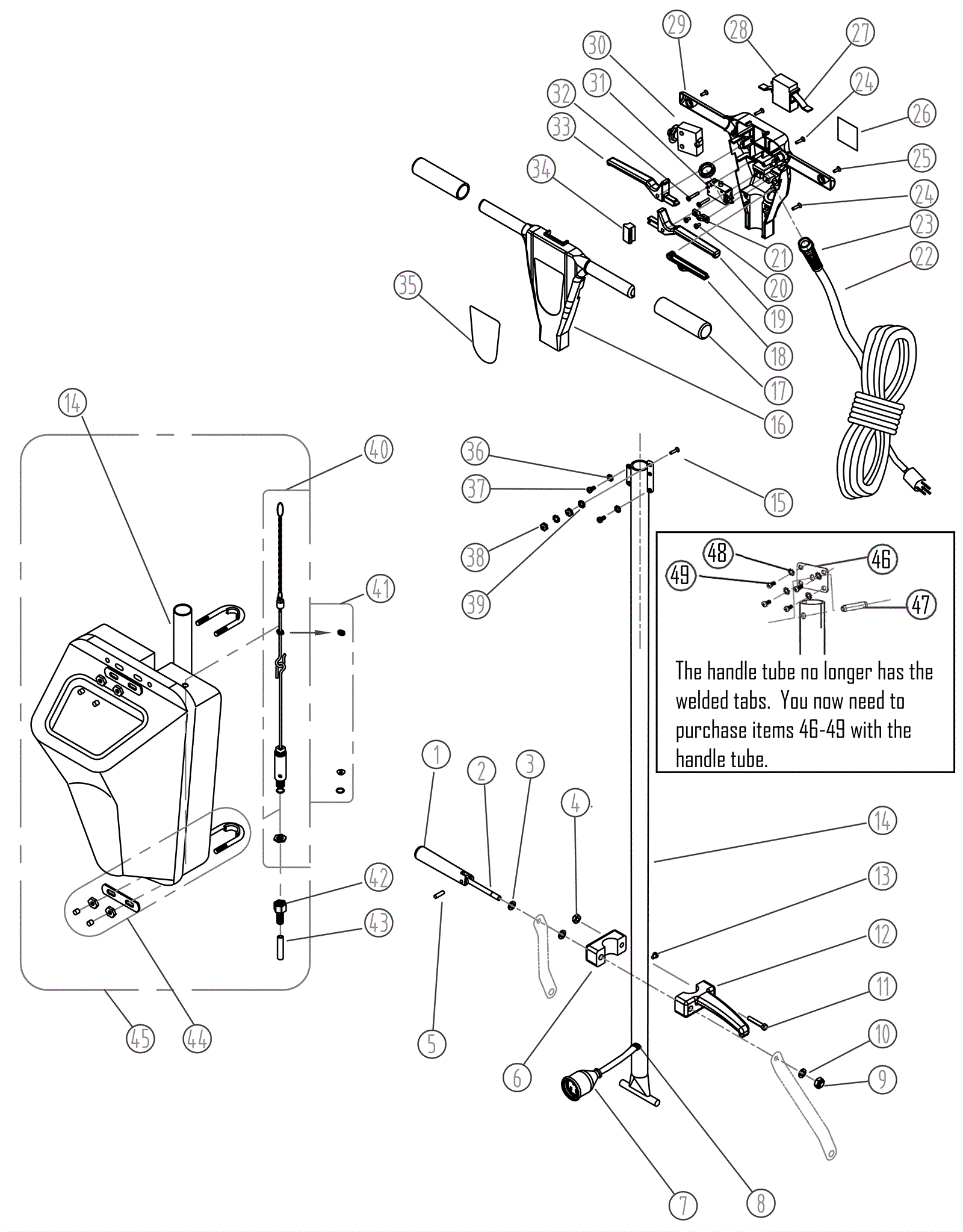

Handle Assembly

#PartDescription ReqNotesAvailability
1 240-0267 Handle release 1
2 240-0264 Handle release bolt (short) 1
3 240-0265 Handle release plain washer 2
4 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
5 240-0266 Handle release screw pin 1
6 240-0259 2 piece cord hook kit 1
7a 240-1110 47 inch handle cord 1
7b 240-0232 Small male plug protector 1
8 240-0019 Grommet 1
9 999-1120 Nut M10-1.5 nylon insert lock stainless steel 1
10 240-0205 Washer M10 plain 1
11 999-1944 Screw M8-1.25 x 55mm hex head plain finish 1
12a 240-0259 2 piece cord hook kit 1 (old style)
12b 240-2129 Hook (low speed) 1 (new style)
13 240-0237 Screw M6 x 10 hex socket 1
14 240-1032 Handle tube (2 piece release) 1 The handle tube no longer has the welded tabs. You now need to purchase items 46-49 with the handle tube.
15 240-1127 Screw M5 x 16mm 1
16 240-1108 Front handle cover 1
17 240-0269 Handle grip 2
18 240-1129 Solution lever 1
19 240-1130 Left hand switch lever 1
21 240-0103 Handle cable block 1
22 240-0105 14/3 power cord 1 (OEM)
22b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
23 240-0106 Strain relief 1
24 240-1131 Screw M5 x 30mm 5
25 240-0139 Screw M5 x 20mm 2
26a 240-1132 Serial number tag 1 (20 inch)
26b 240-5480 SERIAL TAG TP1715HD 1 (17 inch)
27 240-0183 Safety block spring 1
28 240-1133 Safety block 1
29 240-1128 Handle cover 1
30 240-0115 Circuit breaker 1
31 240-0008 On/Off switch 1
33 240-1134 Right hand switch lever 1
34 240-1135 Cover 1
35 240-1136 Front cover decal 1
36 240-0186 Washer M5 star lock 4
37 999-1986 Screw M5-.8 x 14mm pan head phillips 4
38 240-2057 Nut M5 2
39 240-1137 Washer M5 lock 2
40 240-0127 Valve assembly, solution tank 1
41 240-0126 Gasket/seal kit, solution tank 1
42 240-0159 Tank end barb hose 1
43 240-0075 Hose solution 1
44 240-1138 Solution tank mounting kit 1
45 240-1139 Solution tank 1
46 240-1149 Connection plate 1
47 240-1150 Pin 1
48 240-0186 Washer M5 star lock 4
49 999-1986 Screw M5-.8 x 14mm pan head phillips 4
