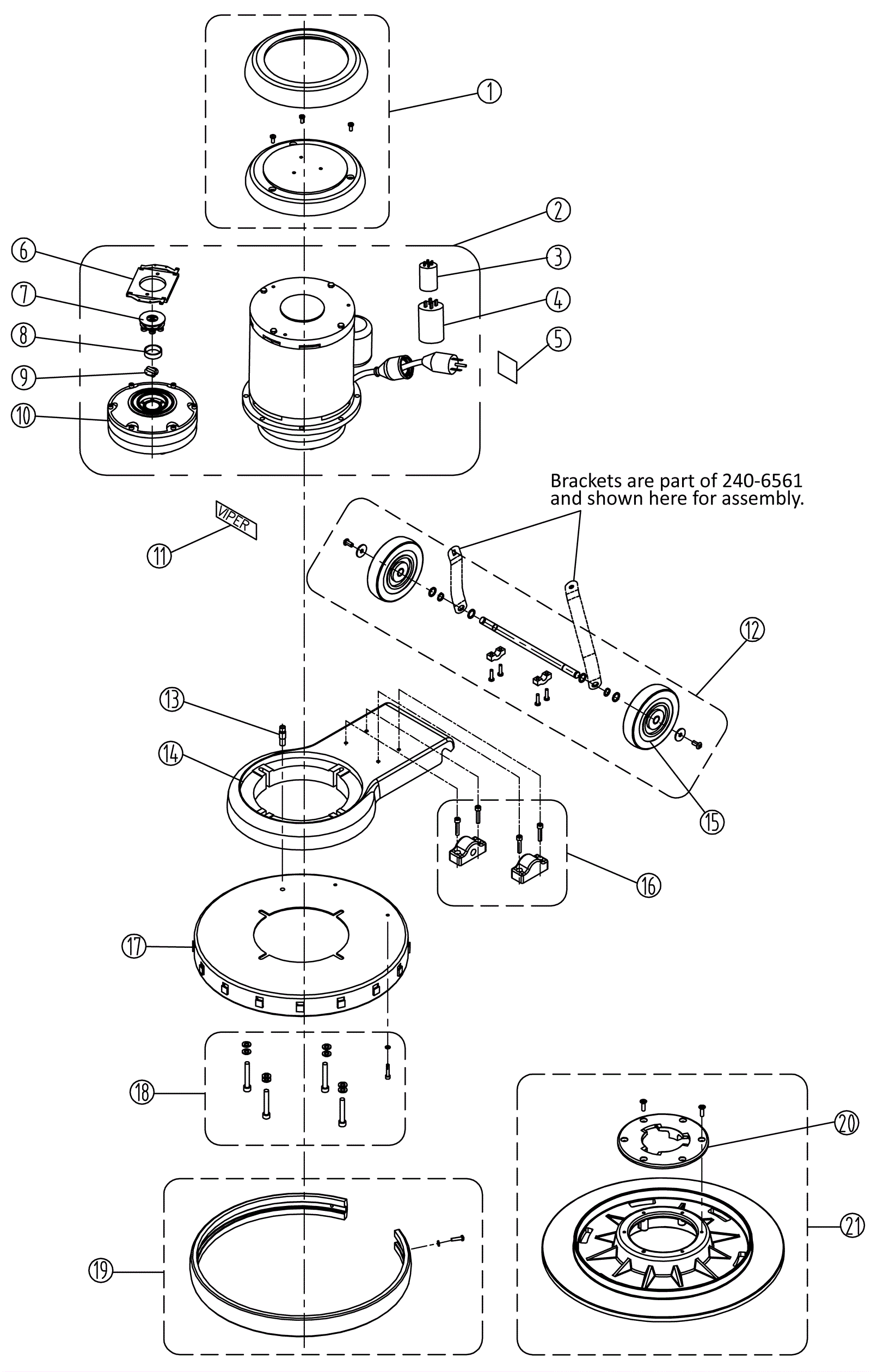

Hydra-Buffer 2015HD Base Assembly - After SN US24624JUNF

#PartDescriptionPriceReqNotesAvailability
1 240-6562 Motor cover kit $17.61 1 usually ships 16-41 days
2 240-0866 110V 1.5HP motor $691.23 1 (includes 3-4, 6-10) usually ships 16-41 days
3 240-6577 Running capacitor $27.18 1 usually ships 16-41 days
4 240-6564 Starting capacitor $27.18 1 usually ships 16-41 days
5 240-0234 Viper logo $23.95 1 usually ships 16-41 days
6 240-6565 Switch $36.78 1 usually ships 16-41 days
7 240-6566 Switch $33.96 1 usually ships 16-41 days
8 240-6567 Sleeve $5.50 1 usually ships 16-41 days
9 240-6568 Coupler $16.07 1 usually ships 16-41 days
10 240-6569 Gear box $335.71 1 usually ships 16-41 days
11 240-0110 Read manual decal $12.83 1 usually ships 16-41 days
12 240-6570 Wheel kit $32.55 1 (includes 15) ships same day
13 240-0074 Hose barb $9.71 1 usually ships 16-41 days
14 240-6571 Motor base $99.61 1 usually ships 16-41 days
15 240-6572 5 inch wheel $8.04 2 ships same day
16 240-6573 Handle clamp block kit $21.15 1 usually ships 16-41 days
17 240-6574 20 inch frame $72.26 1 usually ships 16-41 days
18 240-6575 Screw kit $5.50 1 usually ships 16-41 days
19 240-6576 20 inch bumper $16.07 1 usually ships 16-41 days
20 991-2208 3 hole clutch plate (formerly 6 hole) $9.40 1 usually ships 6-18 days
21 240-0071 19 inch pad holder $148.78 1 (includes 20) ships same day
