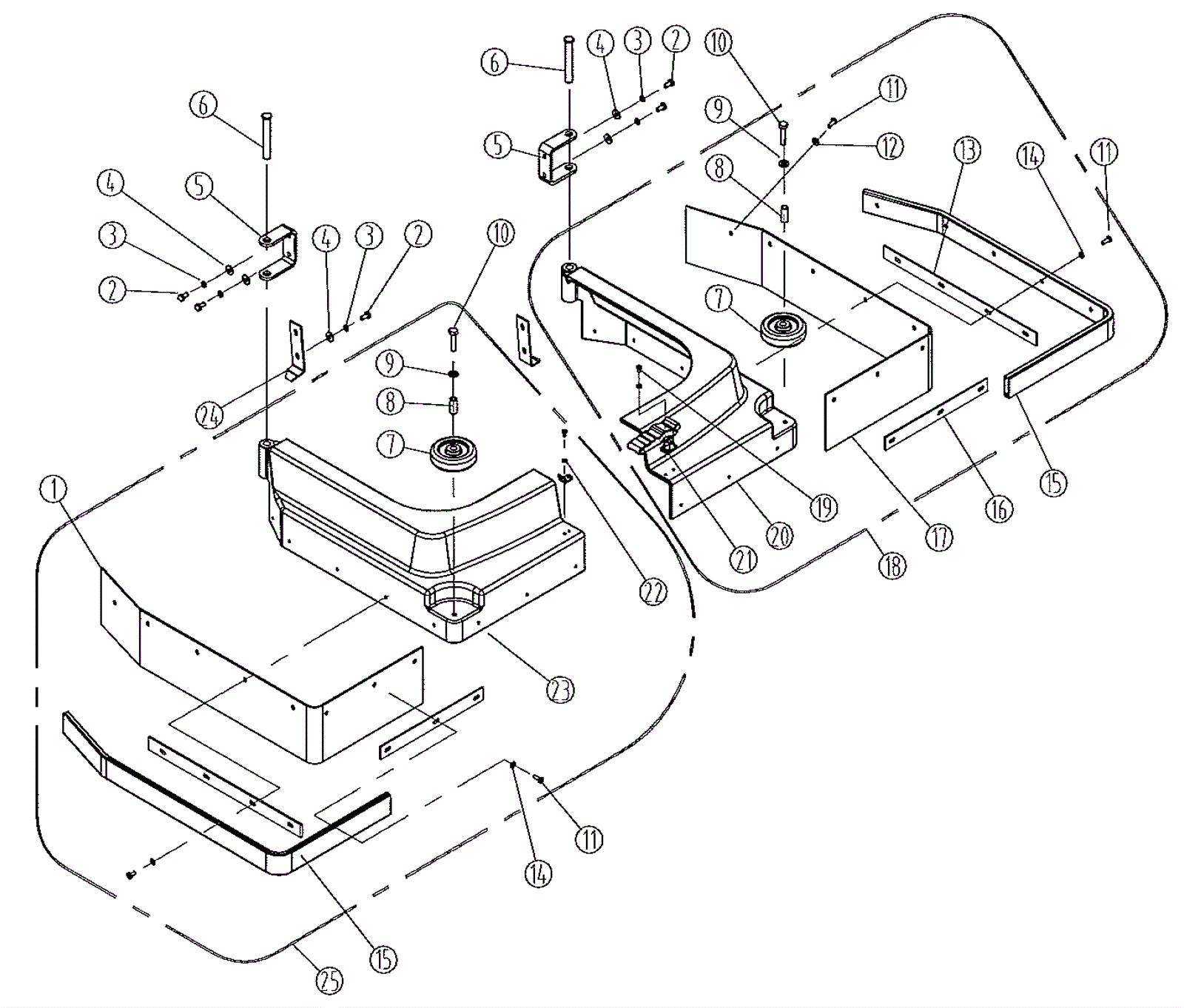

Brush Skirt Assembly

#PartDescription ReqNotesAvailability
1a 240-0920 24 inch right side bumper 1 (24T)
1b 240-0921 26 inch right side bumper 1 (26T)
1c 240-0922 28 inch right side bumper 1 (28T)
2 999-1383 Screw M6-1 x 16mm hex head stainless steel 8
3 240-0411 Washer M6 locking 8
4 999-1261 Washer M6 flat stainless steel 8
5 240-0923 Skirt mount bracket 2
6 240-0924 Skirt pin 2
7 240-0468 Wheel 2
8 240-0469 Bushing 2
9 999-9097 Washer M8 flat stainless steel 2
10 240-0361 Bolt M8 x 40mm 2
11 240-0067 Screw M5 x 16mm 18
12 240-0925 Washer M5 plain finish 4
13a 240-0926 24 inch bumper clamp 2 (24T)
13b 240-0927 26 inch bumper clamp 2 (26T)
13c 240-0928 28 inch bumper clamp 2 (28T)
14 240-0472 Washer M5 x M11 plain finish 14
15a 240-0929 24 inch bumper grip (OBSOLETE) 2 (24T)
15b 240-0930 26 inch bumper grip (OBSOLETE) 4 (26T)
15c 240-0931 28 inch bumper grip (OBSOLETE) 2 (28T)
16a 240-0932 24 inch bumper clamp 2 (24T)
16b 240-0933 28 inch bumper clamp 2 (28T)
17a 240-0934 24 inch left side bumper 1 (24T)
17b 240-0935 26 inch left side bumper 1 (26T)
17c 240-0936 28 inch left side bumper 1 (28T)
18a 240-0937 24 inch right side skirt assembly 1 (24T) (includes 2-17, 19-21)
18b 240-0938 26 inch right side skirt assembly 1 (26T) (includes 2-17, 19-21)
18c 240-0939 28 inch right side skirt assembly 1 (28T) (includes 2-17, 19-21)
19 240-0940 Screw M4 x 8mm 4
20a N/A Not available 1 (right skirt) (24T)
20b 240-0938 26 inch right side skirt assembly 1 (26T)
20c N/A Not available 1 (right skirt) (28T)
21 240-0941 Hood latch 1
22 240-0942 Washer M4 lock 4
23a N/A Not available 1 (left skirt) (24T)
23b N/A Not available 1 (left skirt) (26T)
23c N/A Not available 1 (left skirt) (28T)
24 240-0943 Skirt block 2
25a 240-0944 24 inch left side skirt assembly 1 (24T) (includes 1-11, 14-15, 22-24)
25b 240-0945 26 inch left side skirt assembly 1 (26T) (includes 1-11, 14-15, 22-24)
25c 240-0946 28 inch left side skirt assembly 1 (28T) (includes 1-11, 14-15, 22-24)
