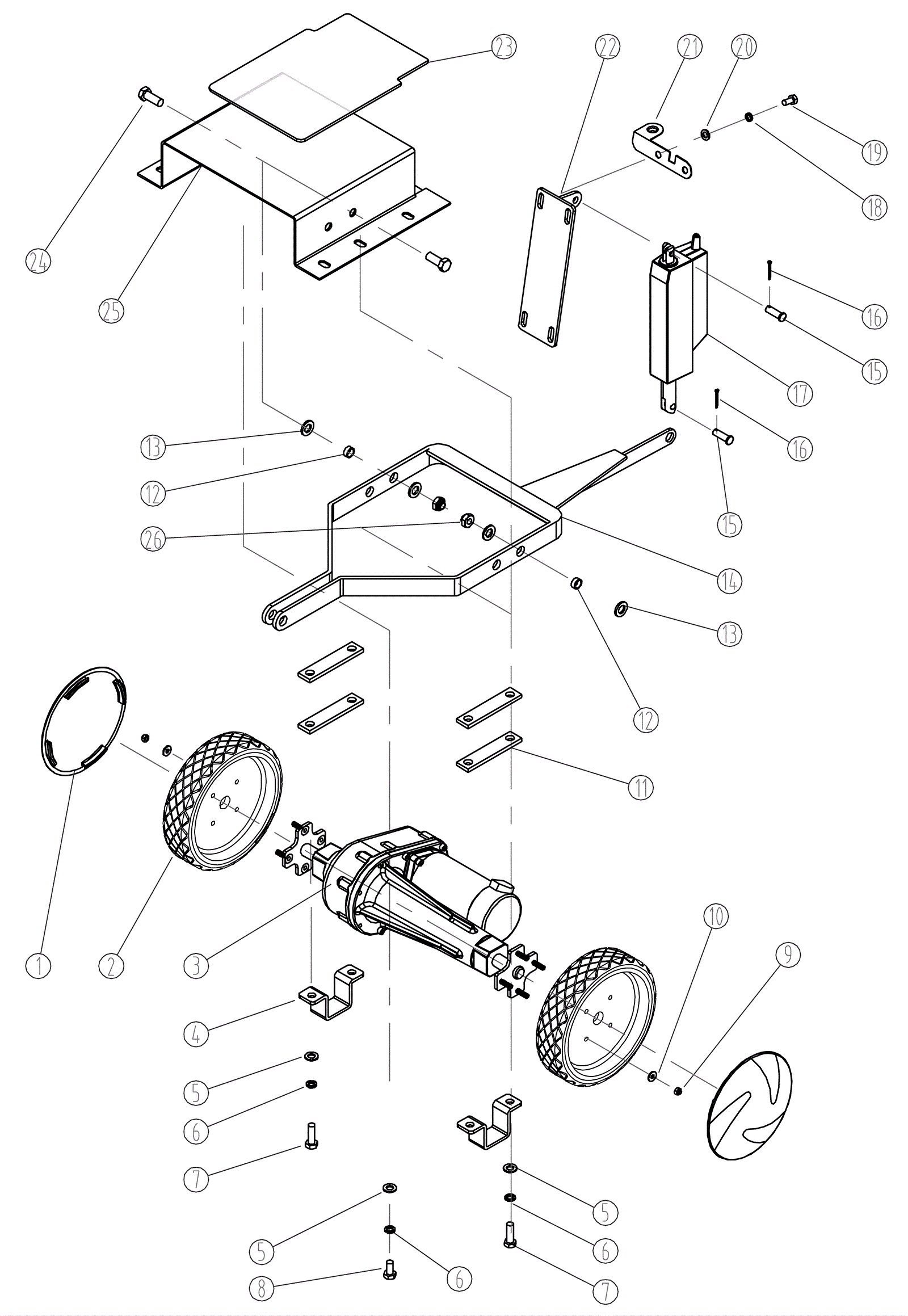

FANG 26T Brush Lift and Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-0332 Hub cap $19.15 2 ships same day
2 240-0905 8 inch wheel $111.86 2 ships same day
3a 240-0906 Transaxle $1,085.18 1 usually ships 16-41 days
3b 240-0284 Drive motor (OBSOLETE) $446.86 1 usually ships 16-41 days
3c 240-0907 ASI transaxle $722.87 1 Obsolete; use 240-0906 usually ships 1-5 days
3d 240-0908 Hub assembly $63.69 2 usually ships 1-5 days
4 240-0909 Transaxle mount bracket $12.83 2 usually ships 1-5 days
5 999-1262 Washer M10 flat $1.47 6 ships same day
6 240-0414 Washer M10 split lock stainless steel $9.47 6 usually ships 1-5 days
7 240-0910 Screw M10 x 45mm $9.71 4 usually ships 1-5 days
8 240-0739 Screw M10 x 30mm $9.71 2 usually ships 16-41 days
9 240-0038 Nut M6 $9.71 8 usually ships 16-41 days
10 999-1261 Washer M6 flat stainless steel $0.99 8 ships same day
11 240-0911 Spacer $9.71 4 usually ships 1-5 days
12 240-0340 Bushing $9.71 2 usually ships 16-41 days
13 240-0345 Washer M12 plain finish $9.71 4 usually ships 16-41 days
14 240-0912 Dual motor lift bracket $99.61 1 usually ships 1-5 days
15 240-0913 Clevis pin $9.71 2 usually ships 16-41 days
16 240-0763 Cotter pin $9.71 2 usually ships 16-41 days
17 240-5791 ACTUATOR $454.91 1 usually ships 16-41 days
19 240-0349 Screw M8 x 20mm $9.71 4 usually ships 16-41 days
20 240-0329 Washer M8 plain finish $9.71 4 usually ships 16-41 days
21 240-0915 Cable guide bracket $18.76 1 usually ships 1-5 days
22 240-0916 Actuator bracket $33.96 1 usually ships 1-5 days
23a 240-0917 Battery tray $23.95 1 ships same day
23b N/A Not available Call for price 1 (plate) usually ships 3-26 days
24 240-0918 Screw M12 x 25mm $9.71 2 usually ships 1-5 days
25a 240-1115 Base plate $121.31 1 (models before 01.30.13) usually ships 16-41 days
25b 240-1115 Base plate $121.31 1 (models after 01.30.13) usually ships 16-41 days
26 240-0344 Nut M12 locking $9.71 2 usually ships 16-41 days
