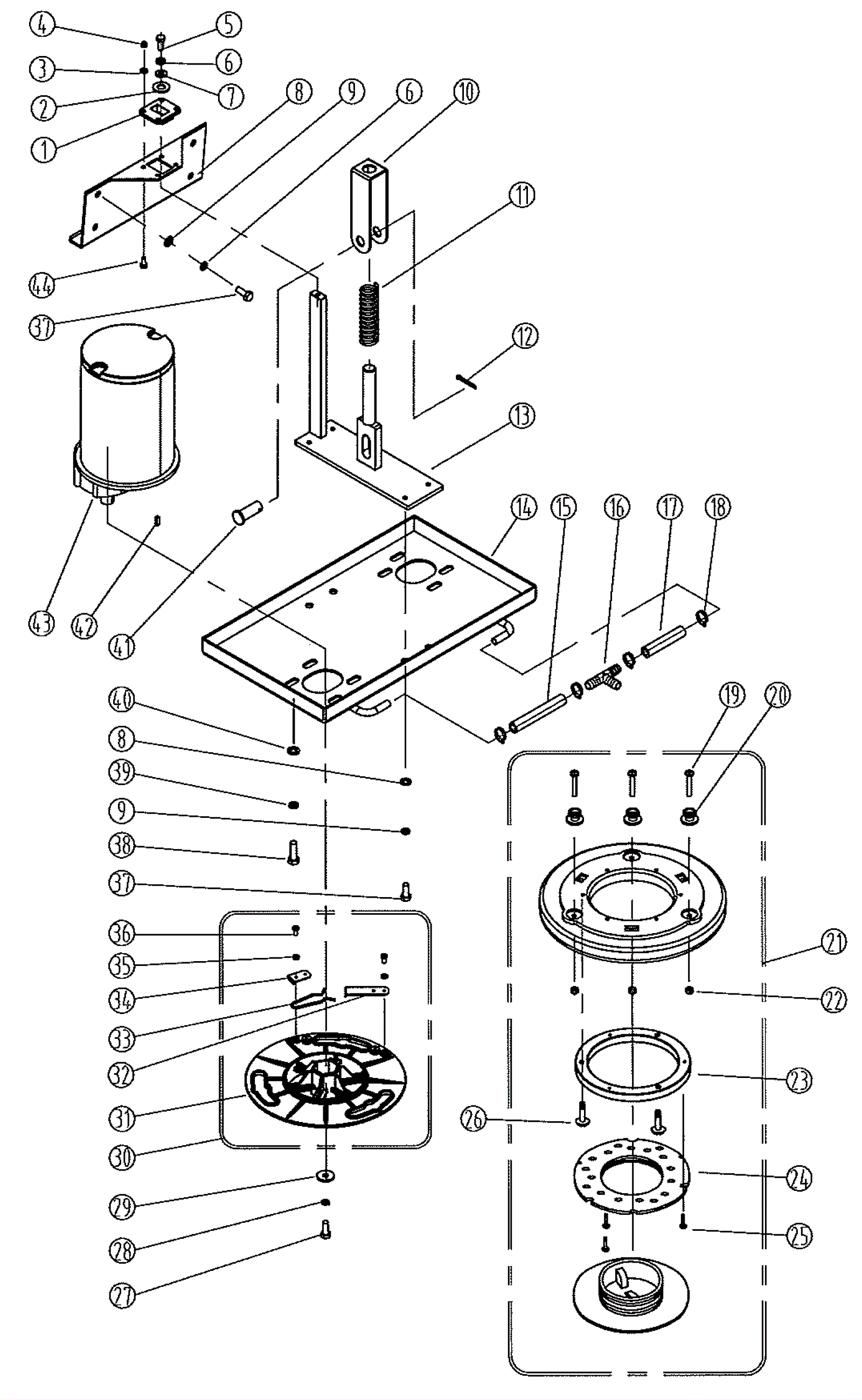

FANG 26T Pad Driver Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-0894 Guide block (OBSOLETE) $12.83 1 usually ships 16-41 days
2 240-0895 Washer M13 plain finish (OBSOLETE) $4.30 1 usually ships 16-41 days
3 240-0472 Washer M5 x M11 plain finish $9.71 4 usually ships 16-41 days
4 240-0522 Nut M5 lock $8.53 4 usually ships 18-27 days
5 240-0821 Screw M8 x 16mm $9.71 1 usually ships 16-41 days
7 240-0334 Washer M8 plain finish $9.71 1 usually ships 16-41 days
8 240-0896 Skirt support plate $39.03 1 usually ships 16-41 days
9 240-0329 Washer M8 plain finish $9.71 8 usually ships 16-41 days
10 240-0897 Spring bracket $25.51 1 usually ships 1-5 days
11 240-0898 Spring $14.51 1 usually ships 1-5 days
12 240-0363 Pin M4 x 40mm $9.71 1 usually ships 1-5 days
13 240-0899 Spring mount bracket $91.00 1 usually ships 16-41 days
14a 240-0900 Motor mount bracket $150.16 1 (24T and 26T) usually ships 1-5 days
14b 240-0901 Motor mount bracket $150.16 1 (26T and 28T) usually ships 1-5 days
15 240-0902 150mm tubing $9.71 1 usually ships 16-41 days
16 240-0484 Tee hose barb $9.71 1 usually ships 16-41 days
17 240-0903 120mm tubing $9.71 1 usually ships 16-41 days
18 240-0485 16mm clamp $9.71 2 usually ships 16-41 days
19 240-0436 Screw M6 x 40mm $9.71 6 usually ships 16-41 days
20 240-0693 Lug (sold individually) $9.71 6 ships same day
21a 240-5777 PAD DRIVER 11-INCH FANG24T $150.16 2 (includes 19-20, 22-26) ships same day
21b 240-5888 12 inch pad driver assembly $207.94 2 (includes 19-20, 22-26) usually ships 16-41 days
21c 240-1122 13 inch pad driver $159.61 2 (includes 19-20, 22-26) ships same day
22 240-0038 Nut M6 $9.71 6 usually ships 16-41 days
23 240-0438 Spacer $14.51 2 usually ships 16-41 days
24 991-2202 Big mouth pad holder set (blue) $17.75 2 ships same day
25 240-0150 Screw M4 x 12 $9.47 6 usually ships 1-5 days
26 240-0439 Screw 1/4 x 1 self-tapping $9.71 6 ships same day
27 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
28 240-0433 Washer 5/16 locking $9.71 2 usually ships 16-41 days
29 240-0432 Washer $9.71 2 usually ships 16-41 days
30 240-0440 Drive plate assembly $51.28 2 (includes 31-36) usually ships 16-41 days
31 240-0431 Drive plate $23.95 2 ships same day
32 240-0441 Drive release stop $9.71 2 usually ships 16-41 days
33 240-0430 Spring $9.71 2 usually ships 16-41 days
34 240-0429 Brush plate clamp $9.71 2 usually ships 16-41 days
35 999-0876 Washer M6 split lock plain finish $0.99 8 ships same day
36 240-0427 Screw M5 x 10mm self-tapping $9.71 8 usually ships 1-5 days
37 240-0349 Screw M8 x 20mm $9.71 8 usually ships 16-41 days
38 240-0787 Screw 3/8-1 $9.71 8 usually ships 1-5 days
39 240-0442 Washer 3/8 locking $9.71 8 usually ships 1-5 days
40 999-1262 Washer M10 flat $1.47 8 ships same day
41 240-0904 Clevis pin $12.83 1 usually ships 16-41 days
42 240-0426 Square keyway $9.71 2 usually ships 16-41 days
43 240-0425 24V brush motor $830.32 2 usually ships 16-41 days
44 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel $0.99 4 ships same day
