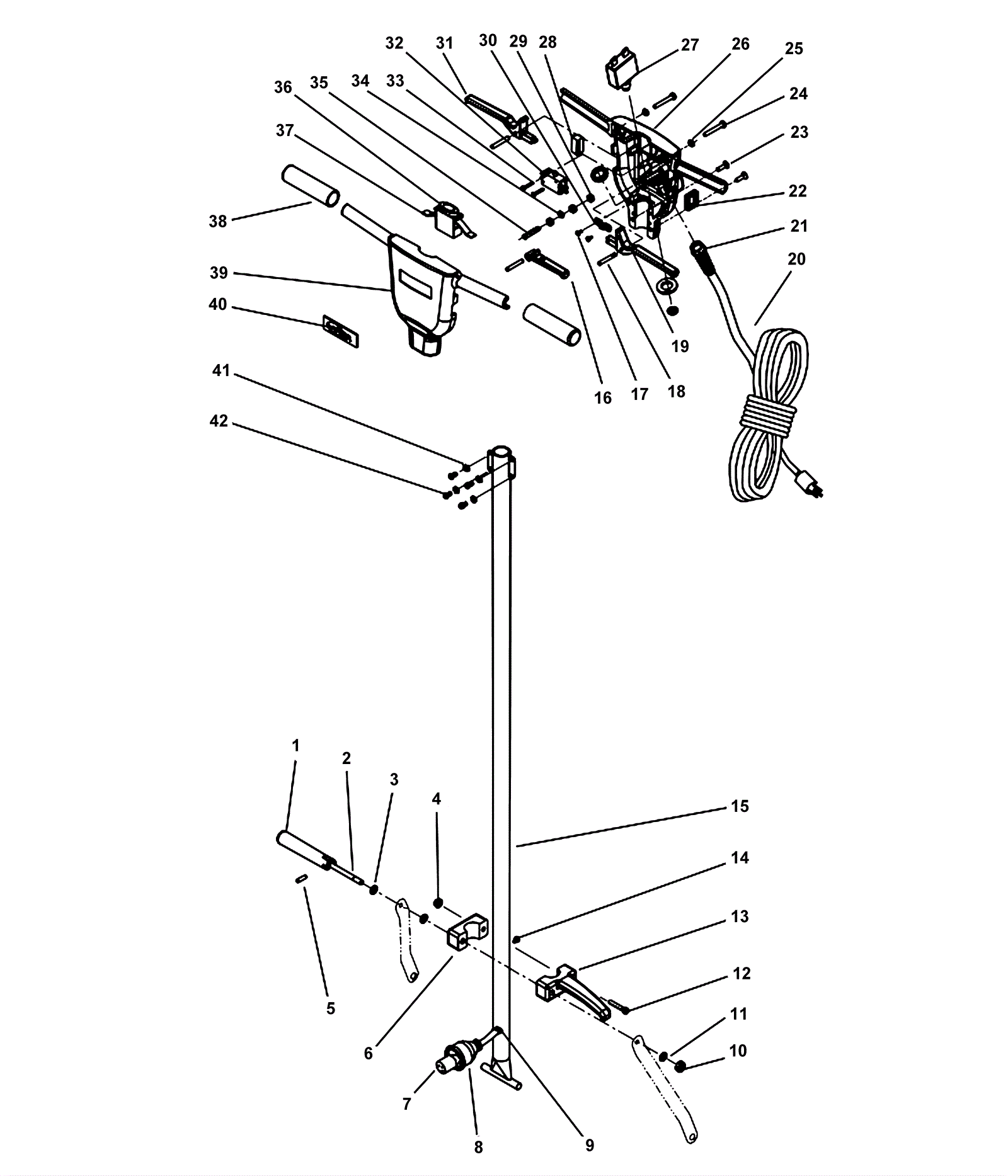

Handle Assembly

#PartDescription ReqNotesAvailability
1 240-0267 Handle release 1
2 240-0264 Handle release bolt (short) 1
3 240-0265 Handle release plain washer 2
4 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
5 240-0266 Handle release screw pin 1
6 240-0259 2 piece cord hook kit 1
7 240-0039 Handle cable 1
8 240-0232 Small male plug protector 1
9 240-0019 Grommet 1
10 999-1120 Nut M10-1.5 nylon insert lock stainless steel 1
11 240-0205 Washer M10 plain 1
12 999-1944 Screw M8-1.25 x 55mm hex head plain finish 1
13a 240-0259 2 piece cord hook kit 1 (old style)
13b 240-2129 Hook (low speed) 1 (new style)
13c 240-0259 2 piece cord hook kit 1
14 240-0237 Screw M6 x 10 hex socket 1
15 240-0870 Tube 1
16 240-0871 Solution lever 1
17 240-0871 Solution lever 2
18 240-0118 Lever pin 3
19 240-0872 Left trigger switch 1
20a 240-0105 14/3 power cord 1 (OEM)
20b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
21 240-0106 Strain relief 1
22 240-0184 Solution handle gasket 1
23 272-8065 Screw M6 x 25 phillips stainless steel 2
24 240-0111 Screw M6 x 40mm 2
25 240-0185 Washer M6 star lock 2
26 240-0271 Rear switch housing cover 1
27 240-0114 Circuit breaker 1
28 240-0182 Leveling cover 1
29 240-0028 Nut M4 3
30 240-0103 Handle cable block 1
31 240-0873 Right trigger switch 1
32 272-8640 Switch 1
34 240-0116 Washer M4 external tooth 1
35 240-0117 Screw M4 x 30mm hex socket 1
36 240-0112 Safety block 1
37 240-0183 Safety block spring 1
38 240-0269 Handle grip 2
39 240-0268 Switch housing front cover 1
40 240-0123 Viper logo decal 1
41 240-0186 Washer M5 star lock 4
42 999-1986 Screw M5-.8 x 14mm pan head phillips 4
