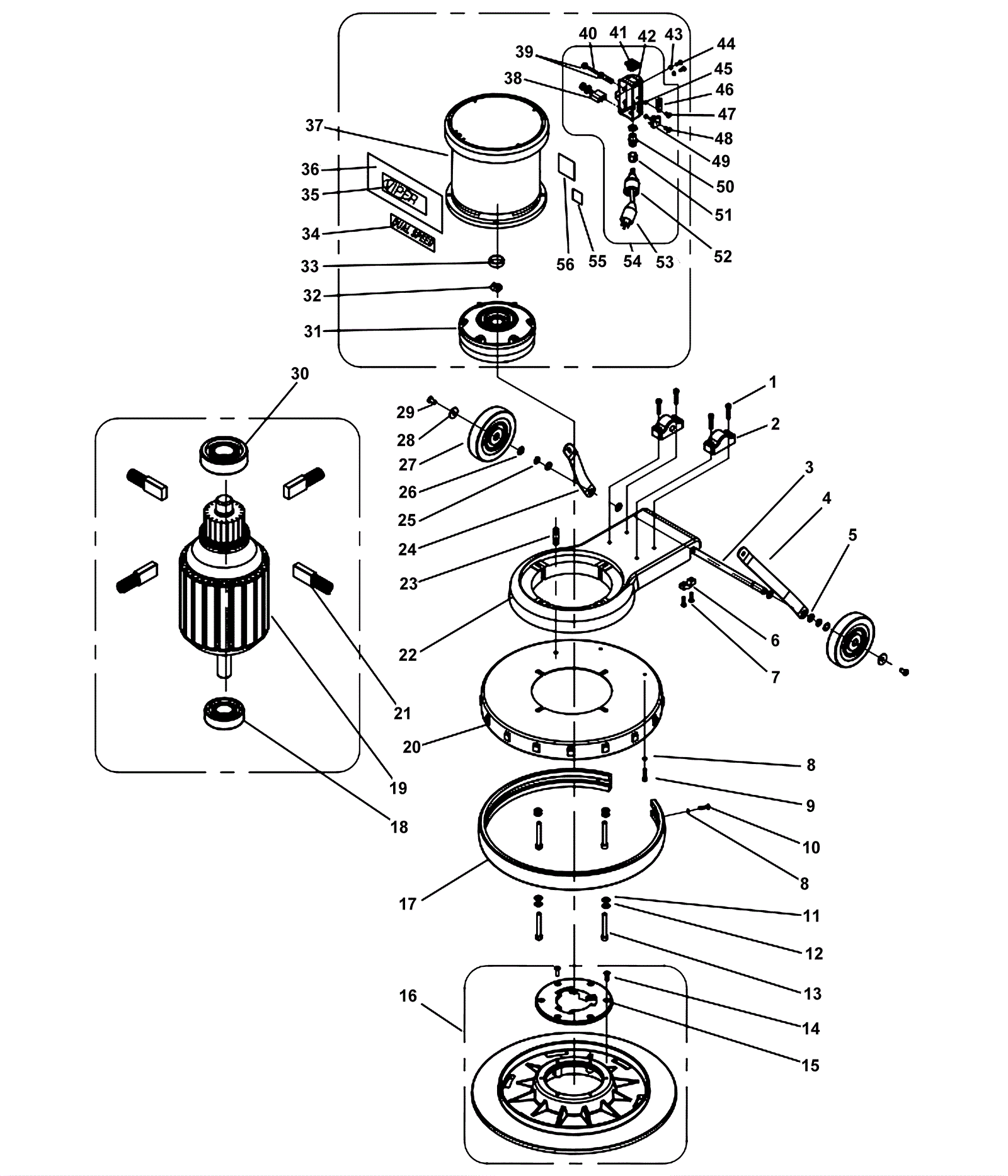

VENOM VN20DS Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-0843 Screw M6 x 30mm socket cap $9.71 4 ships same day
2 240-0261 Handle clamp block $11.26 1 usually ships 16-41 days
3 240-0844 Axle $17.61 1 ships same day
4 240-0845 Left handle bracket $33.96 1 usually ships 16-41 days
5 240-0769 Washer M13 plain finish $9.71 4 ships same day
6 240-0310 Clamp lock $9.71 2 ships same day
7 240-0066 Screw M5 x 20 self tapping $9.71 4 ships same day
8 240-0068 Plain washer $9.71 4 ships same day
9 240-0636 Screw M5 x 20 $9.71 2 usually ships 1-5 days
10 240-0067 Screw M5 x 16mm $9.71 5 usually ships 16-41 days
11 240-0043 Plain washer $9.71 4 usually ships 16-41 days
13 240-0874 Screw 5/16 x 2 1/4 $9.71 4 usually ships 1-5 days
14 240-0439 Screw 1/4 x 1 self-tapping $9.71 6 ships same day
15 991-2208 3 hole clutch plate (formerly 6 hole) $9.40 1 usually ships 6-18 days
16 240-0071 19 inch pad holder $148.78 1 ships same day
17 240-0847 20 inch bumper $16.07 1 usually ships 16-41 days
18 240-0876 Bearing $37.61 1 usually ships 1-5 days
19 240-2488 Dual speed motor $2,314.07 1 usually ships 16-41 days
20 240-0850 20 inch shroud $91.00 1 usually ships 1-5 days
21 240-0191 Carbon brush (pkg of 4) $65.65 1 usually ships 16-41 days
22 240-0001 Aluminum motor base (OBSOLETE) $110.44 1 usually ships 16-41 days
23 240-0074 Hose barb $9.71 1 usually ships 16-41 days
24 240-0860 Right handle bracket $33.96 1 ships same day
25 240-0197 External retaining ring $9.71 2 ships same day
26 999-0806 Washer M12 wave zinc plated $1.39 2 ships same day
27 240-0198 5 inch wheel $35.37 2 ships same day
28 240-0199 Washer M6 flat $9.71 2 ships same day
29 240-0200 Screw M6-1 x 12mm $9.71 2 ships same day
30 240-0878 Bearing $39.03 1 usually ships 1-5 days
31 240-0076 Gear box $672.06 1 usually ships 16-41 days
32 240-0077 Coupling $16.07 1 ships same day
33 240-0078 Sleeve $9.71 1 usually ships 16-41 days
34 170-9292 Dual speed decal $9.71 1 usually ships 16-41 days
35 240-0234 Viper logo $23.95 1 usually ships 16-41 days
36 240-0880 Motor decal $12.83 1 usually ships 1-5 days
37 240-0881 1.5HP dual speed brush motor (OBSOLETE) $2,030.01 1 usually ships 1-5 days
38 240-0882 30amp circuit breaker $20.86 1 usually ships 16-41 days
39 240-0883 Fuse cartridge (OBSOLETE) $11.25 1 usually ships 16-41 days
40 240-0884 Fuse (OBSOLETE) $8.53 1 usually ships 16-41 days
41 240-0885 Switch assembly $12.83 1 ships same day
42 240-0886 Shell (OBSOLETE) $11.41 1 usually ships 1-5 days
43 240-0186 Washer M5 star lock $9.71 2 ships same day
44 240-0861 Screw M5 x 8mm $9.71 2 usually ships 16-41 days
45 240-0119 Nut M4 Nylon insert $9.71 2 usually ships 16-41 days
46a 170-9294 Triac Assembly $28.74 1 (after SN0340) usually ships 16-41 days
46b 170-9294 Triac Assembly $28.74 1 (before SN0339) usually ships 16-41 days
46c 170-9294 Triac Assembly $28.74 1 usually ships 16-41 days
46d 170-9294 Triac Assembly $28.74 1 usually ships 16-41 days
46e 170-9294 Triac Assembly $28.74 1 usually ships 16-41 days
47 240-0888 Screw M4 x 12mm (OBSOLETE) $1.47 1 usually ships 1-5 days
48 240-0889 Screw M4 x 16mm $9.71 1 usually ships 1-5 days
49 240-0690 Rectifier $72.26 1 ships same day
50 240-0890 Cord strain relief $11.99 1 usually ships 1-5 days
51 240-0891 Nut $9.71 1 usually ships 1-5 days
52 240-0262 Large female plug protector $9.71 1 usually ships 16-41 days
53 240-0892 Motor cord $19.15 1 usually ships 1-5 days
54 240-0893 Speed adjustment kit $148.13 1 usually ships 16-41 days
55 240-0110 Read manual decal $12.83 1 usually ships 16-41 days
56 240-0875 Serial tag $5.94 1 usually ships 1-5 days
