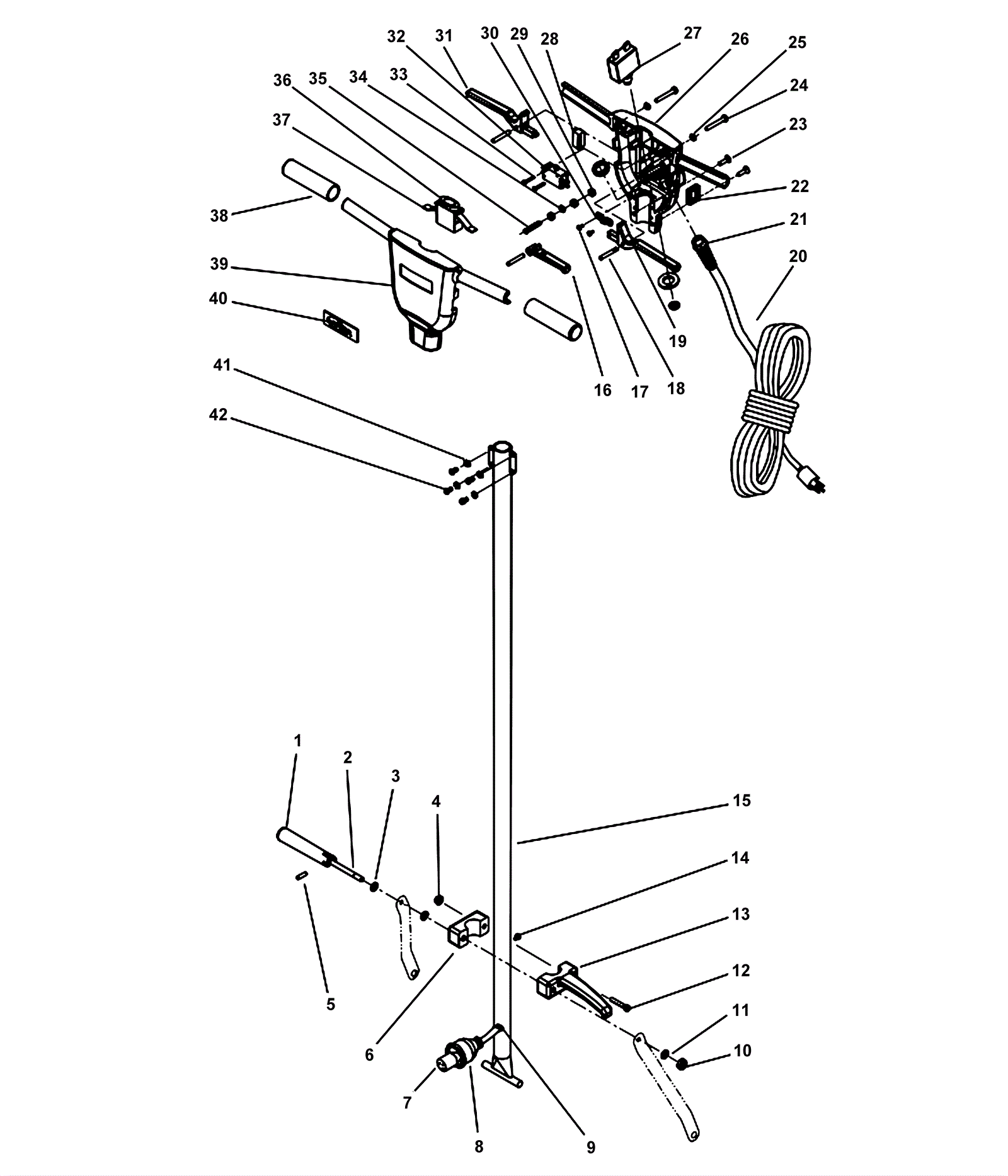

Hydra-Buffer 2015HD Handle Assembly - Before SN US24624JUNF

#PartDescriptionPriceReqNotesAvailability
1 240-0267 Handle release $43.41 1 ships same day
2a 240-0264 Handle release bolt (short) $9.72 1 ships same day
2b 240-6580 Handle release bolt (longer) $17.61 1 usually ships 16-41 days
3 240-0265 Handle release plain washer $9.71 2 ships same day
4 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 usually ships 11-24 days
5 240-0266 Handle release screw pin $9.71 1 ships same day
6 240-0259 HANDLE RELEASE HEAVY DUTY -VN $158.05 1 usually ships 16-41 days
7 240-0039 Handle cable $9.71 1 usually ships 16-41 days
8 240-0232 Small male plug protector $9.71 1 usually ships 16-41 days
9 240-0019 Grommet $9.71 1 usually ships 16-41 days
10 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
11 240-0205 Washer M10 plain $9.71 1 usually ships 16-41 days
12 999-1944 Screw M8-1.25 x 55mm hex head plain finish $1.42 1 ships same day
13a 240-0259 HANDLE RELEASE HEAVY DUTY -VN $158.05 1 (old style) usually ships 16-41 days
13b 240-2129 Hook (low speed) $27.18 1 (new style) (one piece system - Difficult to install - Must remove entire top of handle.) ships same day
13c 240-0259 HANDLE RELEASE HEAVY DUTY -VN $158.05 1 (two piece system - Much easier to install) usually ships 16-41 days
14 240-0237 Screw M6 x 10 hex socket $9.71 1 usually ships 16-41 days
15 240-0870 Tube $49.86 1 usually ships 16-41 days
16 240-0871 Solution lever $22.41 1 usually ships 16-41 days
18 240-0118 Lever pin $9.71 3 usually ships 16-41 days
19 240-0872 Left trigger switch $16.07 1 usually ships 16-41 days
20a 240-0105 14/3 power cord $94.53 1 (OEM) ships same day
20b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) (does not include strain relief) ships same day
21 240-0106 Strain relief $20.86 1 ships same day
22 240-0184 Solution handle gasket $9.71 1 usually ships 16-41 days
23 272-8065 Screw M6 x 25 phillips stainless steel $9.71 2 usually ships 16-41 days
24 240-0111 Screw M6 x 40mm $9.71 2 ships same day
25 240-0185 Washer M6 star lock $9.71 2 ships same day
26 240-0271 Rear switch housing cover $132.86 1 usually ships 16-41 days
27 240-0115 Circuit breaker $16.50 1 ships same day
28 240-0182 Leveling cover $11.26 1 usually ships 16-41 days
29 240-0028 Nut M4 $9.71 3 usually ships 1-5 days
30 240-0103 Handle cable block $9.71 1 usually ships 16-41 days
31 240-0873 Right trigger switch $16.07 1 usually ships 16-41 days
32a 272-8640 Switch $27.18 1 ships same day
32b 372-1360 Switch $9.71 1 (Starting at SN US24624JuneF) usually ships 16-41 days
34 240-0116 Washer M4 external tooth $9.71 1 usually ships 1-5 days
35 240-0117 Screw M4 x 30mm hex socket $9.71 1 usually ships 1-5 days
36 240-0112 Safety block $9.71 1 usually ships 16-41 days
37 240-0183 Safety block spring $9.71 1 usually ships 16-41 days
38 240-0269 Handle grip $16.07 2 ships same day
39 240-0268 Switch housing front cover $124.96 1 usually ships 16-41 days
40 240-0123 Viper logo decal $9.71 1 usually ships 16-41 days
41 240-0186 Washer M5 star lock $9.71 4 ships same day
42 999-1986 Screw M5-.8 x 14mm pan head phillips $0.99 4 ships same day
N/S 240-1139 Solution tank $176.24 1 usually ships 16-41 days
