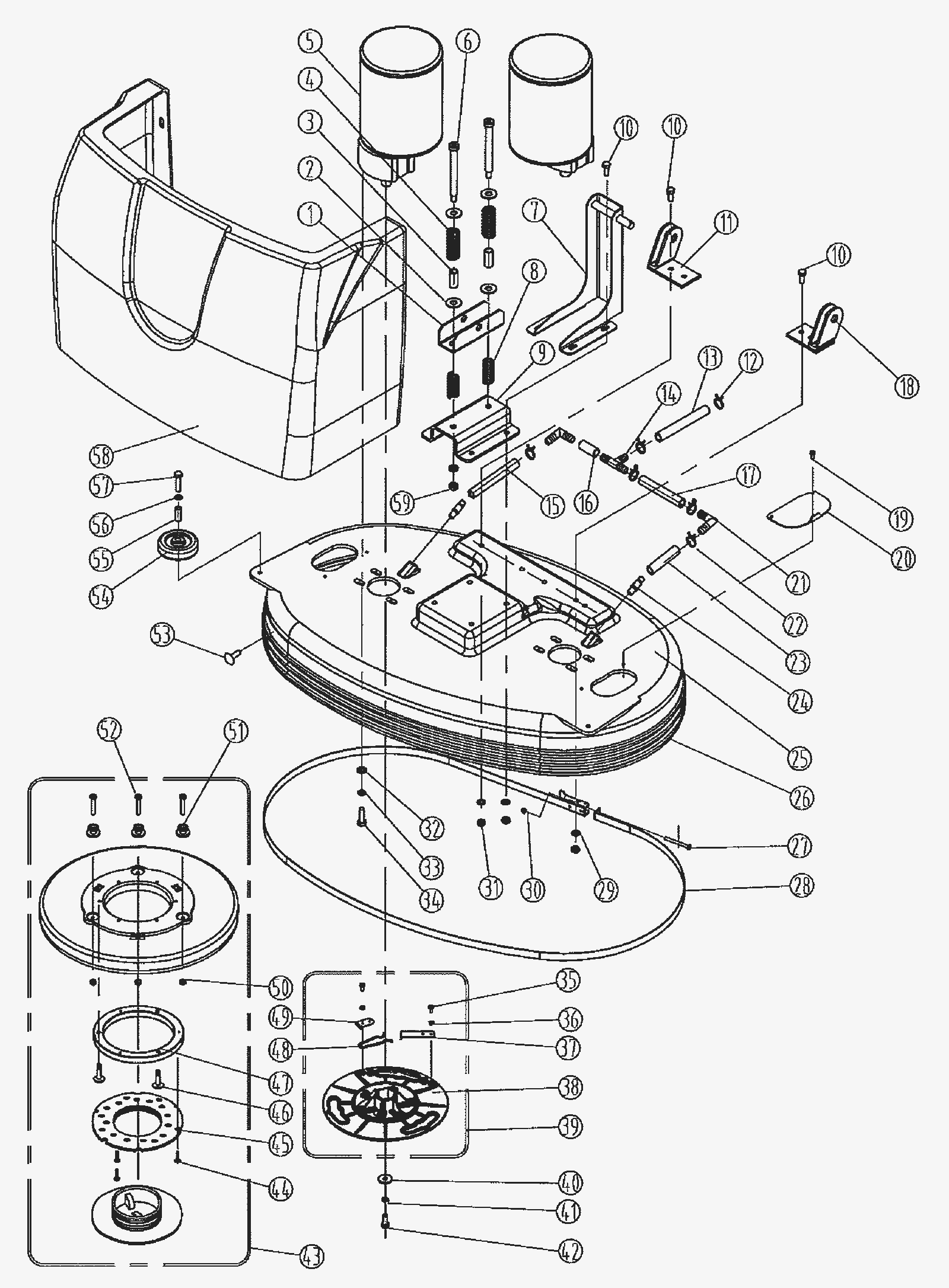

Scrub Deck Assembly

#PartDescription ReqNotesAvailability
1 240-0768 Spring bracket 1
2 240-0769 Washer M13 plain finish 4
3 240-0770 Sleeve 2
4 240-0771 Spring 2
5a 240-0772 36V brush motor 2
5b 240-0426 Square keyway 2
6 240-0773 Bolt 1/4 x 4 1/4 x 3/8 shoulder 2
7 240-0774 Brush lift bracket 1
8 240-0775 Spring 2
9 240-0776 Spring mount bracket 1
10 240-0330 Screw M8 x 25mm 9
11 240-0777 Right lift bracket 1
12 240-0778 Clamp 1
13 240-0779 145mm tubing 1
14 240-0484 Tee hose barb 1
15 240-0780 135mm tubing 1
16 240-0781 125mm tubing 1
17 240-0782 275mm tubing 1
18 240-0783 Left lift bracket 1
19 240-0050 Screw M5 x 10 4
20 240-0784 Scrub deck door 2
21 240-0785 Elbow 2
22 240-0485 16mm clamp 7
23 240-0486 75mm tubing 1
24 240-5904 HOSE BARB 2
25 240-0621 Scrub head cover 1
26 240-0622 Scrub head skirt 1
27 240-0520 Screw M5 x 70mm 1
28 240-0623 Skirt clamp 1
29 240-0334 Washer M8 plain finish 9
30 240-0522 Nut M5 lock 1
31 999-0496 Nut M8-1.25 nylon insert lock stainless steel 8
32 999-1262 Washer M10 flat 8
33 240-0442 Washer 3/8 locking 8
34 240-0787 Screw 3/8-1 10
35 240-0427 Screw M5 x 10mm self-tapping 8
36 999-0876 Washer M6 split lock plain finish 8
37 240-0441 Drive release stop 2
38 240-0431 Drive plate 2
39 240-0440 Drive plate assembly 1 (includes 35-38, 48-49)
40 240-0432 Washer 2
41 240-0433 Washer 5/16 locking 2
42 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 2
43 240-0692 15 inch pad driver 2 (includes 44-47, 50-52)
44 240-0150 Screw M4 x 12 6
45 991-2202 Big mouth pad holder set (blue) 2
46 240-0439 Screw 1/4 x 1 self-tapping 6
47 240-0438 Spacer 2
48 240-0430 Spring 2
49 240-0429 Brush plate clamp 2
50 240-0038 Nut M6 6
51 240-0693 Lug (sold individually) 6
52 240-0436 Screw M6 x 40mm 6
53 240-0789 Push screw 4
54 240-0468 Wheel 2
55 240-0469 Bushing 2
56 999-9097 Washer M8 flat stainless steel 2
57 240-0361 Bolt M8 x 40mm 4
58 240-0790 Front cover 1
59 240-0791 Nut 3/8 lock 2
