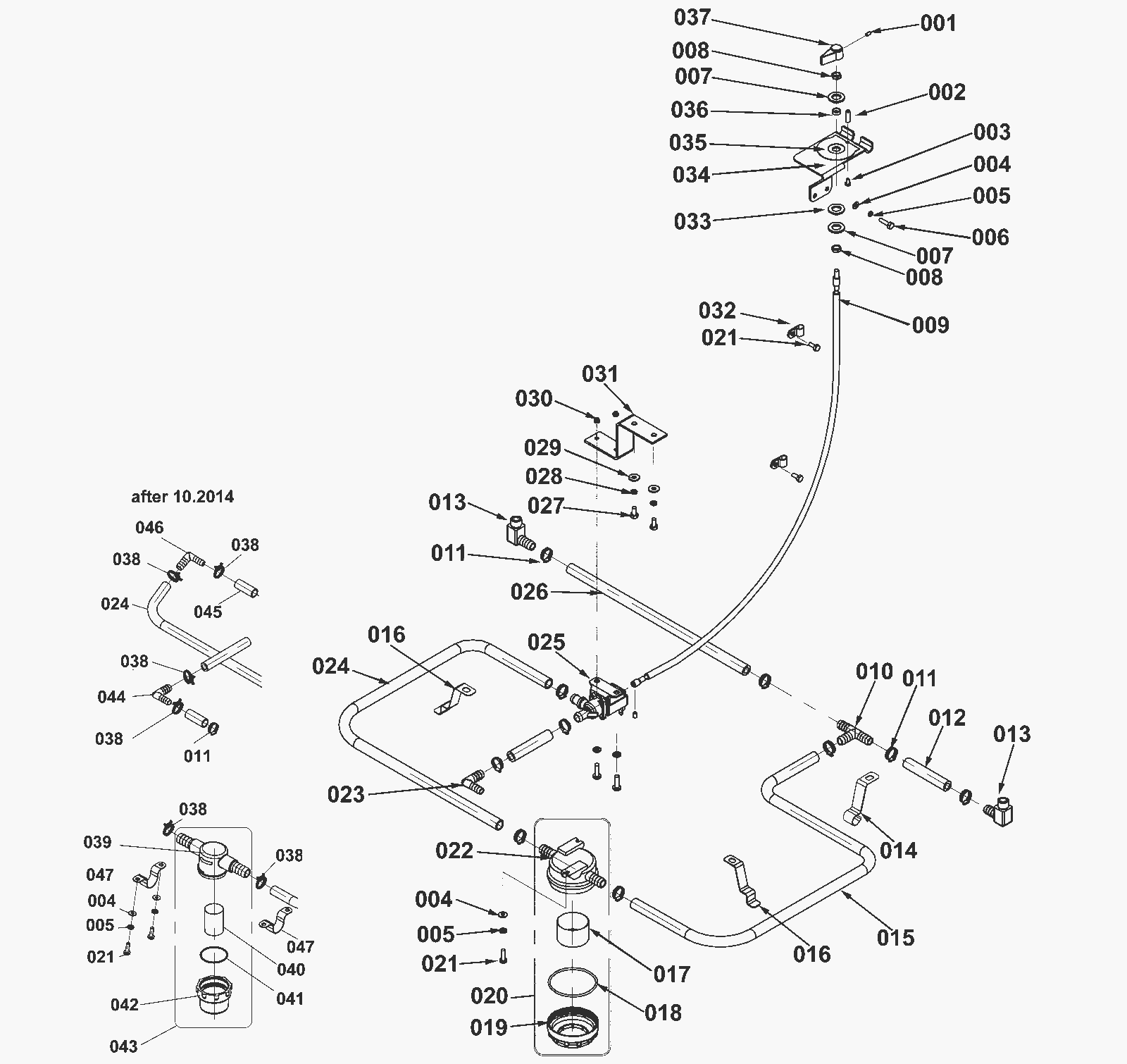

Solution Control Assembly

#PartDescription ReqNotesAvailability
001 240-0478 Screw M5 x 6mm 2
002 240-0479 Shaft 1
003 240-6391 SCREW M4X10 1
004a 999-0803 Washer M5 flat plain finish 4 (before 10.2014)
004b 999-0803 Washer M5 flat plain finish 6 (after 10.2014)
005a 999-0876 Washer M6 split lock plain finish 5 (before 10.2014)
005b 999-0876 Washer M6 split lock plain finish 7 (after 10.2014)
006 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel 2
007 240-0482 Washer M9.8 2
008 999-0959 Nut 3/8-16 hex 2
009 240-0483 Solenoid cable 1
010 240-0484 Tee hose barb 1 (before 10.2014)
011a 240-0485 16mm clamp 12 (before 10.2014)
011b 240-0485 16mm clamp 5 (after 10.2014)
012 240-0486 75mm tubing 1
013 240-0487 Solution tank elbow 2
014 240-0488 Tubing bracket 1
015 240-0489 690mm tubing 1
016 240-0490 Tubing clamp (OBSOLETE) 1 (before 10.2014)
017a 240-0274 Mesh filter 1
017b 240-0491 Mesh filter 1
018a 240-0492 O ring 1
018b 240-0493 O ring 1 (before 10.2014)
019a 240-0494 Filter clear cover 1 (before 10.2014)
019b 240-0495 Filter clear cover 1 (after 10.2014)
020a 240-0508 Filter assembly kit 1 (includes 017-019 and 022) (before 10.2014)
020b 240-0275 Filter assembly kit 1 (includes 017-019 and 022) (before 10.2014)
021 240-0050 Screw M5 x 10 4 (before 10.2014)
022a 240-0496 Filter mounting base 1 (black)
022b 240-0497 Filter mounting base 1 (white)
023 240-0498 Hose barb elbow 1 (before 10.2014)
024 240-0499 590mm tubing 1
025 240-0291 Solenoid valve 1
026 240-0500 205mm tubing 1
027 999-1383 Screw M6-1 x 16mm hex head stainless steel 4
028 240-0411 Washer M6 locking 2
029 999-1261 Washer M6 flat stainless steel 4
030 240-0038 Nut M6 2
031 240-0501 Solenoid bracket (OBSOLETE) 1
032 240-0502 P clamp 3
033 240-0503 Washer M12 wave 1
034 240-0504 Valve bracket 1
035 240-0505 Valve decal 1
036 240-0506 Bushing 1
037 240-0507 Valve adjust knob 1
038 240-0485 16mm clamp 9 (after 10.2014)
039 N/A Not available 1 (Filter seat) (after 10.2014)
040 240-0491 Mesh filter 1 (after 10.2014)
041 N/A Not available 1 (O-ring) (after 10.2014)
042 N/A Not available 1 (Filter cover) (after 10.2014)
043 240-0275 Filter assembly kit 1 (after 10.2014) (includes 038-042)
044 240-0498 Hose barb elbow 1 (after 10.2014)
045 N/A Not available 1 (Tubing) (after 10.2014)
046 240-0785 Elbow 1 (after 10.2014)
047 240-2126 Clamp 2 (after 10.2014)
