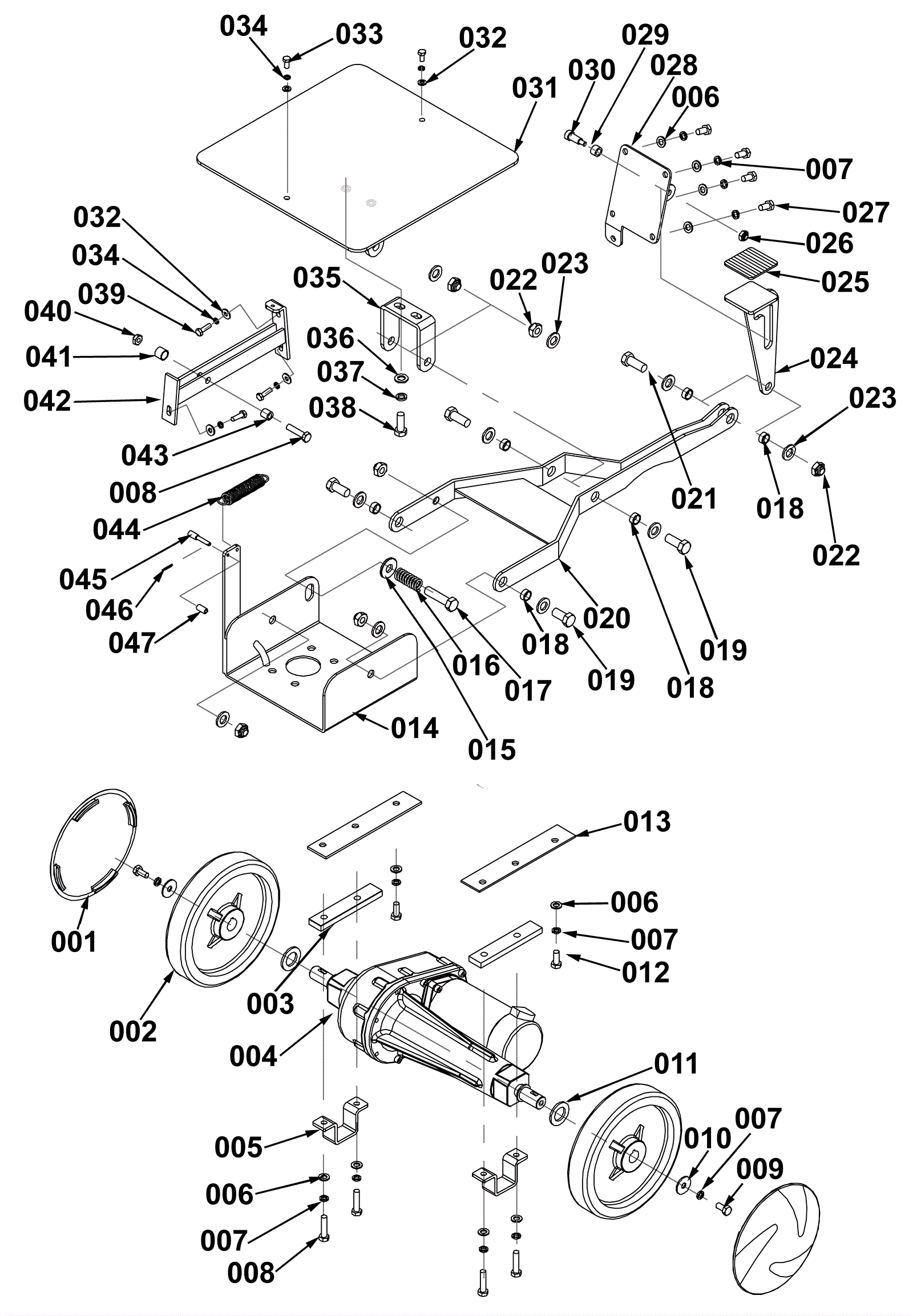

PANTHER 20TD Brush Lift Assembly

#PartDescriptionPriceReqNotesAvailability
001 240-0332 Hub cap $19.15 2 ships same day
002a 240-0400 Wheel (OBSOLETE) $62.48 2 (before SN 1500) usually ships 16-41 days
002b 240-0401 Wheel $111.86 2 (after SN 1499) ships same day
002c 240-0364 Wheel kit $121.31 2 usually ships 16-41 days
003 240-0402 Spacer $9.47 2 usually ships 1-5 days
004a 240-0403 20 inch transaxle (OBSOLETE) $887.60 1 (before SN 1500) usually ships 16-41 days
004b 240-0285 Transaxle assembly $1,149.42 1 (after SN 1499) usually ships 16-41 days
004c 240-0284 Drive motor (OBSOLETE) $446.86 1 (after SN 1499) usually ships 16-41 days
004d 240-0404 Key M5 x 25mm $9.71 1 (after SN 1499) usually ships 16-41 days
005 240-0405 Transaxle mount bracket $9.71 2 usually ships 16-41 days
006 240-0329 Washer M8 plain finish $9.71 10 usually ships 16-41 days
008 240-0361 Bolt M8 x 40mm $9.71 4 usually ships 16-41 days
009 240-0406 Screw M8 x 12mm $9.71 2 usually ships 1-5 days
010 999-1267 Washer M8 flat zinc $0.99 2 ships same day
011 240-0408 Washer M20 plain finish $9.71 2 usually ships 1-5 days
012 999-0783 Screw M8-1.25 x 16mm hex head $0.99 2 ships same day
013 240-0409 Spacer $9.71 2 usually ships 1-5 days
014 240-0336 Motor bracket $65.65 1 usually ships 1-5 days
015 240-0337 Oilite thrust washer $9.71 1 usually ships 1-5 days
016 240-0338 Spring $9.71 1 usually ships 16-41 days
017 240-0339 Screw M12 x 60mm $9.71 1 usually ships 1-5 days
018 240-0340 Bushing $9.71 6 usually ships 16-41 days
019 240-0341 Screw M12 x 30mm $9.71 4 usually ships 1-5 days
020 240-0342 Brush lift bracket $75.10 1 usually ships 1-5 days
021 240-0343 Screw M12 x 35mm $9.71 1 usually ships 1-5 days
022 240-0344 Nut M12 locking $9.71 6 usually ships 16-41 days
023 240-0345 Washer M12 plain finish $9.71 10 usually ships 16-41 days
024 240-0346 Brush lift latch $20.86 1 usually ships 1-5 days
025 240-0347 Rubber spacer $9.71 1 usually ships 16-41 days
026 240-0348 Nut 5/16 locking $9.71 1 usually ships 16-41 days
027 240-0349 Screw M8 x 20mm $9.71 4 usually ships 16-41 days
028 240-0350 Brush latch bracket $48.32 1 usually ships 1-5 days
029 240-0351 Bushing $7.59 1 usually ships 1-5 days
030 240-0352 Shoulder bolt $9.71 1 usually ships 1-5 days
031 240-0410 Brush latch mounting plate $70.61 1 usually ships 1-5 days
032 999-1261 Washer M6 flat stainless steel $0.99 5 ships same day
033 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
034 240-0411 Washer M6 locking $9.71 5 usually ships 16-41 days
035 240-0412 Adjustment bracket $16.07 1 ships same day
036 999-1262 Washer M10 flat $1.47 2 ships same day
037 240-0414 Washer M10 split lock stainless steel $9.47 1 usually ships 1-5 days
038 999-9121 Screw M10-1.5 x 25mm zinc plated $1.39 2 usually ships 11-24 days
039 240-0357 Screw M6 x 20mm $9.71 3 usually ships 16-41 days
040 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 usually ships 11-24 days
041 240-0358 Bushing $9.71 1 usually ships 1-5 days
042 240-0359 Brush lift roller bracket $20.86 1 usually ships 1-5 days
043 240-0360 Bushing $9.71 1 usually ships 1-5 days
044 240-0362 Spring $11.26 1 usually ships 1-5 days
045 240-0416 Shaft $9.71 1 usually ships 1-5 days
046 240-0417 Pin M2 x 20mm $9.71 1 usually ships 1-5 days
047 240-0418 Bushing $9.71 1 usually ships 1-5 days
