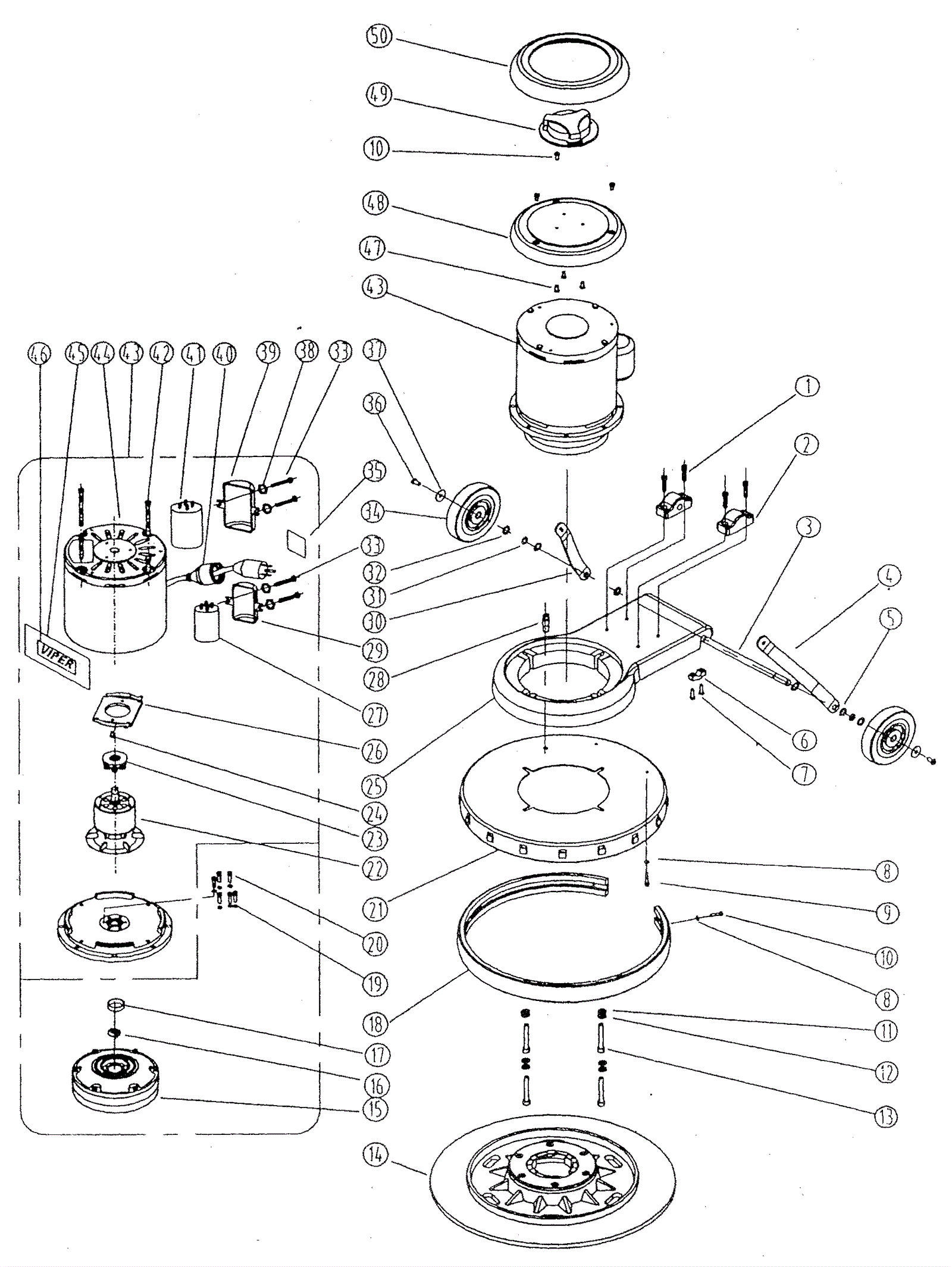

VENOM VN1720P Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-0843 Screw M6 x 30mm socket cap $9.98 usually ships 17-28 days
2 240-0261 Handle clamp block $11.57 usually ships 17-28 days
3 240-0844 Axle $19.89 ships same day
4a 240-0845 Left handle bracket $38.36 (after SN 1765) usually ships 17-28 days
5 240-0769 Washer M13 plain finish $10.98 ships same day
6 240-0310 Clamp lock $9.98 ships same day
7 240-0066 Screw M5 x 20 self tapping $9.98 ships same day
8 240-0068 Plain washer $9.98 ships same day
9 240-0636 Screw M5 x 20 $9.98 usually ships 1-5 days
10 240-0067 Screw M5 x 16mm $9.98 usually ships 17-28 days
11 240-0043 Plain washer $9.98 usually ships 17-28 days
13 240-0047 Screw M8 x 60 $9.98 usually ships 17-28 days
14a 240-0846 16 inch pad holder $118.65 ships same day
14b 240-0071 19 inch pad holder $168.09 ships same day
15 240-6584 Gear box $329.67 usually ships 17-28 days
16 240-0077 Coupling $16.50 ships same day
17 240-0078 Sleeve $9.98 usually ships 17-28 days
18a 240-0848 17 inch bumper $16.40 usually ships 17-28 days
18b 240-0847 20 inch bumper $16.50 usually ships 17-28 days
19 999-0876 Washer M6 split lock plain finish $0.99 ships same day
20 240-0080 Screw M5 x 30 hex socket $9.98 usually ships 17-28 days
21a 240-0853 17 inch shroud and bumper assembly $126.74 usually ships 17-28 days
21b 240-0850 20 inch shroud $93.46 usually ships 1-5 days
22 240-0081 Rotor with fan assembly (OBSOLETE) $107.23 usually ships 1-5 days
23 240-0857 Centrifugal switch $26.04 usually ships 17-28 days
25 240-0001 Aluminum motor base (OBSOLETE) $113.42 usually ships 17-28 days
26 240-0083 Stationary switch (OBSOLETE) $19.62 usually ships 17-28 days
27 240-0091 Running capacitor $48.18 ships same day
28 240-0074 Hose barb $9.98 usually ships 17-28 days
29 240-0859 Small capacitor mounting frame $20.35 usually ships 1-5 days
30a 240-0860 Right handle bracket $34.87 (after SN 1765) usually ships 17-28 days
31 240-0197 External retaining ring $9.98 ships same day
32 999-1346 Washer M12 flat stainless steel $0.99 ships same day
33 240-0861 Screw M5 x 8mm $9.98 usually ships 17-28 days
34 240-0198 5 inch wheel $36.32 ships same day
35 240-0110 Read manual decal $13.17 usually ships 17-28 days
36 240-0200 Screw M6-1 x 12mm $9.98 ships same day
37 240-0199 Washer M6 flat $9.98 ships same day
38 240-0186 Washer M5 star lock $9.98 ships same day
39 240-0862 Large capacitor mounting frame $21.42 usually ships 1-5 days
40 240-0262 Large female plug protector $9.98 usually ships 17-28 days
41 240-0090 Starting capacitor $48.18 ships same day
42 240-0865 Bolt assembly $9.98 usually ships 17-28 days
44 240-0866 110V 1.5HP motor $709.90 usually ships 17-28 days
45 240-0867 Motor decal $31.10 usually ships 17-28 days
46 240-0234 Viper logo $24.60 usually ships 17-28 days
47 999-1986 Screw M5-.8 x 14mm pan head phillips $0.99 ships same day
48 240-0868 Motor top cover $44.58 usually ships 17-28 days
49 991-2208 3 hole clutch plate (formerly 6 hole) $22.54 usually ships 13-21 days
