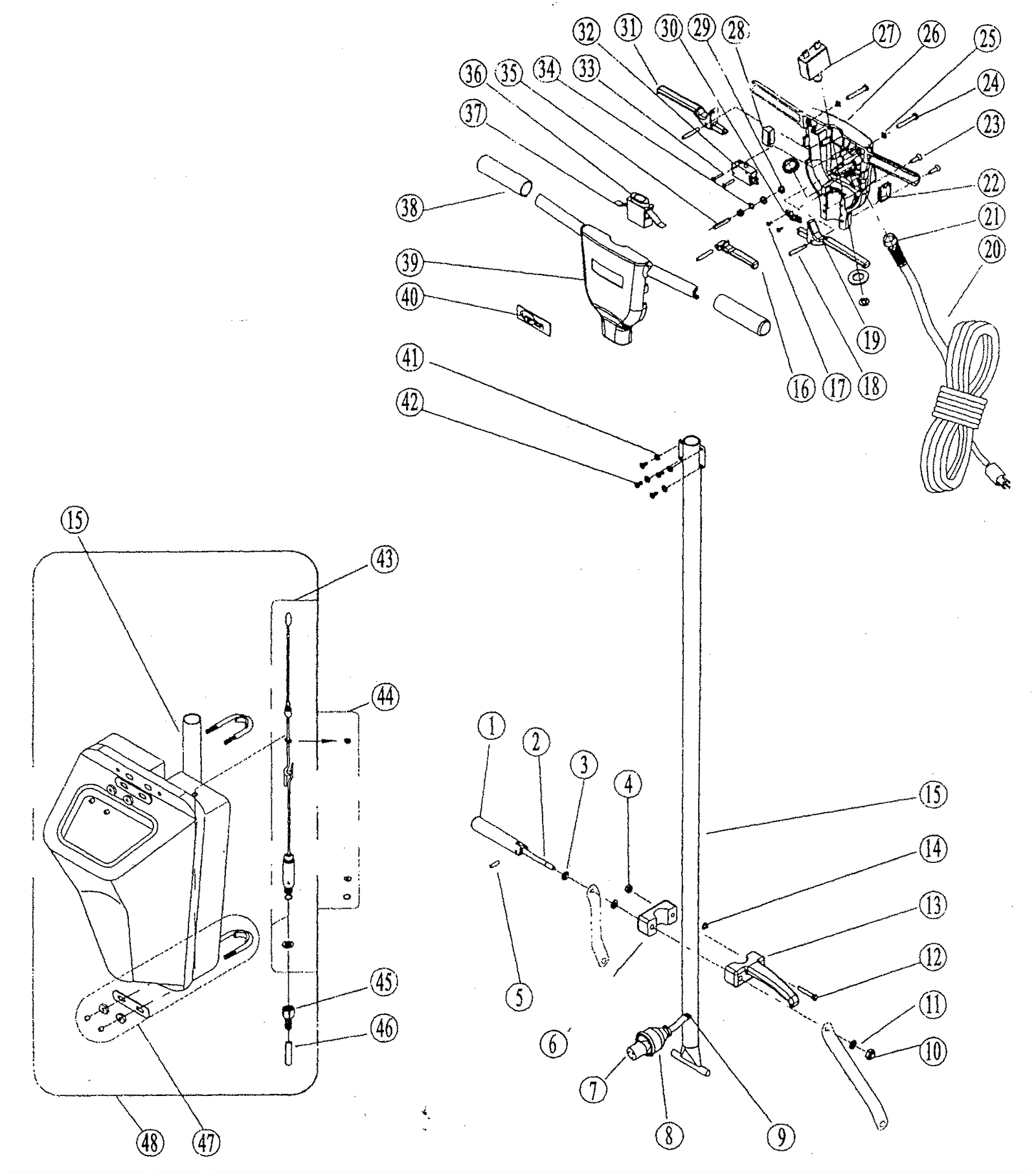

VENOM VN1720P Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 240-0267 Handle release $49.04 1 ships same day
2 240-6580 Handle release bolt (longer) $18.08 1 usually ships 17-28 days
3 240-0265 Handle release plain washer $9.98 2 ships same day
4 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 1 ships same day
5 240-0266 Handle release screw pin $9.98 1 ships same day
6 240-0259 HANDLE RELEASE HEAVY DUTY -VN $178.55 1 usually ships 17-28 days
7 240-0039 Handle cable $10.98 1 usually ships 17-28 days
8 240-0232 Small male plug protector $9.98 1 usually ships 17-28 days
9 240-0019 Grommet $9.98 1 usually ships 17-28 days
10 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
11 240-0205 Washer M10 plain $9.98 1 usually ships 17-28 days
12 999-1944 Screw M8-1.25 x 55mm hex head plain finish $1.42 1 ships same day
13 240-0259 HANDLE RELEASE HEAVY DUTY -VN $178.55 1 usually ships 17-28 days
14 240-0237 Screw M6 x 10 hex socket $10.98 1 usually ships 17-28 days
15 240-0870 Tube $51.21 2 usually ships 17-28 days
16 240-0871 Solution lever $23.01 1 usually ships 17-28 days
19 240-0872 Left trigger switch $16.50 1 usually ships 17-28 days
20 240-0105 14/3 power cord $97.09 1 ships same day
21 240-0106 Strain relief $23.56 1 ships same day
22 240-0184 Solution handle gasket $9.98 1 usually ships 17-28 days
23 272-8065 Screw M6 x 25 phillips stainless steel $9.98 2 usually ships 17-28 days
24 240-0111 Screw M6 x 40mm $9.98 2 ships same day
25 240-0185 Washer M6 star lock $9.98 2 ships same day
26 240-0271 Rear switch housing cover $136.44 1 usually ships 17-28 days
27 240-0114 Circuit breaker $19.98 1 usually ships 17-28 days
28 240-0182 Leveling cover $12.54 1 usually ships 17-28 days
29 240-0028 Nut M4 $9.98 3 usually ships 1-5 days
30 240-0103 Handle cable block $9.98 1 usually ships 17-28 days
31 240-0873 Right trigger switch $16.50 1 usually ships 17-28 days
32 272-8640 Switch $27.92 1 ships same day
34 N/A Not available Call for price 1 (Washer) usually ships 3-26 days
35 240-0117 Screw M4 x 30mm hex socket $9.98 1 usually ships 1-5 days
36 240-0112 Safety block $9.98 1 usually ships 17-28 days
37 240-0183 Safety block spring $9.98 1 usually ships 17-28 days
38 240-0269 Handle grip $18.15 2 usually ships 17-28 days
39 240-0268 Switch housing front cover $128.34 1 usually ships 17-28 days
40 240-0123 Viper logo decal $9.98 1 usually ships 17-28 days
41 240-0186 Washer M5 star lock $9.98 4 ships same day
42 999-1986 Screw M5-.8 x 14mm pan head phillips $0.99 4 ships same day
43 240-0127 Valve assembly, solution tank $87.21 1 usually ships 17-28 days
44 240-0126 Gasket/seal kit, solution tank $9.98 1 usually ships 17-28 days
45 240-0159 Tank end barb hose $9.98 1 usually ships 17-28 days
46 240-0075 Hose solution $9.98 1 usually ships 17-28 days
47 240-1138 Solution tank mounting kit $18.08 1 usually ships 17-28 days
48 209-2246 SOLUTION TANK ASSY $181.01 1 (includes 15 and 43-47) ships same day
