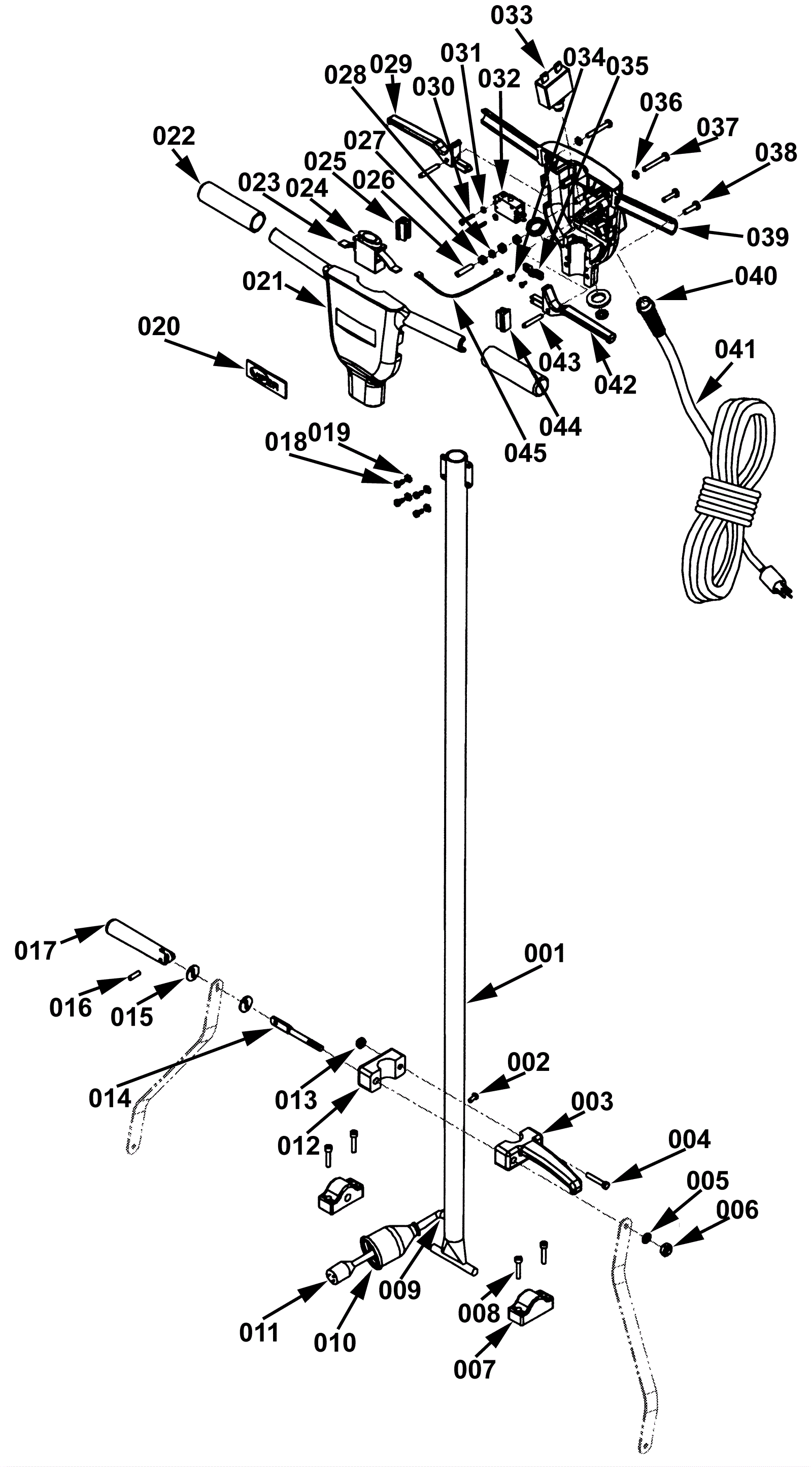

Handle Assembly SN 301 and above

#PartDescription ReqNotesAvailability
001 240-0236 Handle tube 1
002 240-0237 Screw M6 x 10 hex socket 1
003a 240-0259 2 piece cord hook kit (old style)
003b 240-2130 Hook (high speed) 1 (new style)
004 999-1944 Screw M8-1.25 x 55mm hex head plain finish 1
005 240-0205 Washer M10 plain 1
006 999-1120 Nut M10-1.5 nylon insert lock stainless steel 1
007 240-0261 Handle clamp block 2
008 240-0241 Screw M6 x 25 hex socket 4
009 240-0019 Grommet 1
010 240-0262 Large female plug protector 1
011 240-0039 Handle cable 1
012 240-0259 2 piece cord hook kit 1
013 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
014 240-0264 Handle release bolt (short) 1
015 240-0265 Handle release plain washer 2
016 240-0266 Handle release screw pin 1
017 240-0267 Handle release 1
018 999-1986 Screw M5-.8 x 14mm pan head phillips 4
019 240-0186 Washer M5 star lock 4
020 240-0123 Viper logo decal 1
021 240-0268 Switch housing front cover 1
022 240-0269 Handle grip 2
023 240-0183 Safety block spring 1
024 240-0112 Safety block 1
025 240-0182 Leveling cover 1
026 240-0117 Screw M4 x 30mm hex socket 1
027 240-0028 Nut M4 3
028 240-0116 Washer M4 external tooth 1
029 240-0270 Right switch trigger 1
031 240-0100 Internal tooth lock washer 2
032 240-0115 Circuit breaker 1
033 272-8640 Switch 1
035 240-0103 Handle cable block 1
036 240-0185 Washer M6 star lock 2
037 240-0111 Screw M6 x 40mm 2
038 272-8065 Screw M6 x 25 phillips stainless steel 2
039 240-0271 Rear switch housing cover 1
040 240-0106 Strain relief 1
041a 240-0105 14/3 power cord 1 (OEM)
041b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
042 240-0272 Trigger switch left 1
043 240-0118 Lever pin 2
044 240-0273 Solution lever cover 1
045 240-0101 Jump wire 1
