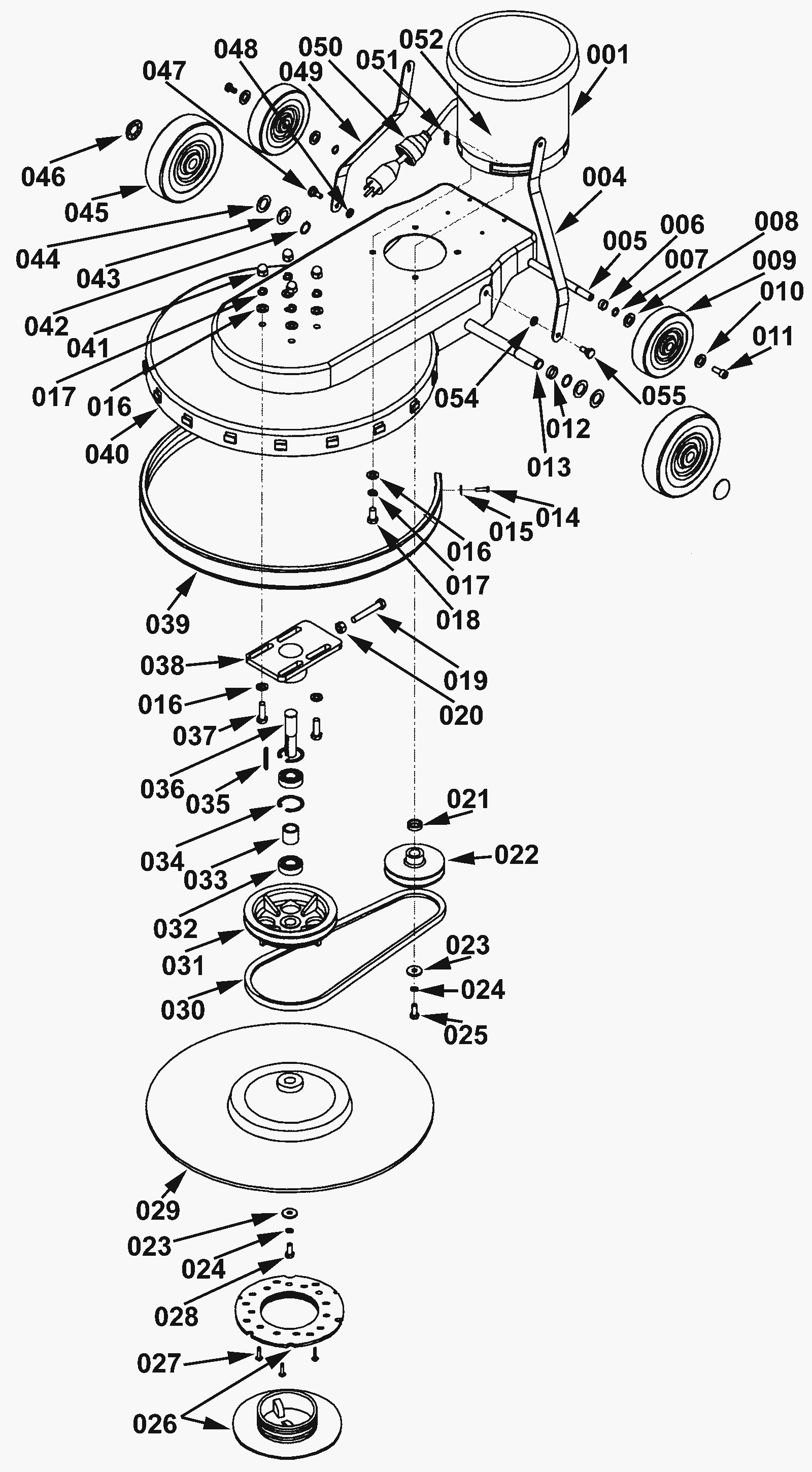

Base Assembly

#PartDescription ReqNotesAvailability
001b 240-6523 120V motor Clarke Pro 1500 1
001c 240-0191 Carbon brush 1 (Ultra Speed Pro 1500)
001d 240-0690 Rectifier 1 (Ultra Speed Pro 1500)
004a 240-0193 Left hand bracket 1 (VN1500 After SN 301)
004b 240-0258 Heavy duty handle release update kit 1 (VN1500 Before SN 301)
004c 240-0193 Left hand bracket 1 (Ultra Speed Pro 1500)
005a 240-0195 Transport axle 1 (VN1500)
005b 240-5613 Transport axle 1 (Ultra Speed Pro 1500)
006 240-0196 Transport wheel spacer 1
007 240-0197 External retaining ring 2
008 999-0806 Washer M12 wave zinc plated 2
009 240-0198 5 inch wheel 2
010 240-0199 Washer M6 flat 2
011 240-0200 Screw M6-1 x 12mm 2
012 240-0201 Drive pulley spacer 1
013a 240-0202 Front axle 1 (VN1500)
013b 240-5611 Front axle 1 (Ultra Speed Pro 1500)
014 240-0067 Screw M5 x 16mm 2
015a 240-0068 Plain washer 2 (VN1500)
015b 240-0068 Plain washer 2 (Ultra Speed Pro 1500)
016 240-0205 Washer M10 plain 12
017 240-0414 Washer M10 split lock stainless steel 8
018 240-0207 Screw 16G x 3/8 hex head 4
019 240-5383 Screw M10 x 65 hex head 1
020 240-0209 Nut M10 hex head 1
021 240-0201 Drive pulley spacer 1
022a 240-0211 Driving pulley 1 (VN1500)
022b 240-5610 Pulley 1 (Ultra Speed Pro 1500)
023 240-0212 Washer M8 x M30 x 5 plain 2
025 240-0366 Screw M10 x 65mm 1
026 991-2202 Big mouth pad holder set (blue) 1
027 240-0150 Screw M4 x 12 3
028 240-0216 Screw M8 x 30 1
029 240-0013 Pad driver 1
030a 240-0217 38 inch belt (OBSOLETE) 1 (VN1500)
030b 240-5393 Belt 1 (Ultra Speed Pro 1500)
031 240-0218 Drive pulley 1
032 240-0219 Bearing 2
033 240-0220 Bearing spacer 1
034 240-0221 Retaining ring 2
035 240-0222 Drive shaft key 1
036 240-0223 Drive shaft 1
037 240-0224 Screw M10 x 32 hex head 4
038 240-0225 Drive shaft mounting plate 1
039 240-0174 Bumper 1
040a 240-0226 Frame 1 (VN1500)
040b 240-5013 Frame 1 (Ultra Speed Pro 1500)
041 240-0227 Nut M10 cap 4
042 240-0060 Retaining ring M19 external 2
043 240-0061 Washer M19 2
044 240-0062 Washer M19 wave 2
045a 240-0063 Wheel 6.4 inch 2 (VN1500)
045b 240-1109 160mm wheel 2 (Ultra Speed Pro 1500)
046 240-0064 Axle cap 2
047 240-0228 Screw hex head for bracket 2
048 240-0229 Washer M8 x M16 plain 2
049a 240-0230 Right bracket 1 (VN1500 after SN 301)
049b 240-0258 Heavy duty handle release update kit 1 (VN1500 before SN 300)
049c 372-1268 Right hand bracket 2 (Ultra Speed Pro 1500)
050 240-0232 Small male plug protector 1
051 240-0233 Motor key (OBSOLETE) 1
052a 240-0234 Viper logo 1 (VN1500)
052b 240-0235 Silver label 1 (VN1500 and Ultra Speed Pro 1500)
052c 240-5656 Dry burnish decal 1 (Ultra Speed Pro 1500)
052d 240-5470 Clarke decal 1 (Ultra Speed Pro 1500)
054 240-0229 Washer M8 x M16 plain 2 (Ultra Speed Pro 1500)
055 240-0228 Screw hex head for bracket 2 (Ultra Speed Pro 1500)
N/S 240-5393 Belt 1
N/S 240-0065 Axle clamp block (Ultra Speed Pro 1500)
N/S 240-6520 Motor shaft key 1 (Ultra Speed Pro 1500)
N/S 240-0310 Clamp lock 2 (Ultra Speed Pro 1500)
N/S 240-0066 Screw M5 x 20 self tapping 8 (Ultra Speed Pro 1500)
